Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 6 Inch Front Lift, 6 Inch Rear Lift – K2337DL
$4,760.71
Fabtech Lift Kit Suspension, Dirt Logic 2.25 ™, 6 Inch Front Lift – K2337DL
Description

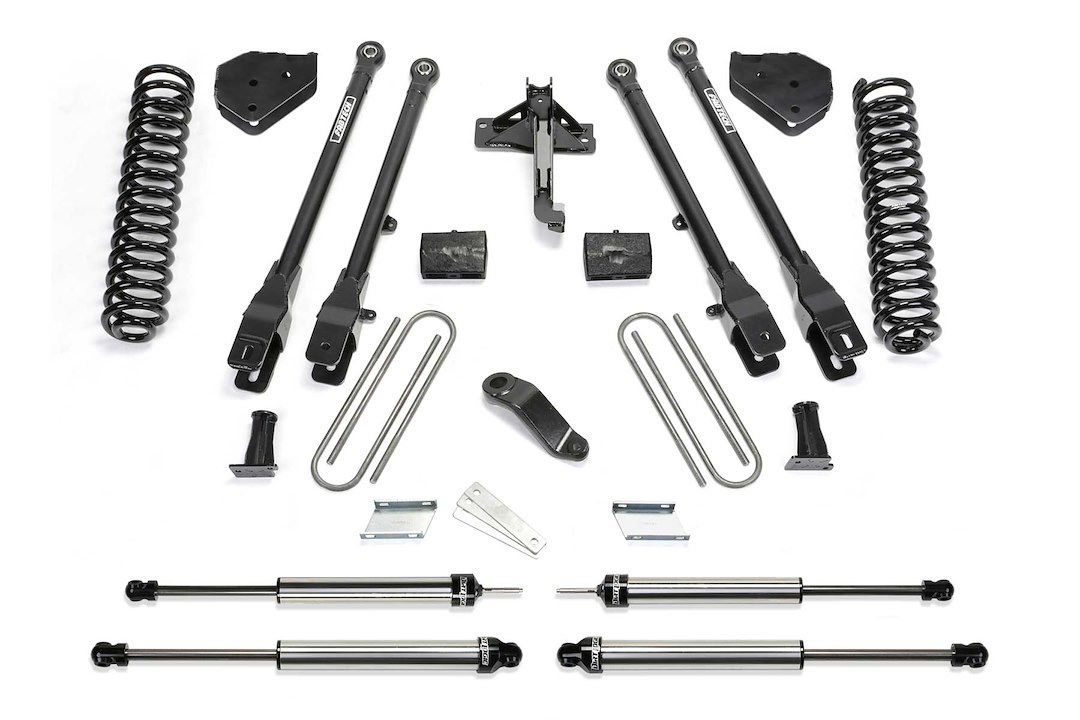

Lift Kit Suspension; Dirt Logic 2.25 ™; 6 Inch Front Lift; 6 Inch Rear Lift; With Front And Rear Dirt Logic 2.25 Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Four Link Conversion/ Front Coil Springs/ Rear Lift Blocks And U Bolts/ Pitman Arm/ Track Bar Bracket/ Front Stabilizer Bar Brackets/ Brake Line Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Geometry Of The 4 Link Arms And Frame Brackets Has Been Designed To Provide An Improved Highway Ride Due To Reduced Caster Change And Able To Tackle Rough Offroad Conditions
- Coil Springs Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Dropped Pitman Arm: Forged Steel Construction With High Strength Material
- Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Steel Rear Lift Blocks Replaces The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Sway Bar Link Ends To Fully Cycle Without Binding Throughout The Extended Travel Range
- Limited Lifetime Warranty
About Product:

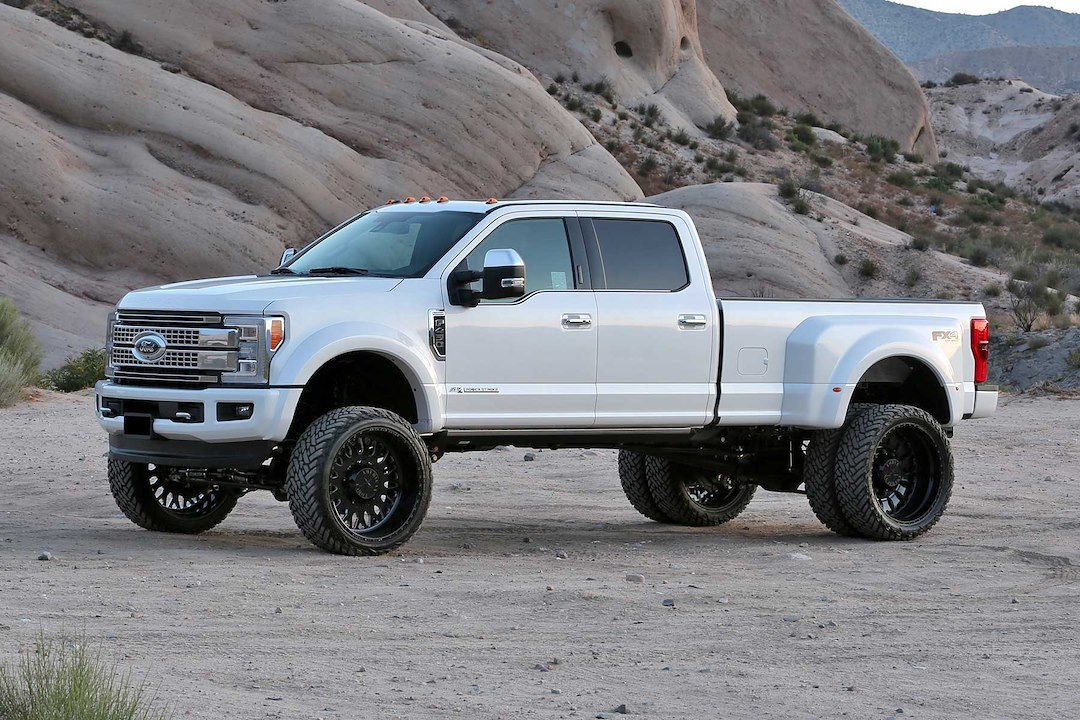

Fabtech’s 6 Inch 4 Link Conversion system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle’s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This system comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Fabtech’s 4 Link System has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly design suspension geometry is the pinnacle of Super Duty suspension systems.
Additional information
| Weight | 324.8 lbs |
|---|---|
| Dimensions | 45.5 × 14.5 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2337DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 95 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
