Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 3 Inch Front Lift, 3 Inch Rear Lift – K1210DL
$3,474.01
Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 3 Inch Front Lift – K1210DL
Description
Lift Kit Suspension; Dirt Logic 2.5 ™; 3 Inch Front Lift; 3 Inch Rear Lift; With Front Remote Reservoir Dirt Logic Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers In Kit; Black Components; With Front Upper Control Arms/ Rear Lift Blocks And U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 33 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Lift Blocks And U-Bolts
- Shock Type: Hydraulic And Nitrogen Gas Charged
- Wheel Backspacing (IN): 5
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Front Remote Reservoir Dirt Logic Coil Over Shock Absorbers/ Rear Dirt Logic Shock Absorbers
- Color: Black Components
Features & Benefits:
- Increased Ground Clearance
- Extended Range Upper Ball Joints Provide A Smooth Quiet Ride
- Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
- Suspension Can Be Restored To Stock
- Easy To Install
- Limited 5 Year Or 60,000 Mile Warranty
About Product:

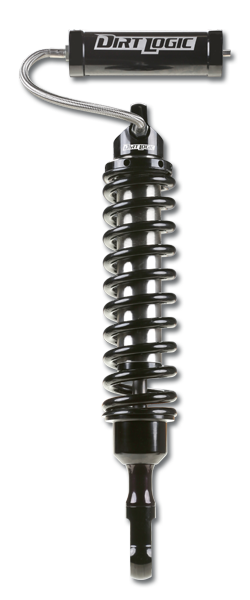

This quality Upper Control Arm system for your vehicle provides a 3 Inch increased ride height over stock without creating suspension bind at full droop. Lift is accomplished with spacers that utilizes the factory coilover shocks for a stock ride. The Fabtech Upper Control Arms address the geometry of the front suspension with the new ride height for proper align-ability. Heavy-Duty ball joints allow for extended travel to eliminate binding. Due to the GM suspension geometry there are no differential drop brackets required for the CV axles to operate properly. This 3 Inch system features the legendary stainless steel Dirt Logic 2.5 Coilover shocks. These Coilovers are built of the highest quality materials and will surpass all shocks in corrosion resistance due to the stainless steel body and NitroSteel ® piston rod. They will provide an outstanding ride quality both on and offroad. Rear lift comes from 1.5 Inch blocks and U-bolts with Dirt Logic 2.25 shocks for a balanced ride. Dirt Logic shocks are the only stainless steel body shock on the market that provide maximum corrosion resistance in harshest conditions.
Additional information
| Weight | 125.2 lbs |
|---|---|
| Dimensions | 35.75 × 22 × 8.75 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1210DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 74 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
