Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift, 3 Inch Rear Lift – K7077DL
$4,792.81
Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift – K7077DL
Description

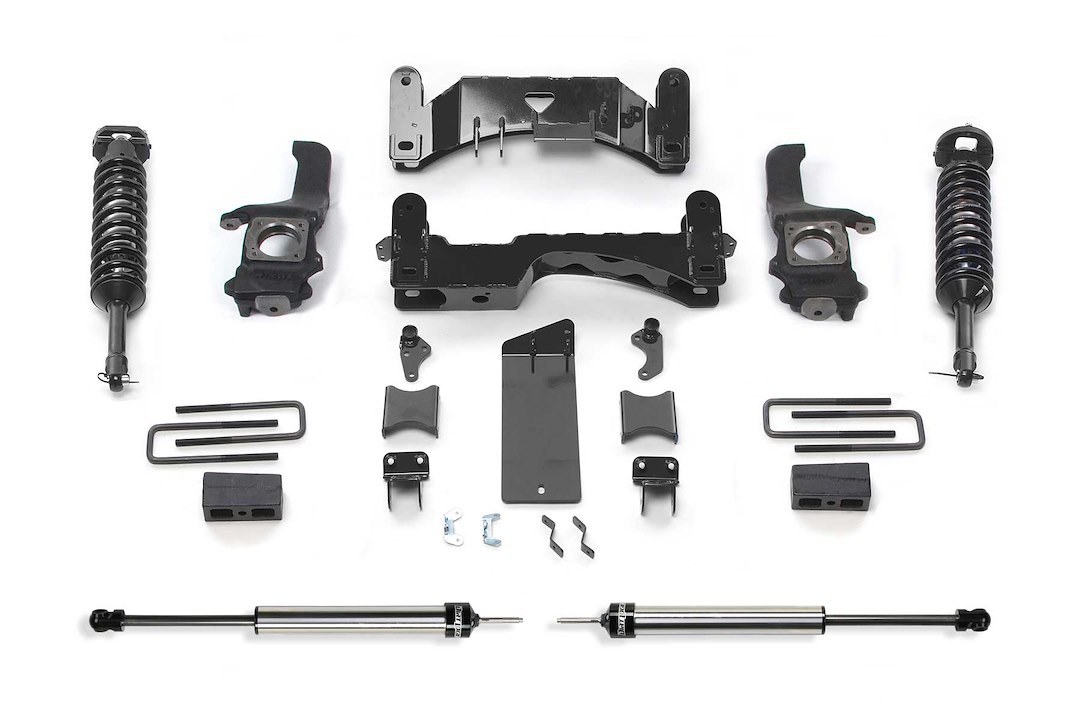

Lift Kit Suspension; Dirt Logic 2.5 ™; 4 Inch Front Lift; 3 Inch Rear Lift; With Front Dirt Logic 2.5 Coil Over Shock Absorbers Rear Dirt Logic 2.25 Shock Absorbers; Black Components/ Silver Shocks; With Front Steering Knuckles/ Front Coil Over Shock Absorber Mounts/ Cross Members/ Rear Leaf Spring Blocks And U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Leaf Spring Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Sway Bar Link Ends To Fully Cycle Without Binding Throughout The Extended Travel Range
- Limited Lifetime Warranty
About Product:
Fabtech’s Tundra lift kit provides a 4 Inch lift height on top of the factory 2 Inch lift for clearance of 35 Inch tall tires. Once a Tundra TRD PRO is lifted with a Fabtech 4 Inch lift kit, the truck will sit at the same height as a standard Tundra with a 6 Inch suspension and 35 Inch tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. The stainless steel Dirt Logic 2.5 Coilovers replace the TRD PRO Coilovers with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride.
Additional information
| Weight | 343.6 lbs |
|---|---|
| Dimensions | 45.5 × 16.25 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K7077DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 10 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
