Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift, 4 Inch Rear Lift – K1140DL
$4,199.25
Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift – K1140DL
Description
Lift Kit Suspension; Dirt Logic 2.5 ™; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Steering Knuckles/ Front and Rear Crossmembers/ Rear Lift Blocks/ U Bolts/ Skid Plate/ Tie Rod Ends/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Constructed Of A Stainless Steel Body With NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- 5 Inch Tall Steel Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:

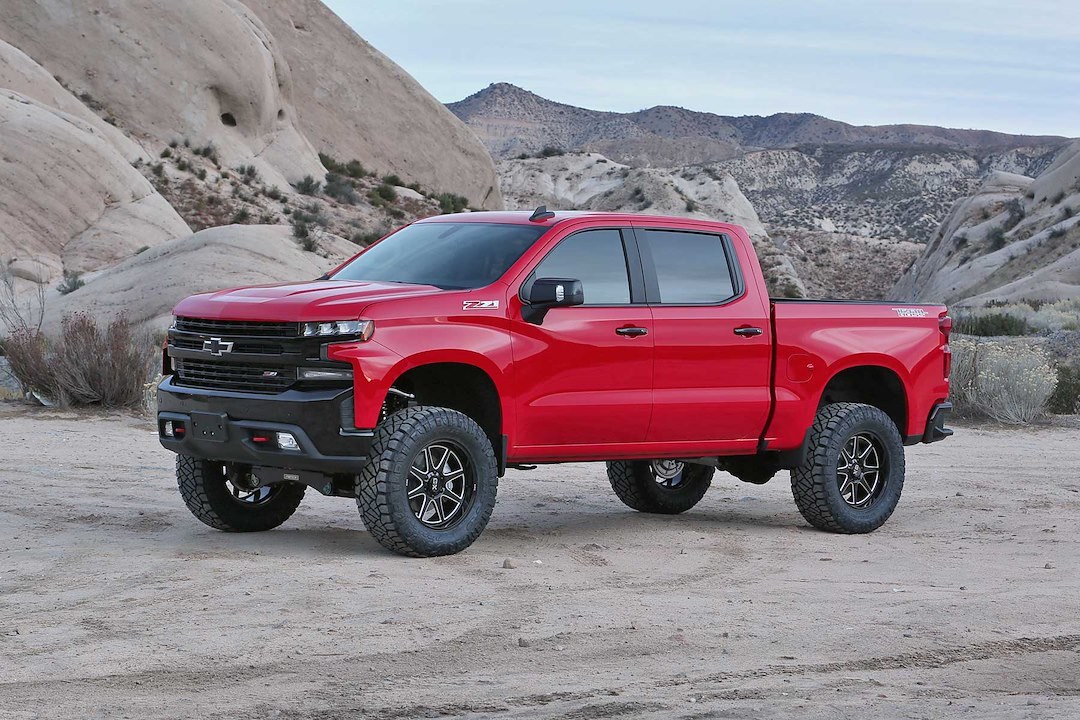

The Chevy Trail Boss and GMC AT4 both have a factory 2 Inch lift compared to other GM 1500 trucks of the same year model. Fabtech’s suspension system for these two trucks provide a 4 Inch lift height on top of the factory 2 Inch lift for clearance of 35 Inch tall tires. Once a Trail Boss or AT4 is lifted with a Fabtech 4 Inch system, the truck will sit at the same height as a 1500 with a 6 Inch suspension and 35 Inch tires. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers replace the Trail Boss or AT4 coilover with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride.
Additional information
| Weight | 289.4 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1140DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 20 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
