Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift, 4 Inch Rear Lift – K2388DL
$4,838.23
Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 4 Inch Front Lift – K2388DL
Description
Lift Kit Suspension; Dirt Logic 2.5 ™; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers; Black Components; With Front Spindles/ Crossmembers/ Tie Rods/ Front Differential Skid Plate/ Stabilizer Bar Mounts/ Rear Lift Blocks/ U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Front Dirt Logic Remote Reservoir Coil Over Shock Absorber And Rear Dirt Logic Shock Absorber
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers And Skid Plate
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Allows Use Of 33 Inch Or 35 Inch Tires
- ESC And Traction Control Compliant
- Stock Front Track Width Keeps Tires Under The Fenders
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- High Quality Severe Duty U-Bolts Are Designed To Attach The Entire Rear Differential To The Vehicle
- Steel Rear Lift Blocks Replaces The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Limited Lifetime Warranty
About Product:

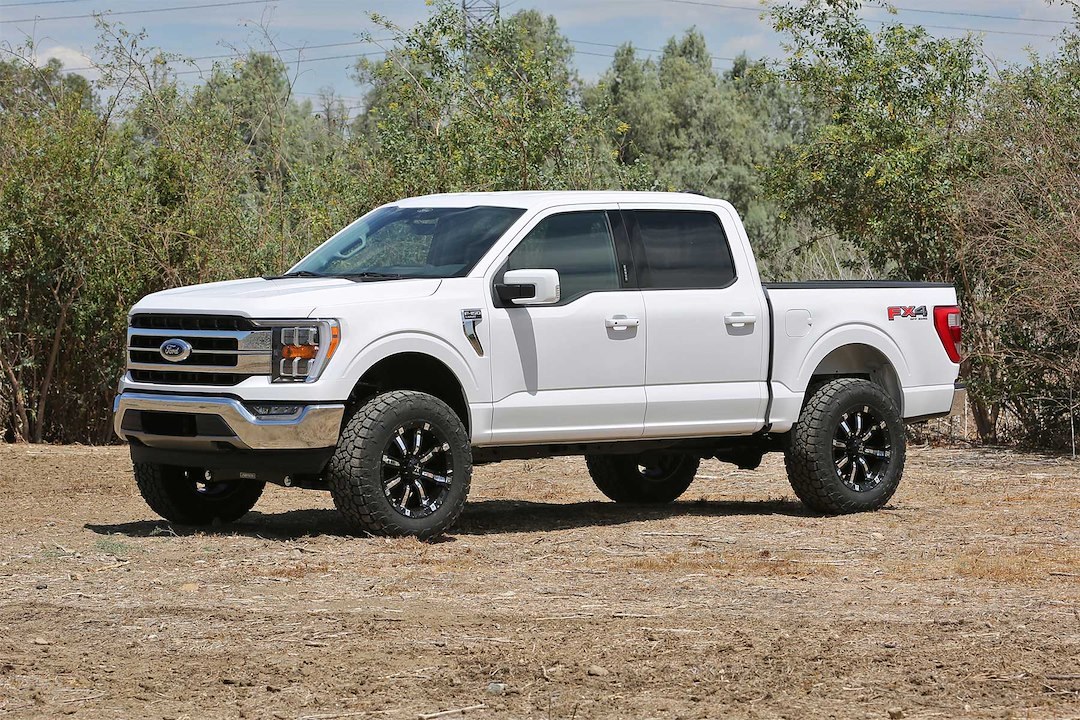

Fabtech’s 4 Inch F150 lift kit utilizes their proven heavy-duty construction and design features found in their 6 Inch systems but with less lift and at a lower price. This lift kit is a great choice for Ford owners that want to run a 35 Inch tires for a more aggressive look while preserving the excellent highway manners of the F150. Fabtech’s signature high arched lower control arm crossmembers are constructed of 1/4 Inch thick steel for maximum strength. There is a 1/4 Inch thick steel skid plate that spans between the lower crossmembers to protect the front differential housing from impacts of offroad obstacles. The heavy-duty ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. The front suspension receives the stainless steel Dirt Logic 2.5 Coilovers that will provide 4 Inch of lift with an outstanding ride quality both on and offroad. They have been extensively ride tuned for aggressive offroad use yet have a supple on road feel. The rear suspension utilizes lift blocks and longer u-bolts to help level the vehicle front to rear. Rear Dirt Logic 2.25 shocks will provide increased damping while providing a balanced ride front to rear in all driving conditions.
Additional information
| Weight | 289 lbs |
|---|---|
| Dimensions | 35.75 × 17.6 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2388DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 46 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
