Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 6 Inch Front Lift, 6 Inch Rear Lift – K3094DL
$4,405.88
Fabtech Lift Kit Suspension, Dirt Logic 2.5 ™, 6 Inch Front Lift – K3094DL
Description

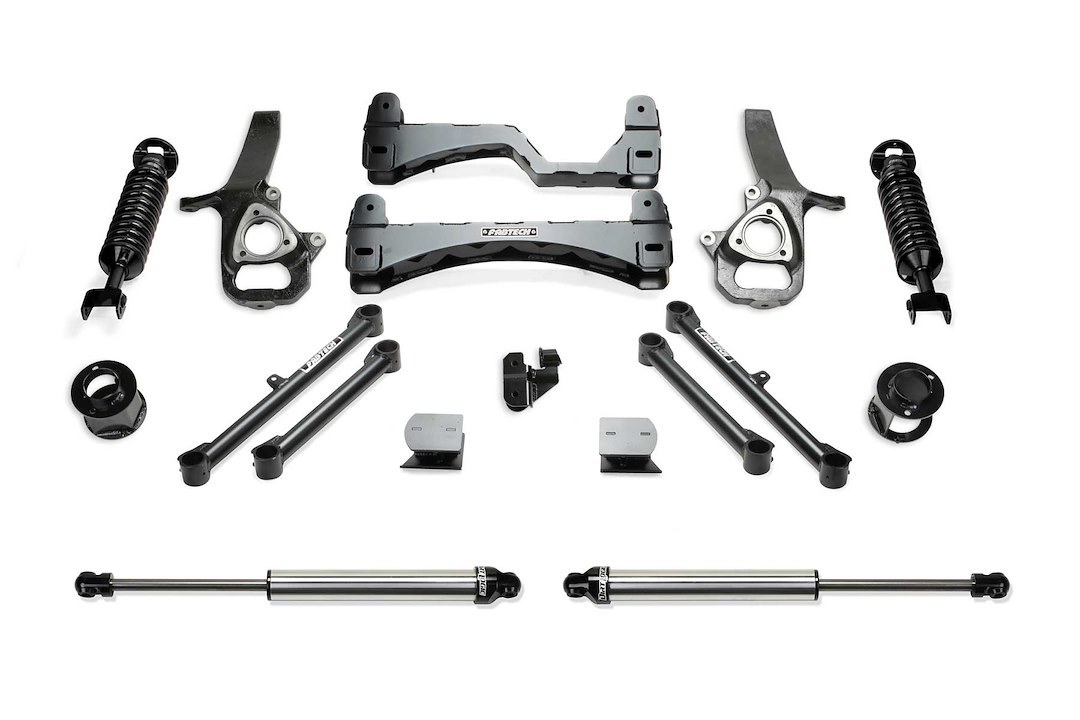

Lift Kit Suspension; Dirt Logic 2.5 ™; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic 2.5 Coilover Shock Absorbers And Rear Dirt Logic 2.25 Shock Absorbers; Black Components/ Silver Shock Absorbers; With Rear Coil Spring Spacers/ Crossmembers/ Steering Knuckles/ Rear Track Bar Bracket/ Stabilizer Bar Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 37 x 12.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 20
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Four Adjustable Alignment Cams Provide A Wide Range Of Adjustment
- Extended Length Ductile Iron Steering Knuckles Retain Near Stock Track Width Keeping The Tires Under The Fenders
- Constructed Of A Stainless Steel Body And NitroSteel ® Piston Rod These 6 Inch Lift Coilovers
- Heavy-Duty Drop Brackets Retain The Factory Link Ends At The Correct Angle For A Positive Road Feel Without Creating Binding At Full Droop
- Steel Rear Spring Spacers Utilize The Factory Coil Springs Retaining The Stock Load Carrying Capacity And Ride Comfort
- Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Limited Lifetime Warranty
About Product:
This system offers increased ride height utilizing the factory suspension components with heavy-duty bracketry. High quality Dirt Logic shocks are included to enhance the damping capacity of the vehicle for offroad use while providing a superior on road ride quality. The system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy-Duty 1/4 Inch thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for proper load capacity and a great highway ride.
Additional information
| Weight | 308 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K3094DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 58 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
