Fabtech Lift Kit Suspension, Dirt Logic, 4 Inch Front Lift, 1 Inch Rear Lift – K7053DL
$4,458.41
Fabtech Lift Kit Suspension, Dirt Logic, 4 Inch Front Lift – K7053DL
Description

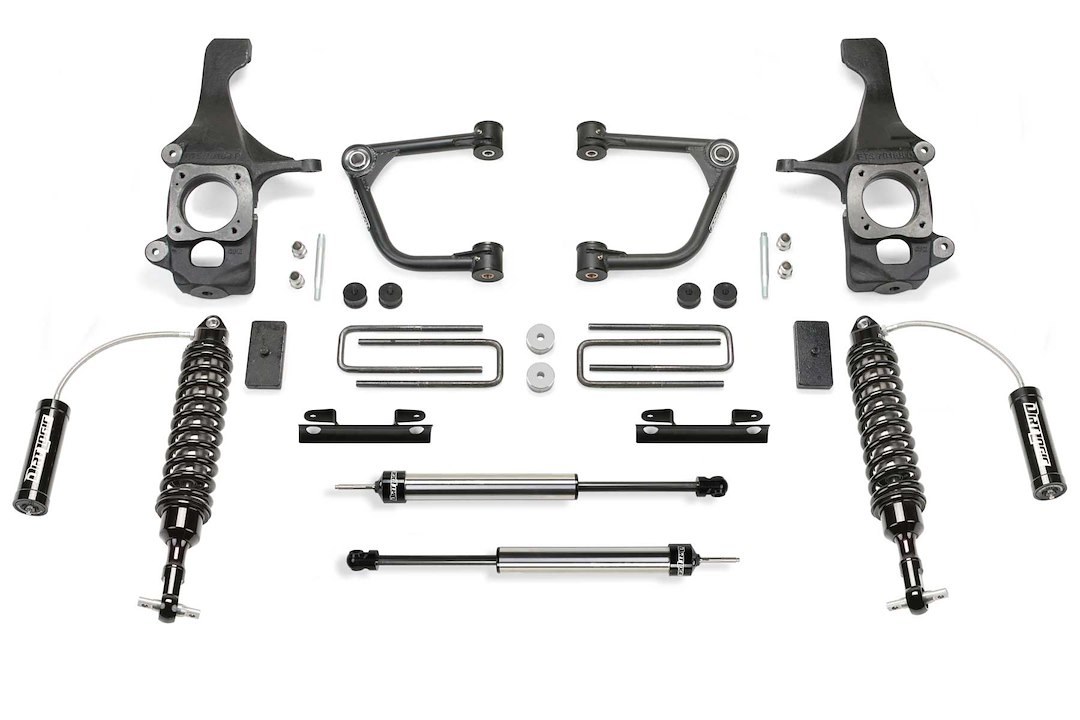

Lift Kit Suspension; Dirt Logic; 4 Inch Front Lift; 1 Inch Rear Lift; With Front Dirt Logic Coil Over Remote Reservoir Shock Absorbers And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Stainless Steel Shock Absorbers; With Tubular Uniball Upper Control Arms/ Knuckles/ Rear Lift Blocks/ U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 1 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Lift Blocks And U-Bolts
- Shock Type: Hydraulic And Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -13
- Shocks: With Front Dirt Logic Coil Over Remote Reservoir Shock Absorbers And Rear Dirt Logic Shock Absorbers
- Color: Black Components/ Silver Shocks
Features & Benefits:
- Heavy-Duty Extended Length Ductile Iron Steering Knuckles
- Replacement Upper Control Arms
- To Ensure Product Quality, Fabtech Builds All Of Its Componentry In House
- Ensure Products Will Fit Properly During Installation
- Limited Lifetime Warranty
About Product:
This 4 Inch System capitalizes on Toyota Tundra’s large wheelwell opening to allow use of 35 Inch tall tires with minimum lift height. The design of this 4 Inch System is a new style of suspension that delivers improved performance with fewer parts, and comes with an affordable price. The system includes replacement upper control arms constructed with 0.120 Inch wall 4130 Chromoly and 1 Inch FK Stainless Uniballs. Heavy-Duty extended length steering knuckles are included to provide proper functionality of the factory ESC (Electronic Stability Control) with 35 Inch tall tires. The knuckles retain the stock track width keeping the tires under the front fenders. The front differential is relocated to keep CV angles proper during the full range of travel. Front bump stop extensions and brake hose relocation brackets complete the front suspension. Rear lift comes from a 1 Inch lift block and u-bolt system to level the stance of the vehicle.
Additional information
| Weight | 198.6 lbs |
|---|---|
| Dimensions | 35.75 × 22 × 12.5 in |
| Brand | FABTECH |
| Manufacturer Part Number | K7053DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 114 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
