Fabtech Lift Kit Suspension, Dirt Logic, 6 Inch Front Lift, 5 Inch Rear Lift – K1194DL
$4,683.26
Fabtech Lift Kit Suspension, Dirt Logic, 6 Inch Front Lift – K1194DL
Description

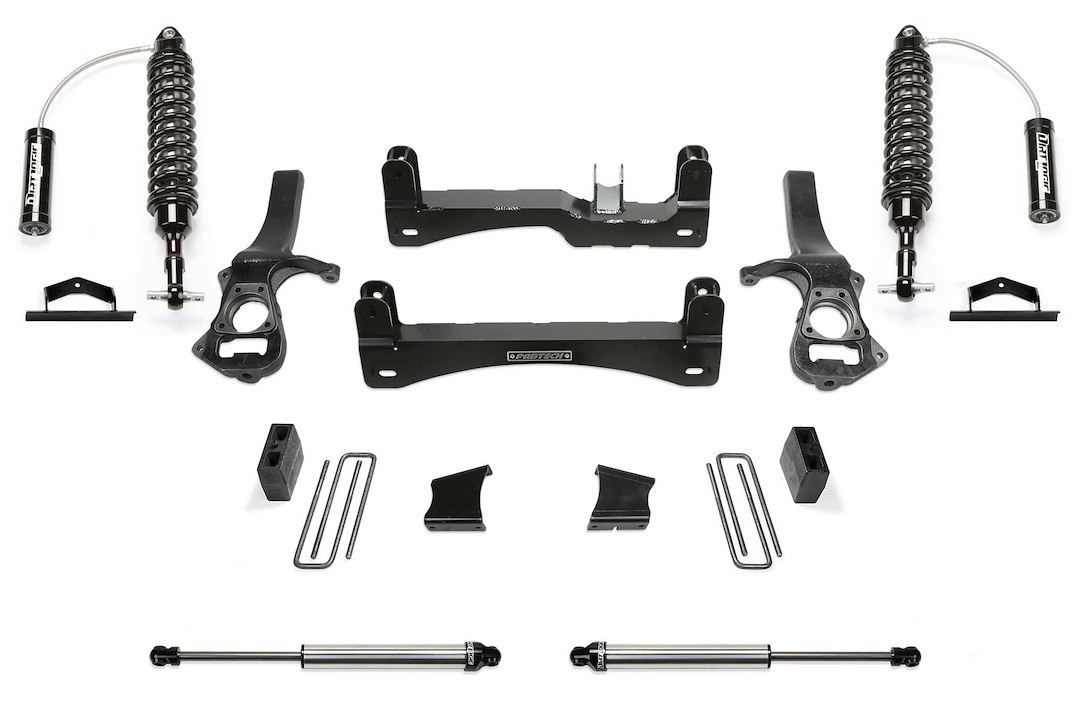

Lift Kit Suspension; Dirt Logic; 6 Inch Front Lift; 5 Inch Rear Lift; With Front Dirt Logic Remote Reservoir Coil Over Shock Absorbers and Rear Dirt Logic Shock Absorbers In Kit; Black Component; With Front Steering Knuckles/ Crossmembers/ Rear Lift Blocks And U Bolts/ Skid Plate/ Differential Mounts/ Tie Rods/ Rear Bump Stop Spacers/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Steering Knuckles
- Rear Lift Type: Blocks And U-Bolts
- Maximum Tire Size: 35 x 12.50
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6.35
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Crossmembers Are Arched For Maximum Ground Clearance And Provides Additional Strength To The Front Suspension
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- Oversized Tie Rods Are Provided To Replace The Stock Units That Are Designed To Handle Oversized Tires
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Heavy-Duty Front Differential Skid Plate Protects The Differential From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Differential For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- Billet Spacers Relocate The Factory Closed Cell Bump Stops To Control The Travel Eliminating Over Cycling Of The Suspension
- Rear Lift Blocks Replace The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- Limited Lifetime Warranty
About Product:
Fabtech’s world renowned IFS suspension design provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.
Additional information
| Weight | 309.4 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1194DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 24 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
