Fabtech Lift Kit Suspension, Dirt Logic, 6 Inch Front Lift, 6 Inch Rear Lift – K1133DL
$4,199.25
Fabtech Lift Kit Suspension, Dirt Logic, 6 Inch Front Lift – K1133DL
Description

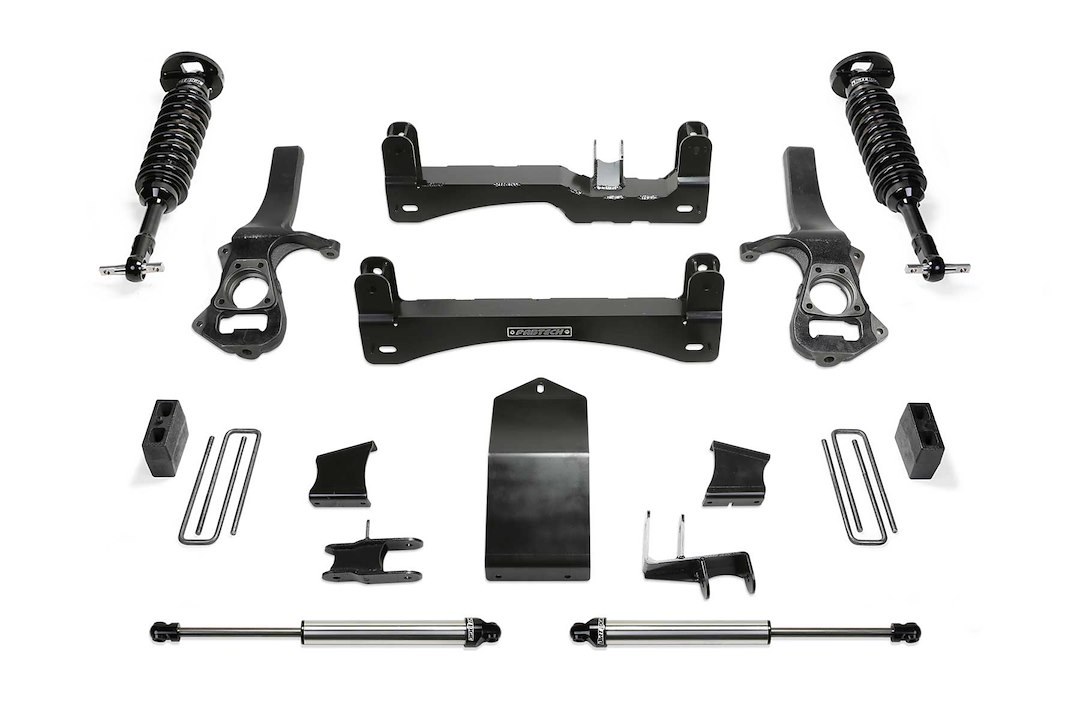

Lift Kit Suspension; Dirt Logic; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic Coil Over Shock Absorbers And Rear Dirt Logic Shock Absorbers In Kit; Black Components; With Crossmembers/ Front Differential Skid Plate/ Knuckles/ Rear Leaf Spring Block And U Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Blocks And U-Bolts
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Welded Box Design Of These Crossmembers Provides Additional Strength To The Front Suspension
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel; This Provides An Enhanced Driver Experience Compared To Stock
- 5 Inch Tall Steel Rear Lift Blocks Replaces The Factory Blocks For Additional Lift Without Changing The Ride Quality Or Load Carrying Capacity
- Limited Lifetime Warranty
About Product:
Fabtech’s world renowned IFS suspension design for the vehicle provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy-Duty 1/4 Inch thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The stainless steel Dirt Logic 2.5 Coilovers provide 6 Inch of lift with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride. Rear lift is accomplished with a 5 Inch Block and U-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling.
Additional information
| Weight | 289.4 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1133DL |
