Fabtech Lift Kit Suspension, Dirt Logic ™, 6 Inch Front Lift, 6 Inch Rear Lift – K2396DL
$5,674.83
Fabtech Lift Kit Suspension, Dirt Logic ™, 6 Inch Front Lift – K2396DL
Description
Lift Kit Suspension; Dirt Logic ™; 6 Inch Front Lift; 6 Inch Rear Lift; With Front And Rear Dirt Logic Remote Reservoir Coil Over Shock Absorbers In Kit; Black Components; With Steering Knuckles/ Shock Brackets/ Crossmembers/ Skid Plate/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Coil Over Shock Absorber
- Shock Type: Front And Rear Dirt Logic Remote Reservoir Coil Over Shock Absorbers
- Wheel Backspacing (IN): 4.5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Fabtech’s Extended Length Ductile Iron Steering Knuckles Provide Zero Bump Steer Throughout The Suspension Travel
- The Remote Aluminum Reservoir Dissipates Heat For Consistent Damping When Driving Over Extreme Terrain At High Speed
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Triple Differential Mounts Properly Reposition The Front Diff For The Precise CV And Driveshaft Angle To Reduce Driveline Vibration At High Speed
- 1/4 Inch Thick Steel Drop Brackets Reposition The Front Sway Bar For The Increased Ride Height
- Enhanced Driver Experience
- Stainless Steel Body
- Adjustable Coilover Construction
- Limited 5 Year Or 60,000 Mile Warranty
About Product:

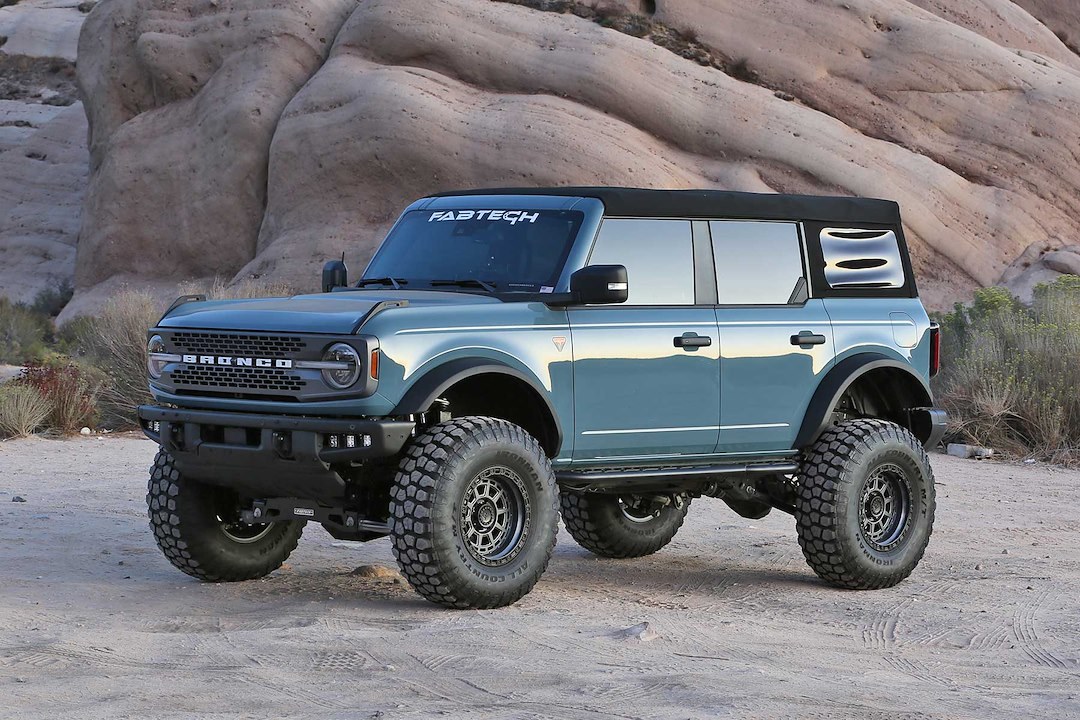

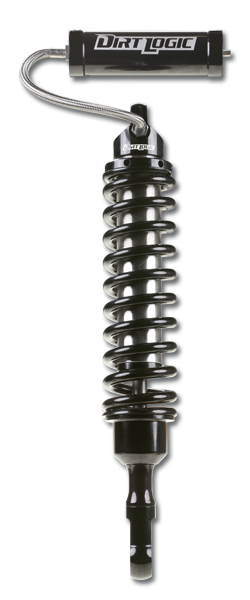

Fabtech’s 6 Inch Lift Kit for the Ford Bronco is built tough with 1/4 Inch thick steel for unbeatable strength. Designed to keep your 38 Inch or 40 Inch tires snug under the fenders while maintaining factory alignment, to ensure stability on any terrain. Skid plates add protection for the front differential and sway bar actuator, which means this kit is ready for adventure. The factory front and rear Coilover shocks are replaced by Dirt Logic 2.5 resi coilovers. The Dirt Logic 2.5 shocks feature a stainless steel body for maximum corrosion resistance. These shocks have been extensively ride tuned over thousands of miles in various on and offroad terrain to establish the finest overall ride quality. They will provide a superior ride compared to the factory coilover shocks. The front and rear Dirt Logic 2.5 coilovers deliver a balanced ride that driver and passengers will appreciate.
Additional information
| Weight | 331 lbs |
|---|---|
| Dimensions | 45 × 16 × 14 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2396DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 34 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
