Fabtech Lift Kit Suspension, Dirt Logic ™, 6 Inch Front Lift, 6 Inch Rear Lift – K3088DL
$5,187.34
Fabtech Lift Kit Suspension, Dirt Logic ™, 6 Inch Front Lift – K3088DL
Description

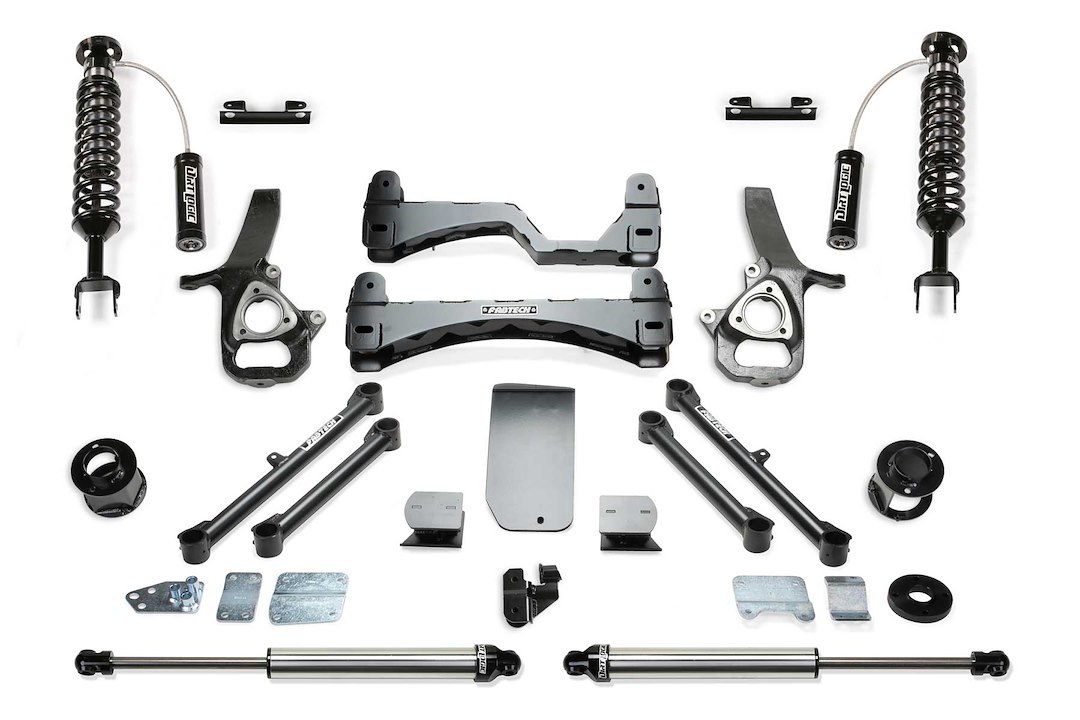

Lift Kit Suspension; Dirt Logic ™; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic 2.5 External Reservoir Coil Over Shock Absorbers And Rear Dirt Logic 2.25 Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Steering Knuckles/ Crossmembers/ Skid Plate/ Rear Coil Spring Spacers/ Four Link Kit/ Stabilizer Bar Brackets/ Rear Track Bar Bracket/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Shock Absorber
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 20
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- 1/4 Inch Thick Steel Lower Control Arm Crossmembers Are Arched For Maximum Ground Clearance
- Extended Length Ductile Iron Steering Knuckles Retain Near Stock Track Width Keeping The Tires Under The Fenders
- Constructed Of A Stainless Steel Body And NitroSteel ® Piston Rod These 6 Inch Lift Coilovers Are The Finest Quality On The Market
- Heavy-Duty Front Differential Skid Plate Is Constructed Of 1/4 Inch Thick Steel To Protect The Diff From Offroad Obstacles
- Steel Rear Spring Spacers Utilize The Factory Coil Springs Retaining The Stock Load Carrying Capacity And Ride Comfort
- Provides Excellent Damping For Offroad Use
- Limited Lifetime Warranty
About Product:

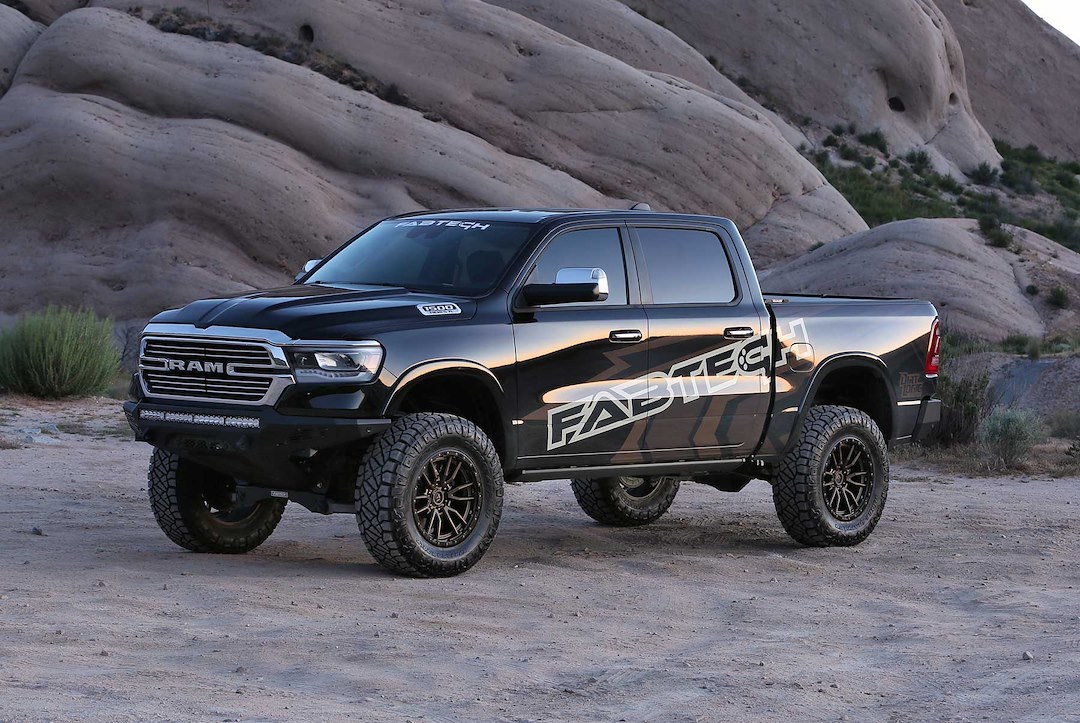

This system is a great choice for Ram 1500 owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy-duty bolt on bracketry that will provide years of trouble free service. The system features Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy-Duty 1/4 Inch thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride.
Additional information
| Weight | 325.6 lbs |
|---|---|
| Dimensions | 45.5 × 15.13 × 13.58 in |
| Brand | FABTECH |
| Manufacturer Part Number | K3088DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 58 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
