Fabtech Lift Kit Suspension, Dirt Logic SS, 3 Inch Front Lift, 3 Inch Rear Lift – K1063DL
$3,480.70
Fabtech Lift Kit Suspension, Dirt Logic SS, 3 Inch Front Lift – K1063DL
Description

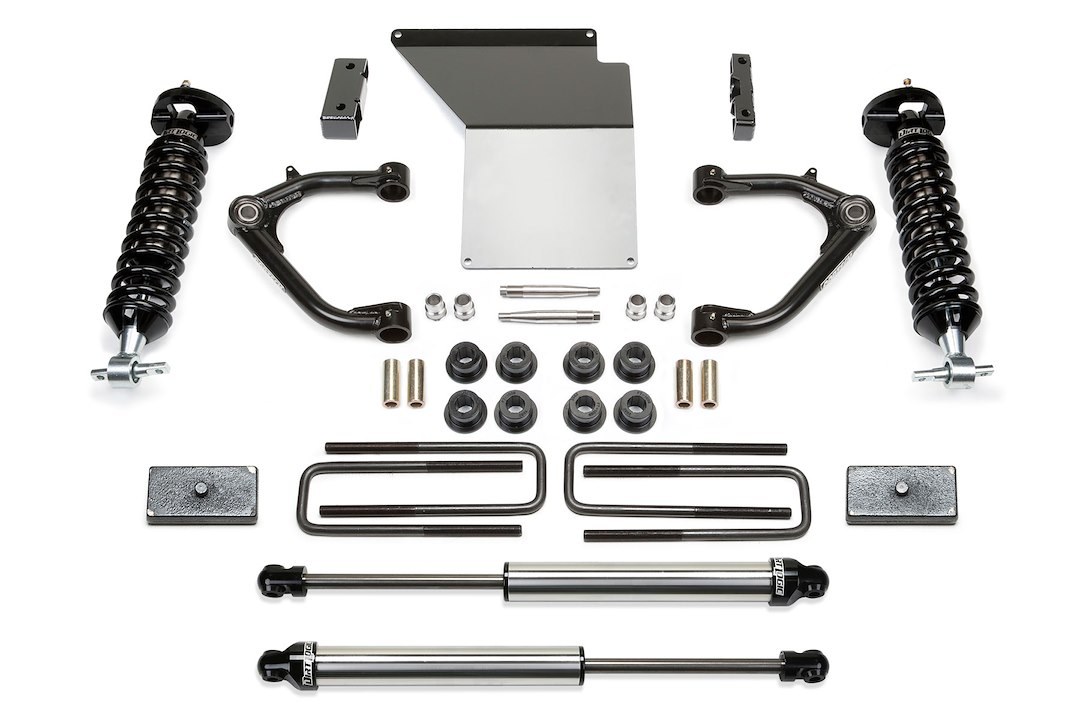

Lift Kit Suspension; Dirt Logic SS; 3 Inch Front Lift; 3 Inch Rear Lift; With Front Dirt Logic SS 2.5 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; Includes Front Uniball Upper Control Arms/ Differential Mounts/ Skid Plate/ Rear Blocks and U-Bolts/ Hardware Kit
Attributes:
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Block
- Maximum Tire Size: 30 x 11.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Best In Class System For Aggressive Offroad Use And Good Highway Ride
- Increased Ground Clearance
- Top Quality Uniball Upper Control Arms For Aggressive Offroad Use
- 1 Inch ID FK Uniballs With PTFE For Ultimate Strength
- Features Dirt Logic 2.5 Coilovers For Superior Damping
- Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
- Suspension Can Be Restored To Stock
- Limited Lifetime Warranty
About Product:
This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires on GM C/K1500s. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range. The arms are constructed of top quality material including 0.120 Inch wall 4130 Chromoly tubing with a 1.50 Inch Outer Diameter and 1 Inch FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.
Additional information
| Weight | 124.2 lbs |
|---|---|
| Dimensions | 45.5 × 14.5 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1063DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 1,090 vehicles.
