Fabtech Lift Kit Suspension, Dirt Logic SS, 4 Inch Front Lift, 4 Inch Rear Lift – K1070DL
$3,224.89
Fabtech Lift Kit Suspension, Dirt Logic SS, 4 Inch Front Lift – K1070DL
Description

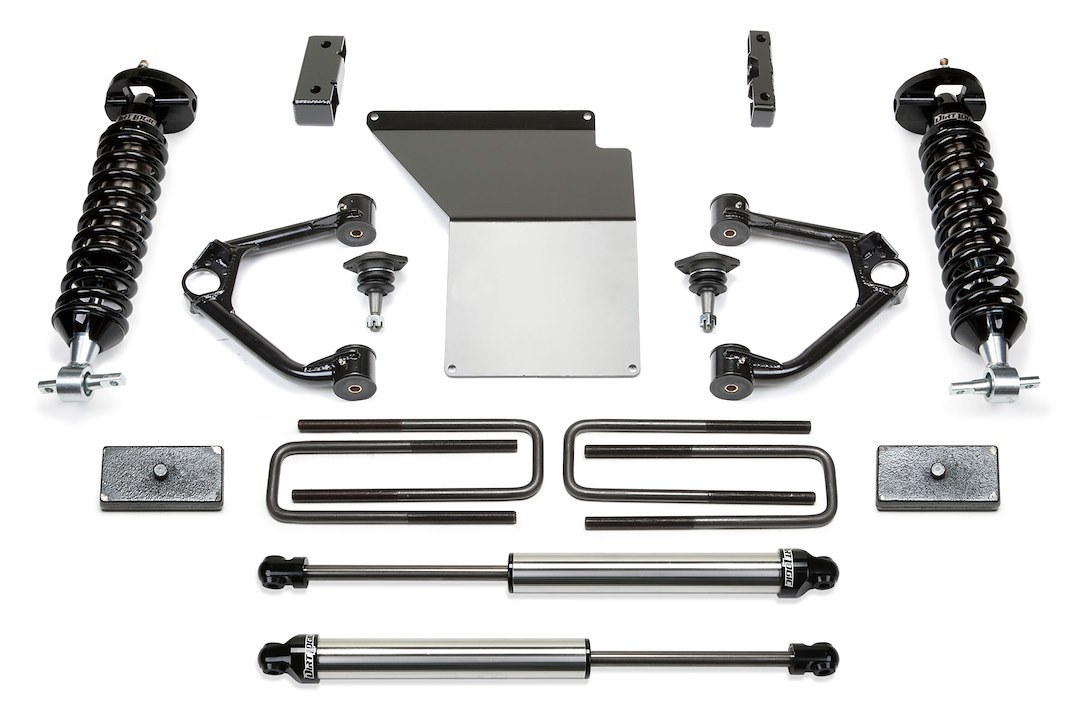

Lift Kit Suspension; Dirt Logic SS; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic SS 2.5 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; Includes Front Upper Uniball Control Arms/ Front Differential Mounts/ Front Differential Skid Plate/ Rear Blocks and U-Bolts/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 4 Inch
- Rear Lift Amount (IN): 4 Inch
- Front Lift Type: Coil Over Shock Absorber
- Rear Lift Type: Leaf Spring Block
- Maximum Tire Size: 30 x 11.50
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Value Priced System With Fabtech Quality
- Increased Ground Clearance
- Features Dirt Logic 2.5 Coilovers For Superior Damping
- Extended Range Upper Ball Joints Provide A Smooth Quiet Ride
- Increased Fender Clearance Compared To A Leveling Kit For 33 Inch Tall Tires
- Suspension Can Be Restored To Stock
- Easy To Install
- Limited Lifetime Warranty
About Product:
This system offers a mild lift height with easy installation for clearance of 33 Inch tall tires on K1500s with factory Aluminum suspension. Lift is accomplished with Dirt Logic 2.5 Coilovers that provide superior damping for aggressive offroad use and a good highway ride. The stock upper control arms are replaced with thick wall DOM tubular arms that feature heavy-duty extended range ball joints. These ball joints provide additional strength to the vehicles suspension compared to the factory. The front differential is relocated to keep CV angles proper with the new lift height while a 1/4 Inch thick steel skid plate provides protection against offroad obstacles. Rear lift is accomplished with 1-1/2 Inch rear lift block and u-bolts to help level the stance of the vehicles. Dirt Logic 2.25 rear shock absorbers replace the stock units for increased damping for both on and offroad use.
Additional information
| Weight | 124.2 lbs |
|---|---|
| Dimensions | 45.5 × 14.5 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1070DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 446 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
