Fabtech Lift Kit Suspension, Dirt Logic SS, 5 Inch Front Lift, 5 Inch Rear Lift – K4178DL
$5,762.60
Fabtech Lift Kit Suspension, Dirt Logic SS, 5 Inch Front Lift – K4178DL
Description

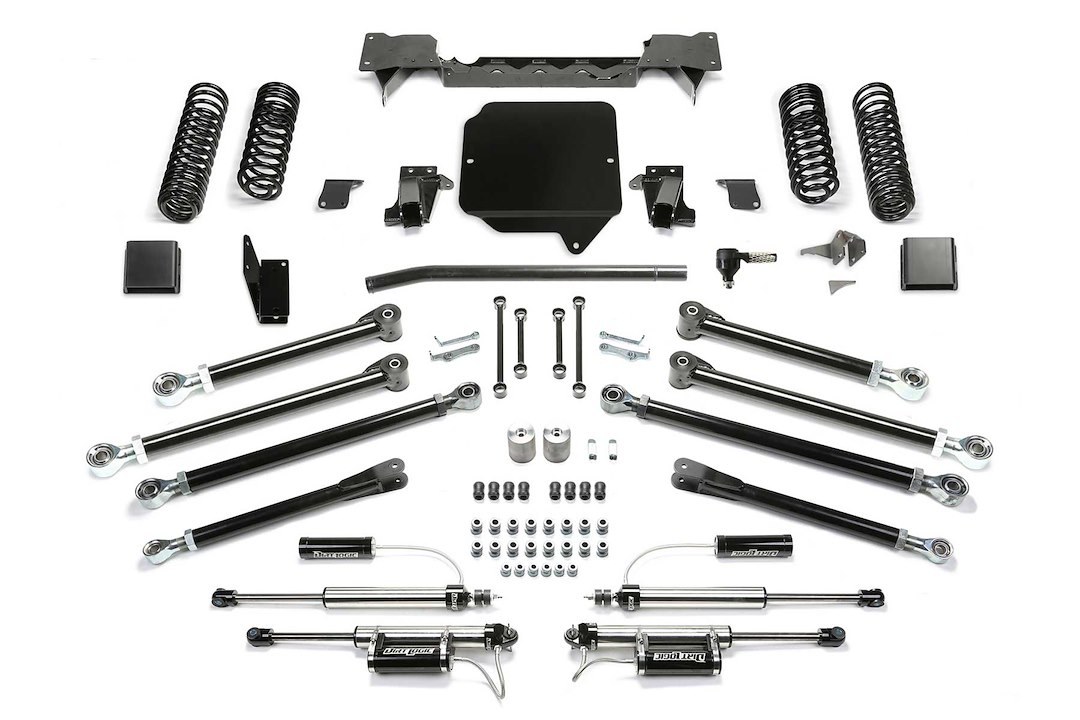

Lift Kit Suspension; Dirt Logic SS; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Dirt Logic Remote Reservoir Shock Absorbers In Kit; Black Components; With Front And Rear Coil Springs/ Front And Rear Lower Control Arms/ Stabilizer Bar Links/ Bump Stop Spacers/ Drag Link Flip/ Front And Rear Track Bar Brackets/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Maximum Tire Size: 37 x 12.50 Stock Fenders/ 40 x 12.50 High Clearance Fenders
- Front Lift Type: Coil Springs And Lower Control Arms
- Rear Lift Type: Coil Springs And Lower Control Arms
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components
Features & Benefits:
- Corner Specific Dual Rate Coils Springs Provide A Level Stance Side To Side And Offer Factory Load Carrying Capacity With A Smooth Ride
- Proper Factory Bushing Cross Bolt Angles Are Parallel On Fabtech Short Arm Link Arms Eliminating Premature Bushing Wear Resulting In Poor Handling
- Providing Increased Suspension Travel For Offroad Use
- Front Lower Shock Mount Reposition The Front Shocks, So They Function Without Interference Of Suspension Components Or The Axle With The Increased Articulation
- Dirt Logic Shocks Constructed Of A Stainless Steel Body With A NitroSteel ® Piston Rod For Maximum Corrosion Resistance And Durability
- Extended Length Front And Rear Sway Bar Links With Urethane Bushings Reposition The Bars To Work Within The Factory Operating Planes
- Front And Rear Bump Stop Extensions Keep The Suspension From Over Cycling With The Increased Ride Height Preventing Damage To Steering And Suspension Parts
- Limited Lifetime Warranty
About Product:
A key part of the Crawler kit is the Link Arm geometry and ground clearance. The location of the of the link arms is critical in providing superior handling throughout the travel range. Fabtech has found the Gladiator’s sweet spot geometry for the link arms that provide a superior driving long arm system compared to all others on the market. Front link arms are mounted to a full width crossmember that spans frame rail to frame rail. This crossmember is key in not only in mounting the Links arms at the correct geometry but it adds critical strength to the Gladiator frame for hard offroad use. Adjustable rear links utilize the factory frame and axle brackets for an easy installation. The Fabtech lower Link Arms are massive and built of 2 Inch Outer Diameter 0.313 thick wall tubing that is guaranteed not to bend. Upper and lower Link Arms includes the Fabtech’s legendary 5 Ton Joints ® that come with lifetime guarantee of never wearing out. They are superior for offroad use with a smooth quiet operation on the street.
Additional information
| Weight | 399 lbs |
|---|---|
| Dimensions | 49.5 × 21.5 × 8.5 in |
| Brand | FABTECH |
| Manufacturer Part Number | K4178DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 20 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
