Fabtech Lift Kit Suspension, Performance System, 5 Inch Front Lift, 5 Inch Rear Lift, With Front and Rear Performance Shock Absorbers – K3066
$1,590.83
Fabtech Lift Kit Suspension, Performance System, 5 Inch Front Lift – K3066
Description

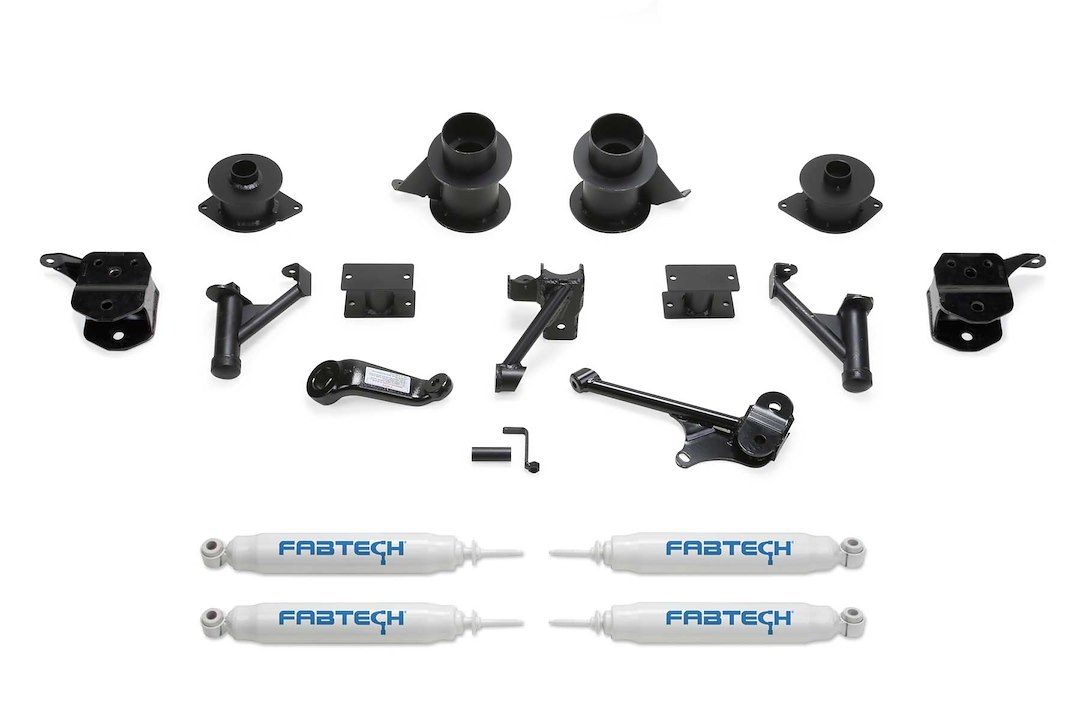

Lift Kit Suspension; Performance System; 5 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Performance Shock Absorbers; Black Components/ White Shock Absorbers; With Front And Rear Coil Spring Spacers/ Radius Arm Relocation Brackets/ Front And Rear Track Bar Brackets/ Front Bump Stop Extensions/ Hardware
Attributes:
- Front Lift Amount (IN): 5 Inch
- Rear Lift Amount (IN): 5 Inch
- Front Lift Type: Coil Spring Spacer
- Rear Lift Type: Coil Spring
- Maximum Tire Size: 37 x 13.50
- Shock Type: Hydraulic
- Wheel Backspacing (IN): 5.00
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 0
- Shocks: With Shocks In Kit
- Color: Black Components/ White Shock Absorbers
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
- Limited Lifetime Warranty
About Product:
This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts. The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature as Chrysler designed the bow to aid in their unique alignment specs and ride quality. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact. A Fabtech exclusive on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech steel extensions. The factory Radius Arms are relocated with heavy-duty 1/4 Inch thick steel brackets for proper caster with the 5 Inch lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height.
Additional information
| Weight | 114.7 lbs |
|---|---|
| Dimensions | 34.5 × 17.6 × 11.1 in |
| Brand | FABTECH |
| Manufacturer Part Number | K3066 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 416 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
