Fabtech Lift Kit Suspension, Sport II, 3 Inch Front Lift, 3 Inch Rear Lift, With Front and Rear Dirt Logic 2.25 Shock Absorbers IN Kit – K4163DL
$2,124.95
Fabtech Lift Kit Suspension, Sport II, 3 Inch Front Lift – K4163DL
Description

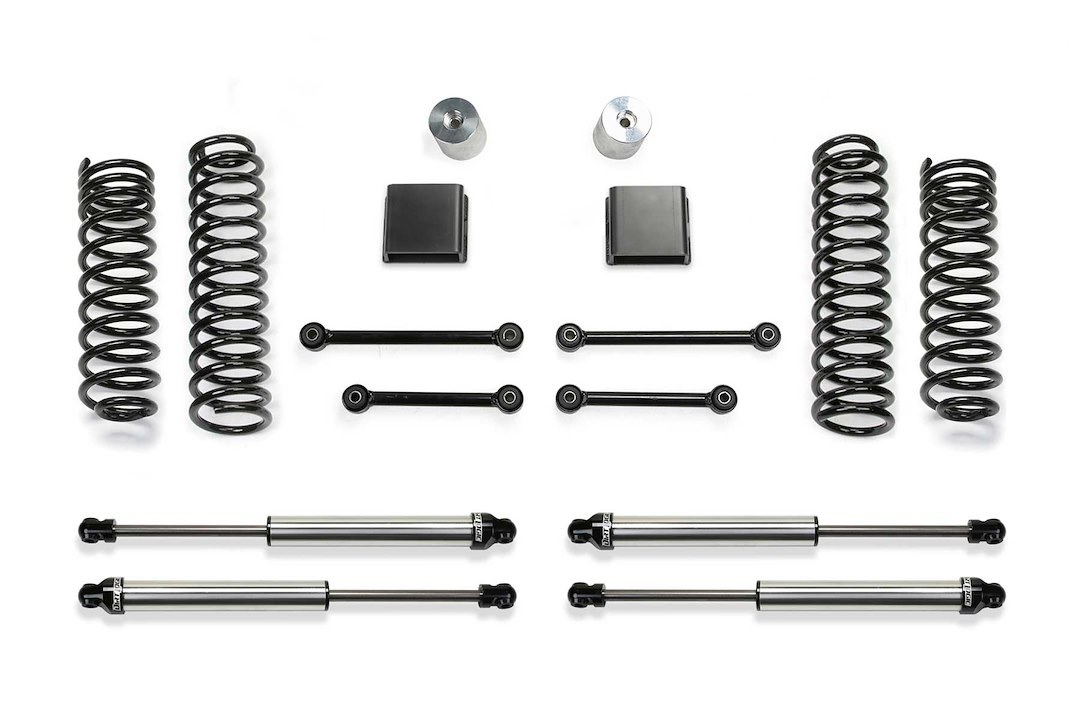

Lift Kit Suspension; Sport II; 3 Inch Front Lift; 3 Inch Rear Lift; With Front And Rear Dirt Logic 2.25 Shock Absorbers In Kit; Black Components/ Silver Shocks; With Front And Rear Coil Springs/ Stabilizer Bar Links/ Bump Stop Spacers/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 3 Inch
- Rear Lift Amount (IN): 3 Inch
- Maximum Tire Size: 37 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Coil Spring
- Shock Type: Hydraulic/ Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.50
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): -12.7
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Made Front And Rear Coil Springs That Are A Dual Rate Design Allowing Extended Suspension Travel For Offroad Use While Providing A Smooth Highway Ride
- First Stage Of The Spring Provides A Soft Ride With The Ability To Extend For Additional Travel
- Second Stage Is Designed To Handle The Payload Of The Vehicle And Address Large Impact Absorption At Higher Speeds
- Stainless Steel Dirt Logic Shocks Will Provide Additional Damping Capacity For Offroad Use With A Supple On Road Ride Quality
- Limited Lifetime Warranty
About Product:
This Sport II lift kit is Fabtech’s most popular Gladiator system providing increased ride height and suspension performance at a great price. Installation is easy and can be installed in a couple hours. The Sport II features front and rear coil springs that are a dual rate design allowing extended suspension travel for offroad use while providing a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the Gladiator and address large impact absorption at higher speeds. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. The stainless steel Dirt Logic shocks will provide additional damping capacity for offroad use with a supple on road ride quality. This Gladiator lift kit is an excellent choice for the Jeep enthusiast that wants to run larger tires with enhanced offroad capability and a good highway ride.
Additional information
| Weight | 131.2 lbs |
|---|---|
| Dimensions | 32 × 13.5 × 13.25 in |
| Brand | FABTECH |
| Manufacturer Part Number | K4163DL |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 20 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
