Fabtech Lift Kit Suspension, Stealth, 8 Inch Front Lift, 8 Inch Rear Lift, With Front and Rear Stealth Shock Absorbers IN Kit – K2266M
$4,203.01
Fabtech Lift Kit Suspension, Stealth, 8 Inch Front Lift – K2266M
Description

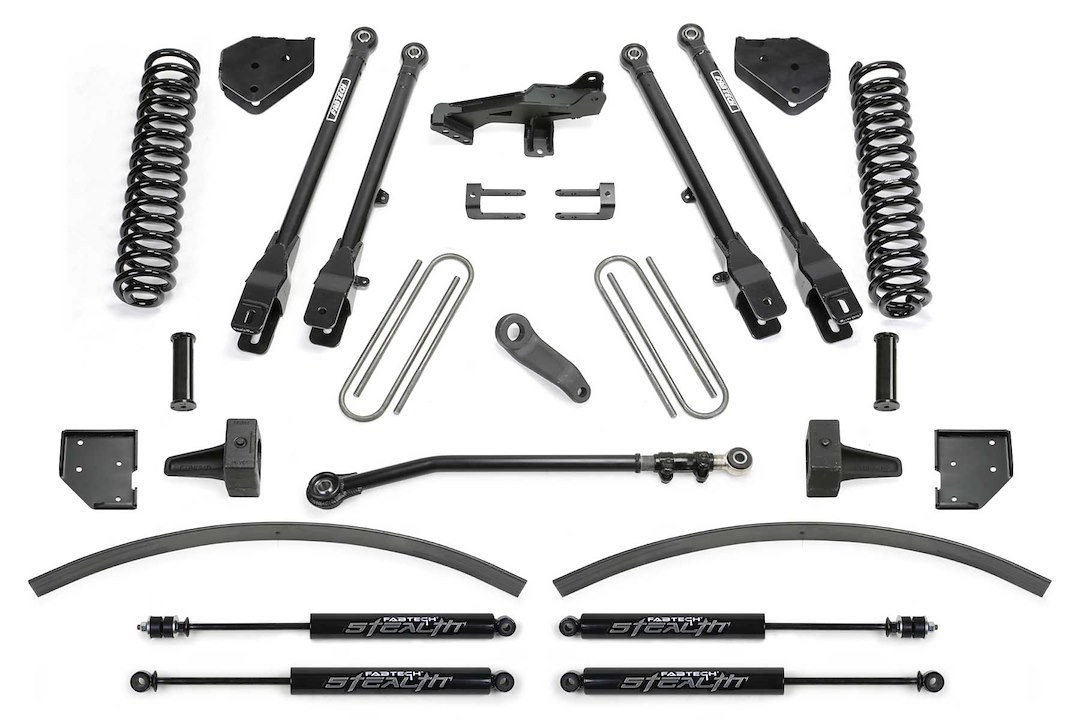

Lift Kit Suspension; Stealth; 8 Inch Front Lift; 8 Inch Rear Lift; With Front and Rear Stealth Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Springs/ 4-Link Kit/ Track Bar Bracket/ Pitman Arm/ Front Bump Stops/ Stabilizer Bar Brackets/ Brake Line Brackets/ Steering Stabilizer Brackets/ Rear Lift Blocks/ Add-A-Leafs and U-Bolts/ Installation Hardware; Requires Driveshaft
Attributes:
- Front Lift Amount (IN): 8 Inch
- Rear Lift Amount (IN): 8 Inch
- Maximum Tire Size: 40 x 15.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Add-A-Leaf/ Blocks/ U-Bolts
- Shock Type: Nitrogen Gas Charged
- Wheel Backspacing (IN): 4.75
- Minimum Wheel Diameter: 18
- Wheel Offset (MM): -6
- Shocks: With Shocks In Kit
- Color: Black Components/ Silver Shock Absorbers
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
- Limited Lifetime Warranty
About Product:
Fabtech’s 8 Inch 4 Link Conversion System for the Ford Super Duty is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy-duty 4 Link components for increased strength and functionality. The system will provide less caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Unique to this 8 Inch system is Fabtech’s extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this exclusive system that offers proper steering performance. Fabtech’s extended length Track Bar is 4 Inch longer than stock and is offset to the driver side with a stout 1/4 Inch thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires with 4-3/4 Inch BS wheels. Fabtech’s 4 Link System has been proven in over 10 years of service in rugged commercial and military applications to ensure long life on your daily driven vehicle. High quality components with properly designed suspension geometry makes this Super Duty system the pinnacle of all suspensions.
Additional information
| Weight | 361.4 lbs |
|---|---|
| Dimensions | 43.5 × 12.5 × 8.04 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2266M |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 160 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
