Fabtech Lift Kit Suspension, Stealth Series, 6 Inch Front Lift, 4 Inch Rear Lift, With Front and Rear Stealth Shock Absorbers – K1045M
$3,199.49
Fabtech Lift Kit Suspension, Stealth Series, 6 Inch Front Lift – K1045M
Description

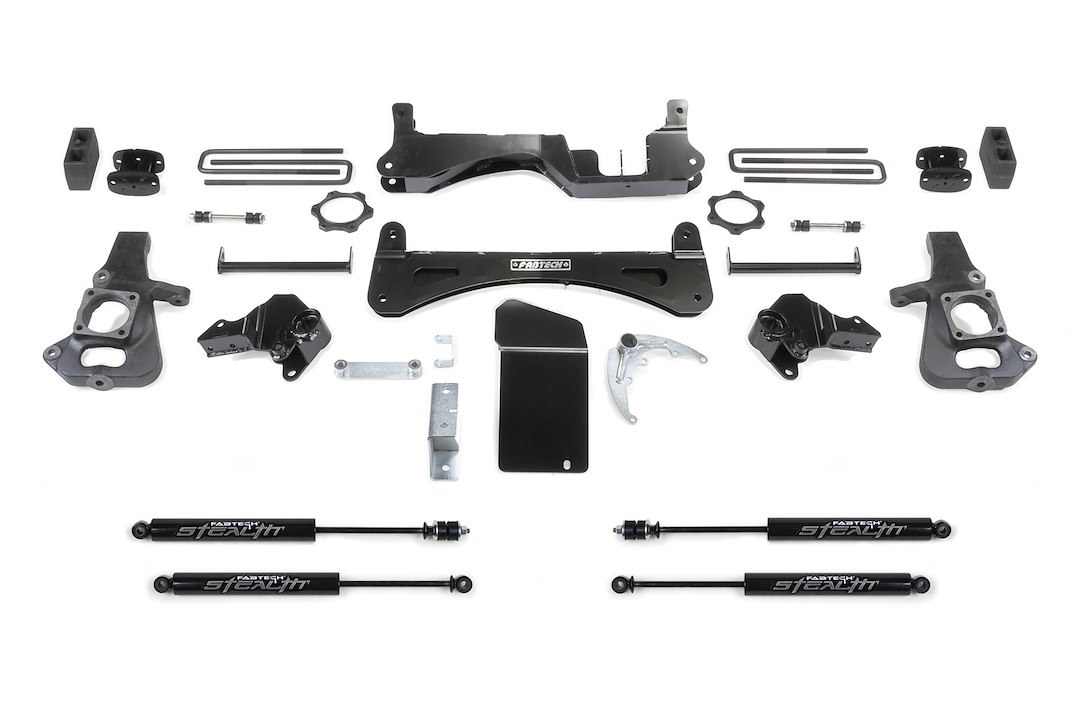

Lift Kit Suspension; Stealth Series; 6 Inch Front Lift; 4 Inch Rear Lift; With Front And Rear Stealth Shock Absorbers; Black Components/ Black Shock Absorbers; Includes Driver and Passenger Spindles/ Front And Rear Crossmembers/ C.V. Spacers/ Sway Bar Links/ 4 inch Lift Blocks/ Differential Brackets/ All Necessary Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 4 Inch
- Maximum Tire Size: 35 x 12.50
- Front Lift Type: Torsion Bar Key
- Rear Lift Type: Leaf Spring Block
- Shock Type: Gas Charged
- Wheel Backspacing (IN): 4.62
- Minimum Wheel Diameter: 16
- Wheel Offset (MM): 3
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Features & Benefits:
- Provide A Superior Ride Quality Both On And Off-Road
- Ultimate In Suspension Performance
- Made In USA
- Fast And Trouble-Free Installation
- Limited Lifetime Warranty
About Product:
The all new RTS ® (Raised Torsion Suspension) system utilizes patent pending torsion bar brackets that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there is no torsion bars hanging down to become high centered on or damaged when offroading. The RTS ® system has been designed with unitized bracketry reducing the installation time and providing increased strength. Our signature high arched crossmembers are constructed of 1/4 Inch thick steel and feature tubular cross braces with a 1/4 Inch thick steel front differential skid plate. The construction of the crossmembers, using 1/4 Inch thick steel, is an important part of this system. Only 1/4 Inch thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly. Fabtech has performed rigorous on and offroad testing of this new RTS ® system to establish the proper bump stop engagement, torsion bar location and shock valving for a superior performing suspension system. This industry leading system rewrites how an IFS suspension system should function for ultimate offroad use with great highway manners.
Additional information
| Weight | 267.6 lbs |
|---|---|
| Dimensions | 45.5 × 22 × 13 in |
| Brand | FABTECH |
| Manufacturer Part Number | K1045M |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 534 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
