Fabtech Lift Kit Suspension, Stealth Series, 6 Inch Front Lift, 6 Inch Rear Lift, With Front and Rear Stealth Shock Absorbers IN Kit – K2413M
$2,344.01
Fabtech Lift Kit Suspension, Stealth Series, 6 Inch Front Lift – K2413M
Description

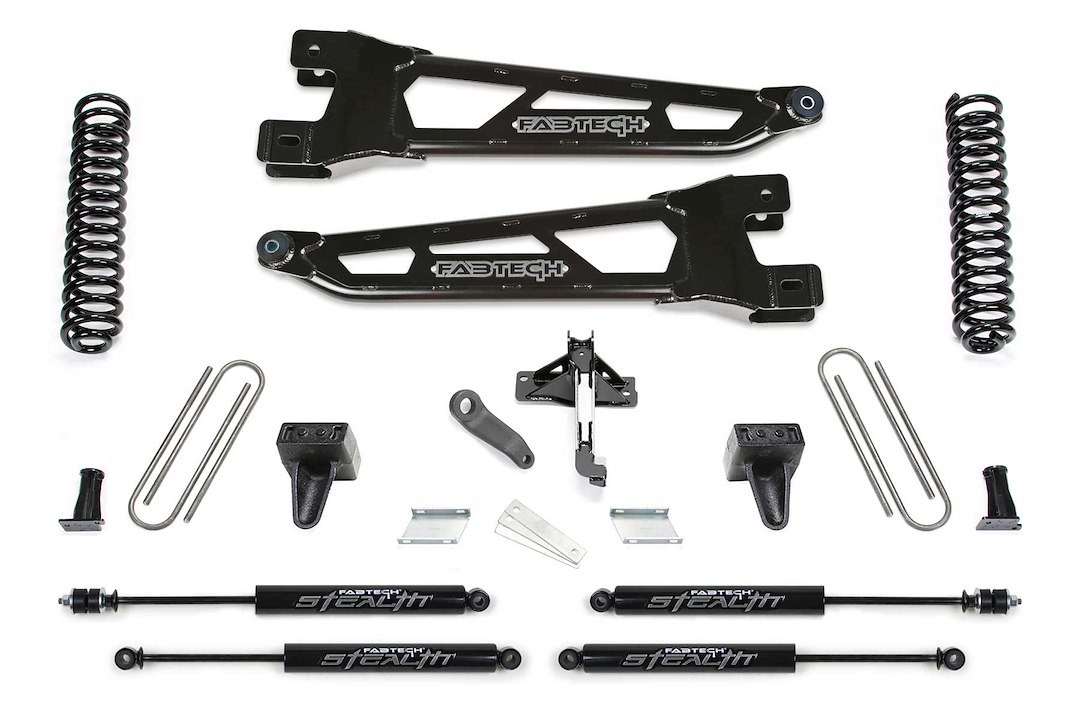

Lift Kit Suspension; Stealth Series; 6 Inch Front Lift; 6 Inch Rear Lift; With Front And Rear Stealth Shock Absorbers In Kit; Black Components/ Black Shock Absorbers; With Front Coil Springs/ Rear Lift Blocks/ Radius Arms/ Track Bar Bracket/ Pitman Arm/ Installation Hardware
Attributes:
- Front Lift Amount (IN): 6 Inch
- Rear Lift Amount (IN): 6 Inch
- Maximum Tire Size: 40 x 12.50
- Front Lift Type: Coil Spring
- Rear Lift Type: Lift Blocks And U-Bolts
- Shock Type: Monotube
- Wheel Backspacing (IN): 5
- Minimum Wheel Diameter: 17
- Wheel Offset (MM): 12.5
- Shocks: With Shocks In Kit
- Color: Black Components/ Black Shock Absorbers
Features & Benefits:
- Forged Steel Construction With High Strength Material
- Hot Wound Coils Have Been Designed For A Very Compliant Ride Quality Both On And Offroad
- Super Stout Box Style Bracket Is Designed To Eliminate Deflection When The Track Bar Moves Through Its Full Cycle
- Redesigned Tubular Construction And Side Plate Provide Superior Strength And Modern Aggressive Look
- Enhanced Steering Functionality
- Re-Positions The Factory Brake Lines Down On The Frame For The New Travel Range Without Having To Open The Brake System
- Cast Iron Rear Lift Blocks With An Integrated Bump Stop Replace The Stock Blocks
- U-Bolts Designed To Attach The Entire Rear Differential To The Vehicle
- 1/4 Inch Thick Steel Drop Brackets Re-Position The Front Sway Bar For The Increased Ride Height
- Limited 5 Year Or 60,000 Mile Warranty
About Product:

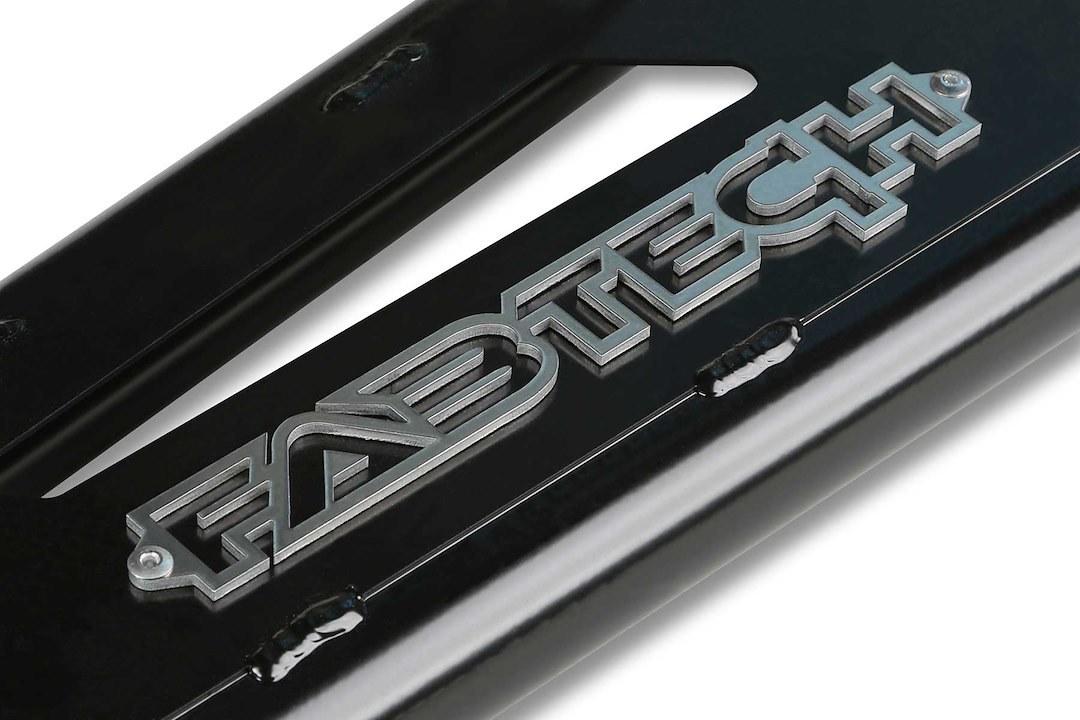

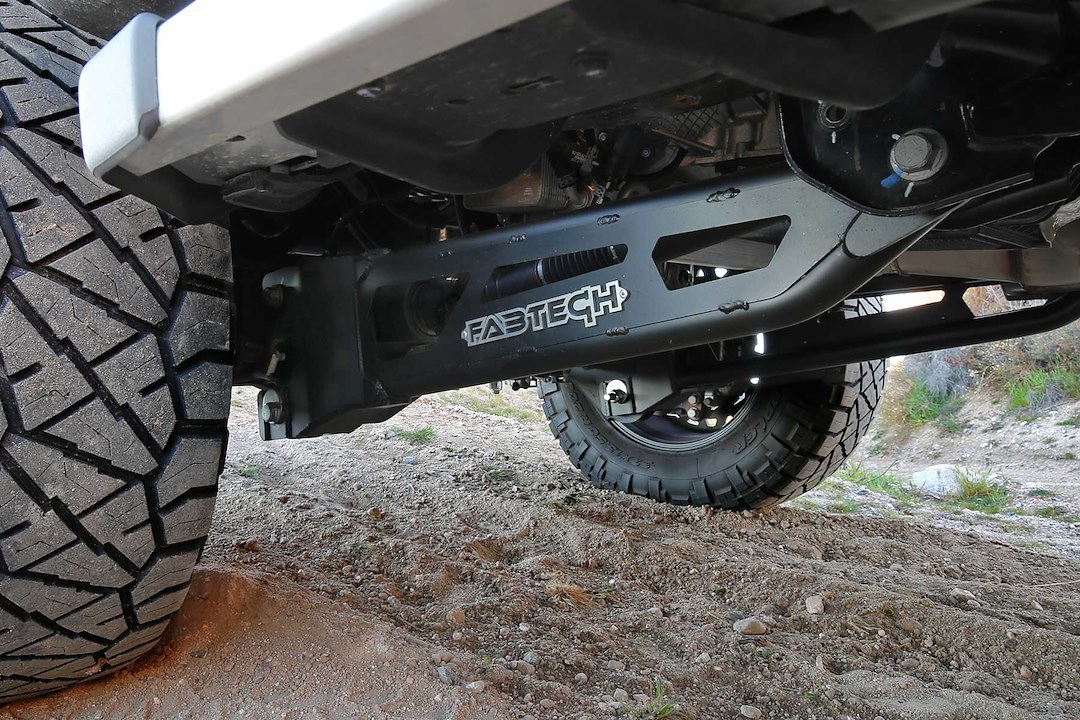

Fabtech’s 6 Inch Radius Arm lift kit has been built for the Ford Super Duty to handle the on and offroad demands of the truck enthusiast. This system is a heavy duty upgrade to the factory suspension and will provide additional strength to the vehicle. The heart of this high quality lift kit is Fabtech’s legendary tubular Radius Arms. The tubular structure design is the combination of our extensive offroad racing history and our desire to provide a smooth, compliant driving experience. The result is a suspension system with superior strength that can handle rugged offroad terrain and still navigate a grocery store parking lot with ease. The heavy duty track bar relocation bracket and new pitman arm center the front axle under the vehicle which allows for full lock steering of 12-1/2 wide tires on 5 Inch back spacing wheels. The front suspension receives Fabtech’s replacement coil springs that have been developed for a great ride on and off road. The rear suspension gets lift blocks with integrated bump stops that won’t change the ride quality or load carrying capacity. The redesigned Radius Arms have a new side plate and bold laser cut logo that gives them a modern aggressive look that will turn heads as you tackle the toughest offroad terrain.
Additional information
| Weight | 254.6 lbs |
|---|---|
| Dimensions | 37 × 12 × 7 in |
| Brand | FABTECH |
| Manufacturer Part Number | K2413M |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 77 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
