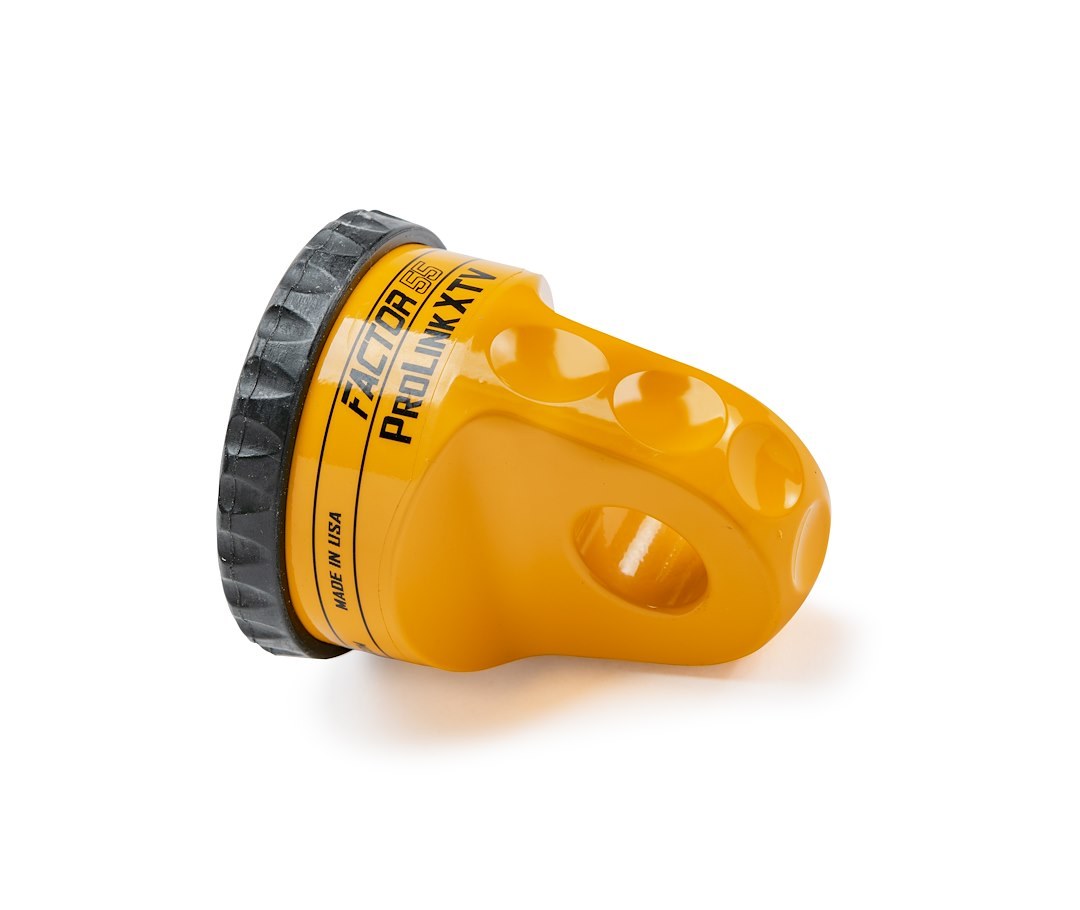

Factor 55 Winch Cable Shackle Mount, Prolink Xtv, Fits 1/2 and 5/8 Inch Shackles/ D-Rings, Fits 1/4 Inch Steel Cable/ Synthetic Winch Rope – 00110-03
$107.63
Factor 55 Winch Cable Shackle Mount, Prolink Xtv – 00110-03
Description
Winch Cable Shackle Mount; ProLink XTV; Fits 1/2 And 5/8 Inch Shackles/ D-Rings; Fits 1/4 Inch Steel Cable/ Synthetic Winch Rope; 6000 Pound Load Capacity; Anodized; Yellow; Aluminum; With EPDM Rubber Guard And 7/16 Inch Diameter Grade 5 Titanium Double Shear Pin
Attributes:
- Shackle Type: 1/2 And 5/8 Inch Shackles/ D-Rings
- Cable Type: 1/4 Inch Steel Cable/ Synthetic Winch Rope
- Load Capacity (LB): 6000 Pound
- Shear Pin Size (IN): 7/16 Inch
- Finish: Anodized
- Color: Yellow
- Material: Aluminum
- With Guard: Yes
Features & Benefits:
- Precision Machined From 6000 Series Aluminum And 6Al-4V Titanium
- EPDM Rubber Guard Protects Alloy Fairleads And Cushions Line Stowage
- Simple Snap Ring Removal For Shear Pin
- Fits Common 1/2 And 5/8 Shackles And D-Rings
- Limited 1 Year Warranty
About Product:

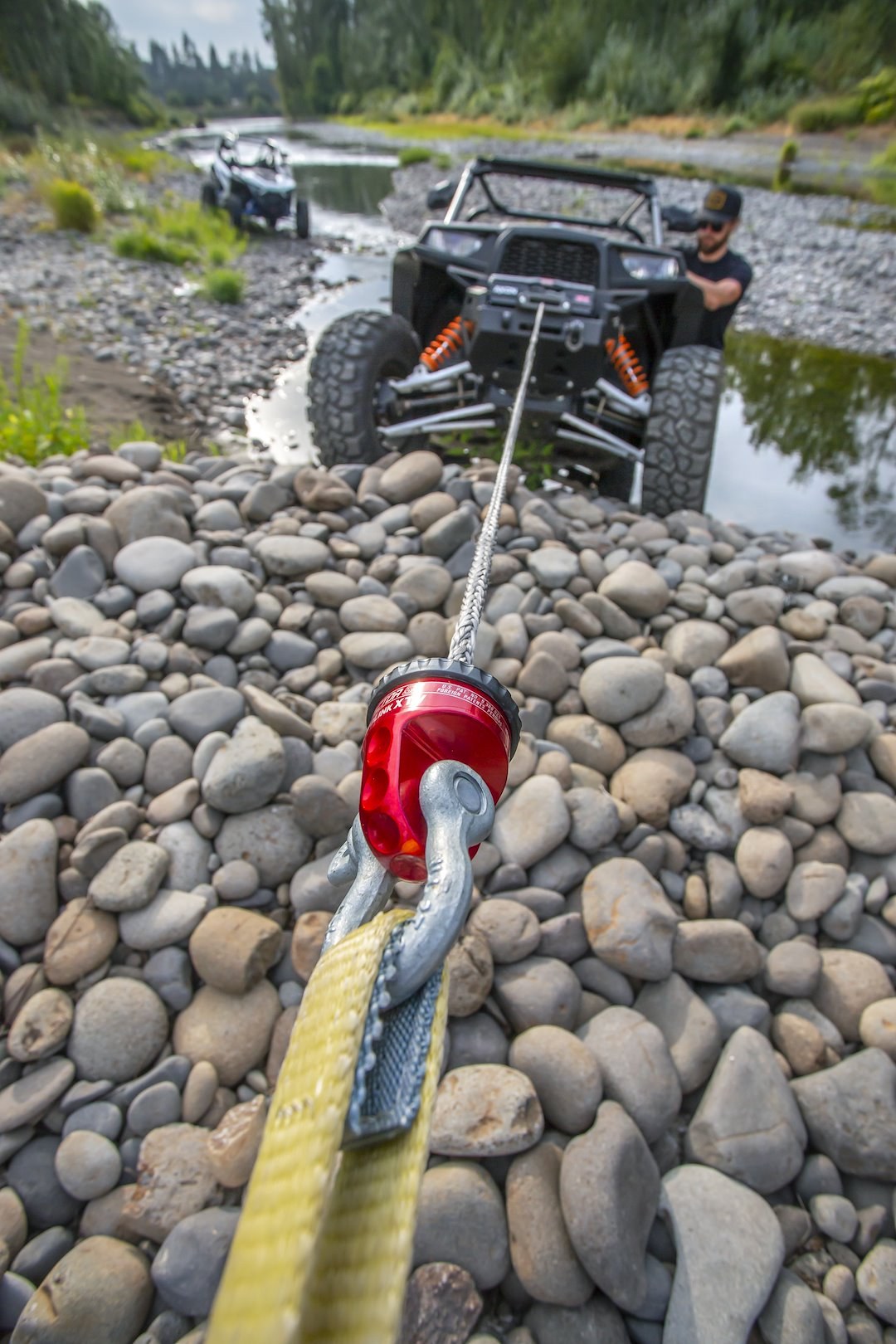

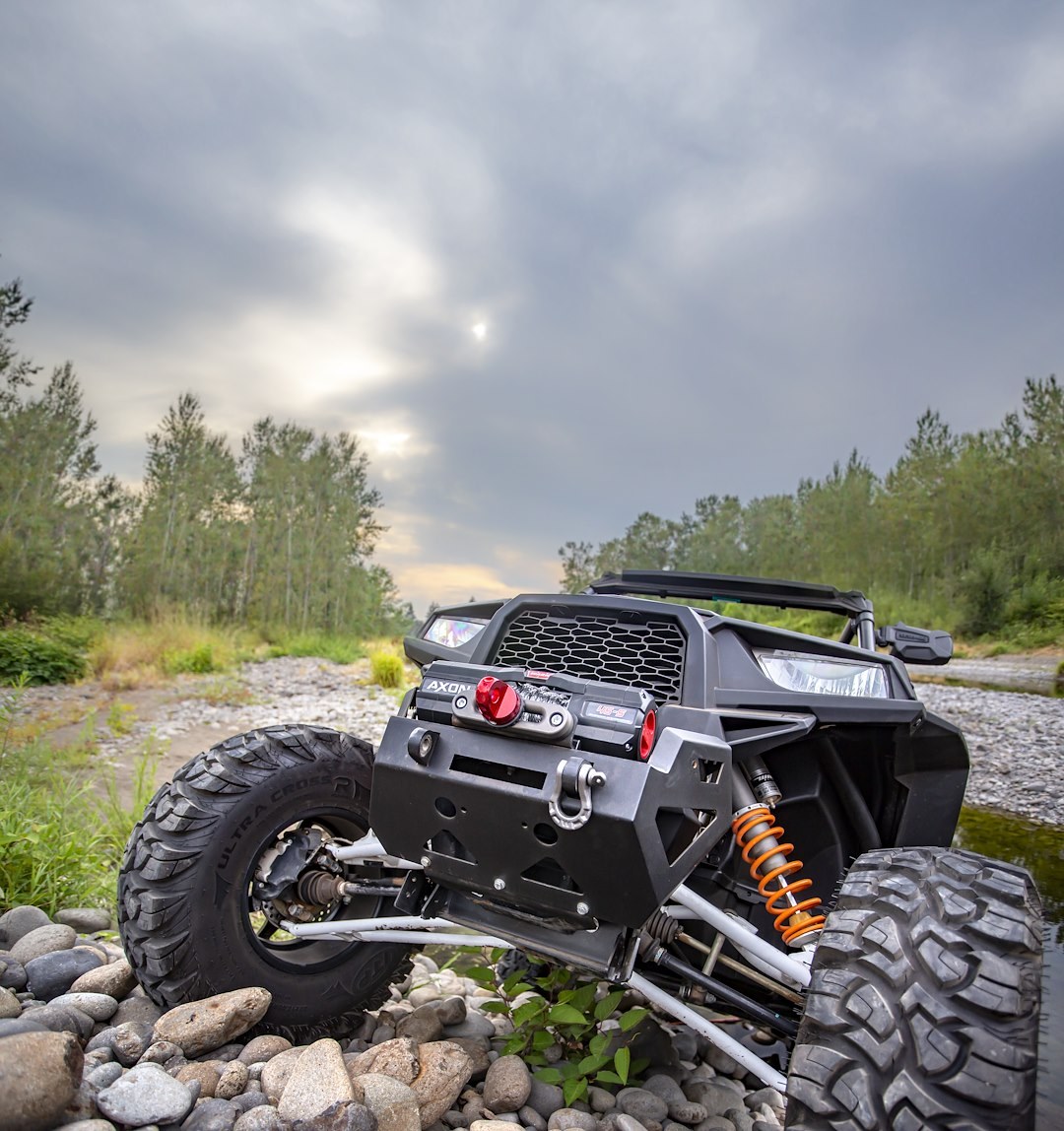

Factor 55 ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle and D-Ring. winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 Inch. The cable eye is retained in the ProLink XTV by a 7/16 Inch diameter titanium double shear pin and internal snap ring. It is easily installed in minutes. The EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips. The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard 1/2– 5/8 Inch shackles. ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium and is anodized and powder coated in 5 different colors. The ProLink has a max load rating of 6000 Pound and an ultimate failure of 22,000 Pound.
Additional information
| Weight | 2.5 lbs |
|---|---|
| Dimensions | 8 × 5.5 × 3.5 in |
| Brand | FACTOR 55 |
| Manufacturer Part Number | 00110-03 |
