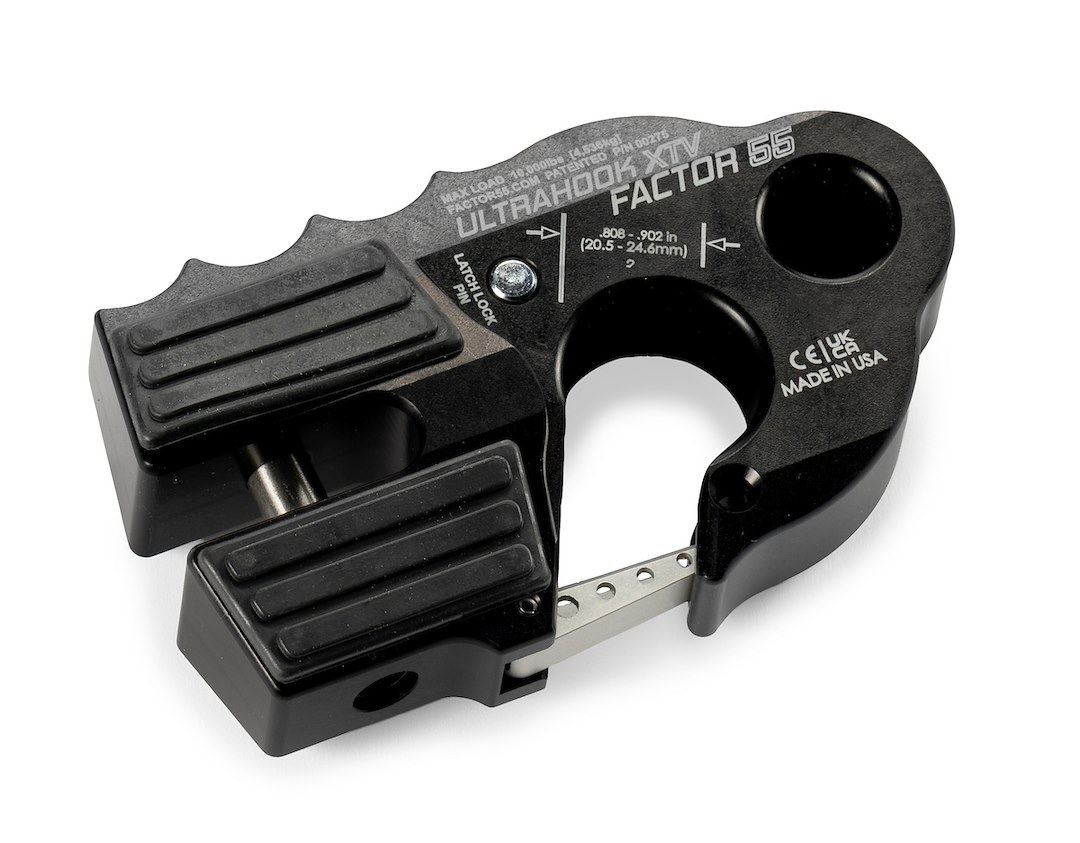

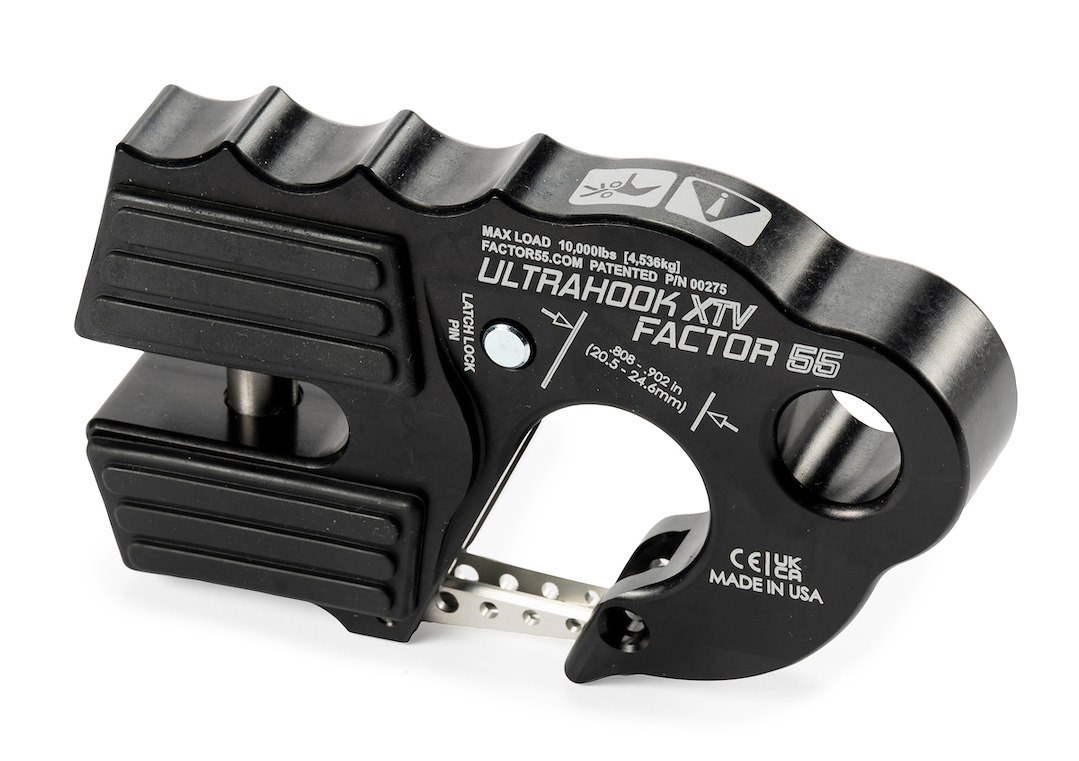

Factor 55 Winch Clevis Hook, Ultrahook Xtv, For Use with Winches Rated 6000 Pound or Less, For Up to 5/16 Inch Diameter Rope or Cable – 00275-04
$214.28
Factor 55 Winch Clevis Hook, Ultrahook Xtv – 00275-04
Description
Winch Clevis Hook; UltraHook XTV; For Use With Winches Rated 6000 Pound Or Less; For Up To 5/16 Inch Diameter Rope Or Cable; With Shackle Pin Mounting Hole For 3/4 Inch Pin; 7/16 Inch Diameter Double Sheer Pin; 10000 Pound Max Load Capacity/ 21000 Pound Breaking Strength; Black; Aluminum; Single
Attributes:
- Shackle Pin Size: 3/4 Inch
- Rope Diameter: 5/16 Inch
- Maximum Load Capacity: 10000 Pound
- Color: Black
- Material: Aluminum
- Estimated Install Time (Hours): 0.25
Features & Benefits:
- Shackle Pin Mounting Hole Accepts Screw Pins From Common 5/8 Inch Shackles
- 7/16 Inch Diameter 6AI-4V Grade V Titanium Double Shear Pin
- For Rope And Cable Diameters Up To 5/16 Inch
- Finger Grip Feature That Promotes Proper “hook Up” Orientation
- Industry First Closed System Shackle Mount Hole Machined Into The Body Of The Hook
- EPDM Rubber Pads For Fairlead Protection
- Limited 1 Year Warranty
About Product:
The functionality of a hook with the benefits of Closed System Winching(R). Originally developed to meet the needs of off-road racers who wanted the speed of a hook and functionality of closed system winching, the low-profile UltraHook XTV features an industry-first closed system shackle mount hole machined into the body of the hook, and installs in minutes. A latch pin, which is stored in the hook’s body, can lock the safety latch securely into place for a true Closed Loop System™. Integrated finger grips promote proper “Hook Up”orientation. UltraHook XTV is the first powersports winch hook that can be stored neatly against your UTV/ ATV winch’s fairlead protecting it from a metal to metal connection, thanks to EPDM rubber pads, which also eliminate the UltraHook XTV from rattling. With eight colors to choose from, you can also match your UltraHook to your ATV or UTV. This product is compatible with Closed System Winching(R), a technique that uses rigging comprised entirely of closed-link hardware. With Closed System Winching you get the extra security and confidence needed to tackle the most demanding winch recoveries.
Additional information
| Weight | 1.5 lbs |
|---|---|
| Dimensions | 6.75 × 4.35 × 2.35 in |
| Brand | FACTOR 55 |
| Manufacturer Part Number | 00275-04 |
