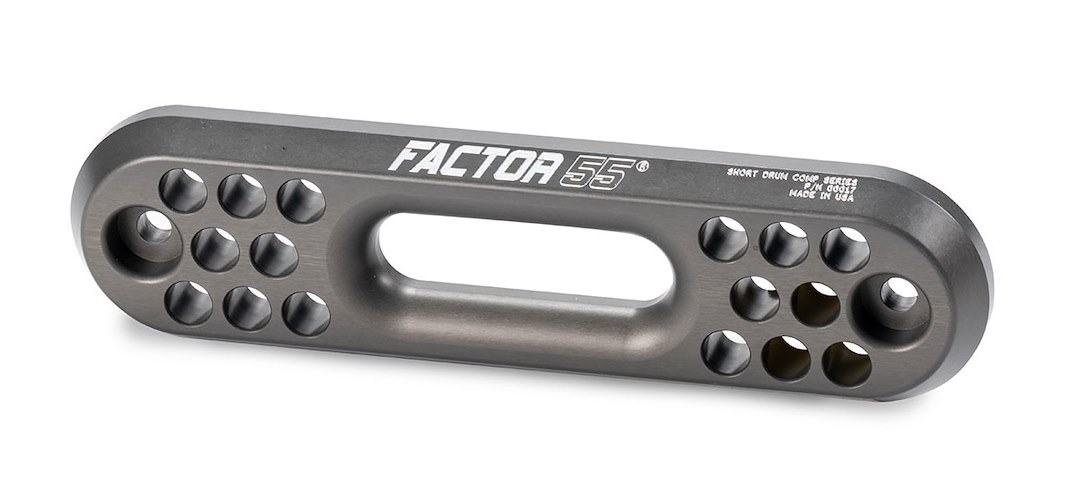

Name: Factor 55 Winch Fairlead, For Use with Short Drum Winches Only, 1 Inch Thickness, 10 Inch Bolt Spacing, Aluminum - 00017
Brand: FACTOR 55
SKU: KYS-FAC00017
Price: 166.88 USD
Availability: InStock

Description

Winch Fairlead; For USe With Short Drum Winches Only; 1 Inch Thickness; 10 Inch Bolt Spacing; Aluminum

Attributes:

Compatibility: Short Drum Winches Only
Type: Hawse
Finish: Anodized
Color: Gray
Material: Aluminum
Estimated Install Time (Hours): 0.25

Features & Benefits:

Short Drum Comp Fairlead Is Ultra Lightweight From Having Maximum Material Removed
Extremely Rigid To Handle Front End Impacts
For Synthetic Winch Rope Only
Tumbled And Deburred
Precision Engineered, Made In USA
Limited 1 Year Warranty

About Product:
Factor 55 introduces a new line of Aluminum Short Drum Competition Hawse fairleads. This 1.0 Inch thick fairlead is CNC machined from 1 Inch thick USA 6000 series aluminum bar. The industry standard fairlead thickness is 0.75 Inch thick. The thicker, Factor 55 aluminum bar results in a larger outer fillet radius for the synthetic rope to slide against. This results in less stress on the rope fibers during high angular pulls, increasing the life of your expensive synthetic rope. The Short Drum Comp Fairlead is the industry’s first Hawse fairlead compatible with the larger 1/2 Inch diameter rope tube thimbles. The rope slot height opening is taller to allow the larger 1/2 Inch thimbles to pass through. There is also a machined outer corner chamfer to reduce rope stress for those that plan on using the winch as a front suspension ‘suck down’ device. These fairleads come in a durable MIL-A8625F TYPE III gun metal gray hard anodized finish with a machined logo. The Short Drum Comp Fairlead is used by the top competitors in the ULTRA4 Racing circuit and by professional rock crawlers around the world.
