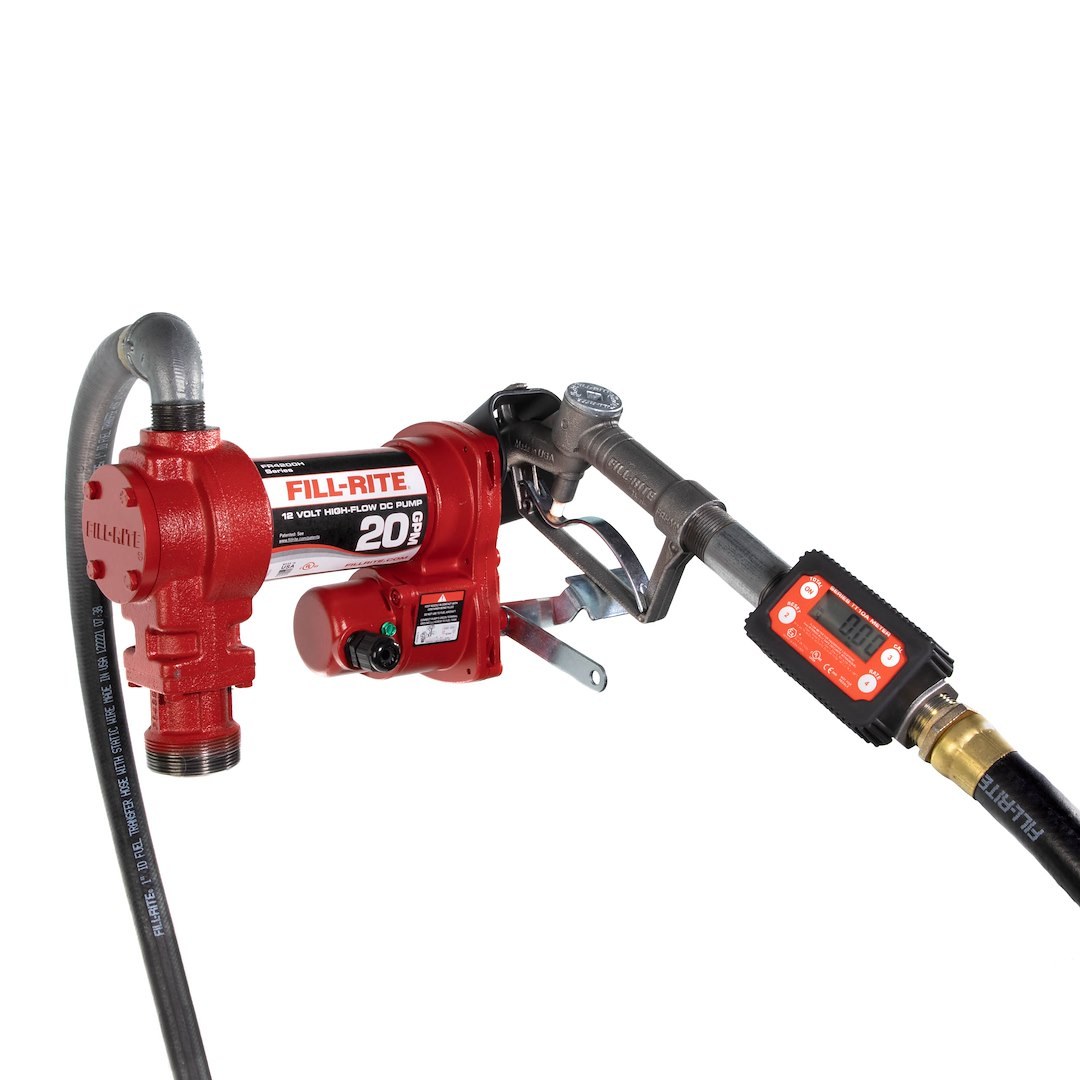

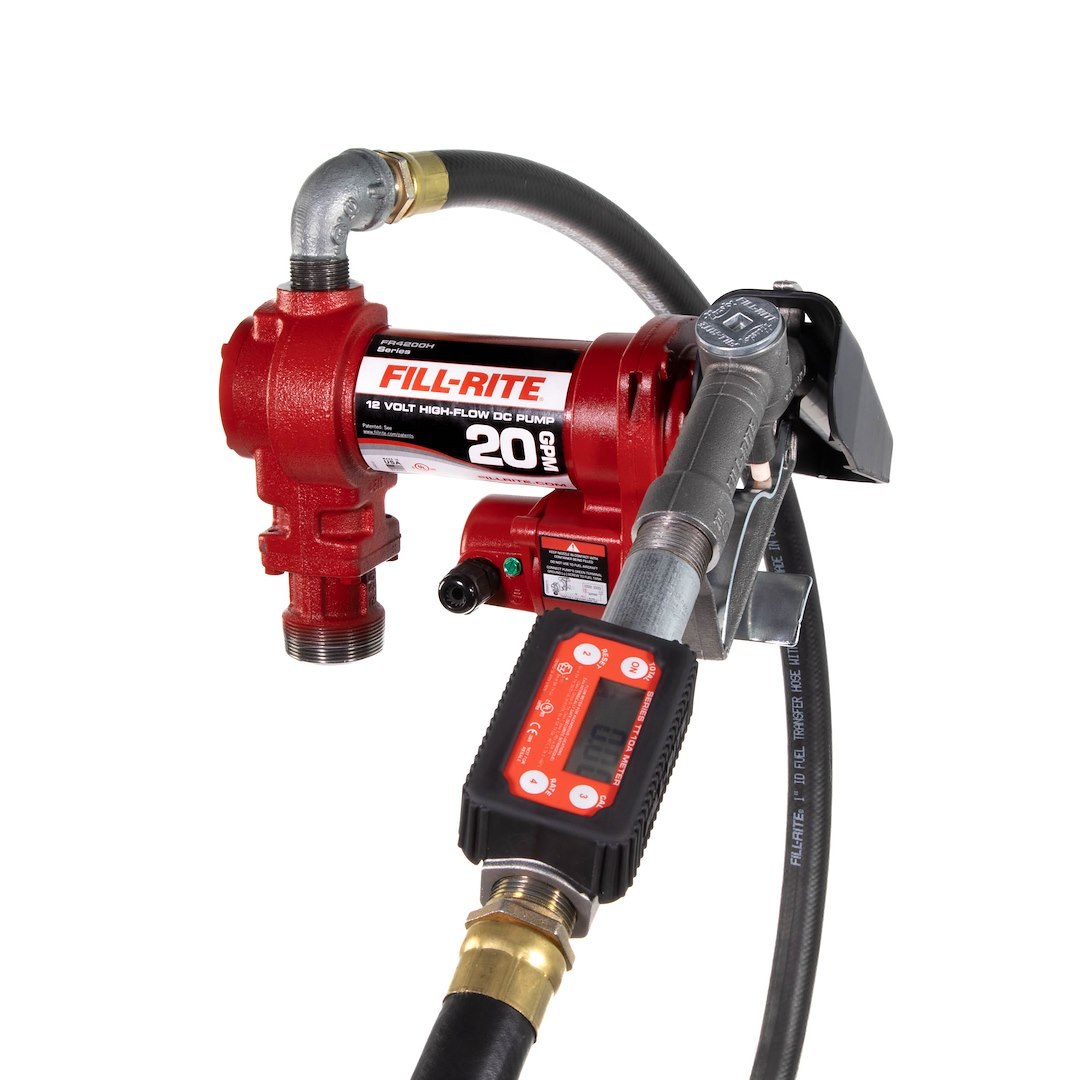

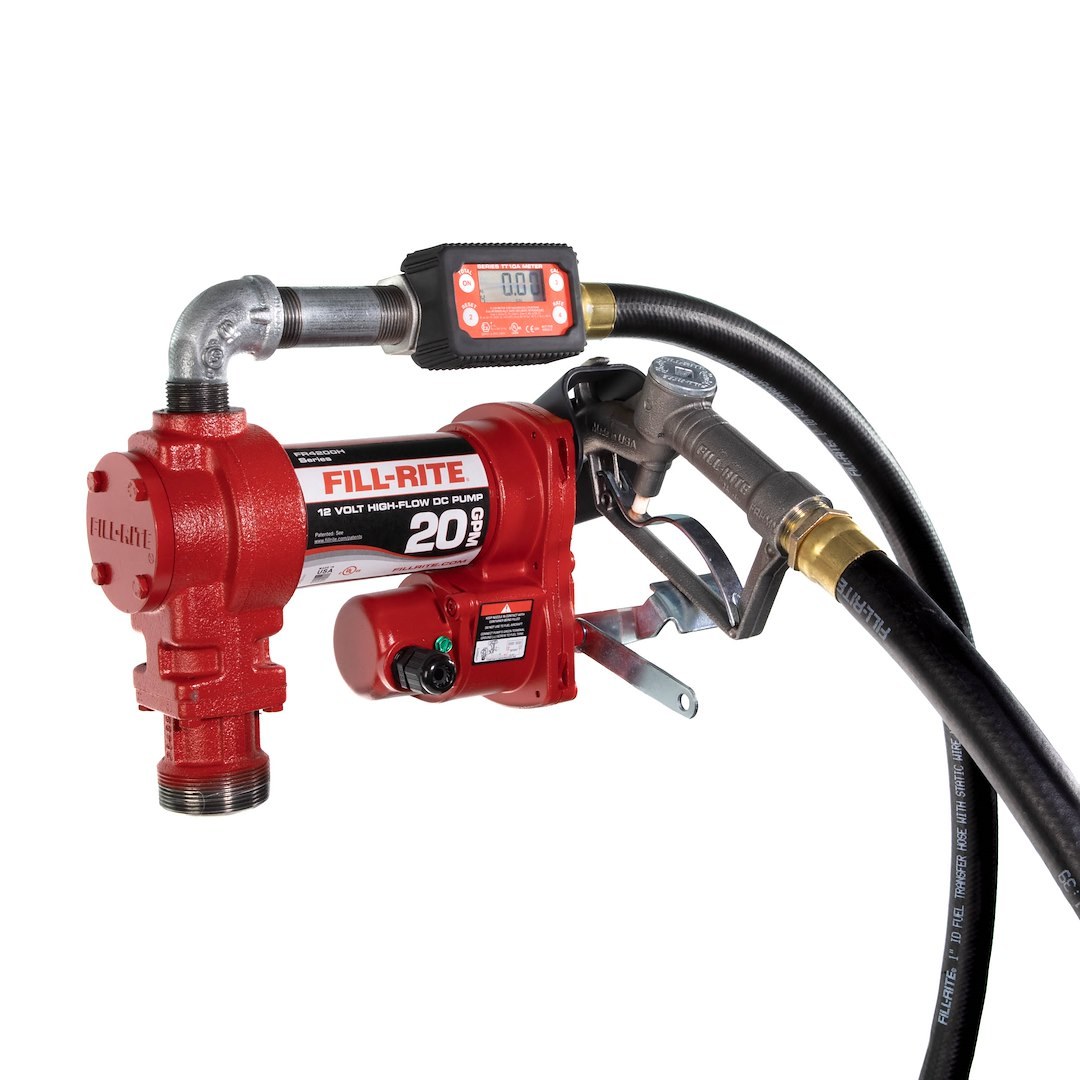

Fill Rite Liquid Transfer Tank Pump, H Series, Diesel/ Gasoline/ Kerosene/ B20/ E15, Electric, 12 Volt DC, Up to 20 Gallons Per Minute – FR4219H
$1,268.35
Fill Rite Liquid Transfer Tank Pump, H Series – FR4219H
Description
Liquid Transfer Tank Pump; H Series; Diesel/ Gasoline/ Kerosene/ B20/ E15; Electric; 12 Volt DC; Up To 20 Gallons Per Minute; 1 Inch Diameter x 12 Foot Length Hose; With Flow Meter/ Manual Nozzle; 1 Inch NPT Inlet x 3/4 Inch NPT Outlet; Cast Iron Construction; 16 PSI Maximum Operating Pressure; -17 Degree Fahrenheit To 105 Degree Fahrenheit Operating Temperature Range; 19 Amps
Attributes:
- Duty Cycle: 30 Minutes On/ 30 Minutes Off
- Flowrate: 20 Gallons Per Minute
- Type of Liquid: B20/ Diesel/ E-15/ Gasoline/ Kerosene
- Hose Diameter: 1 Inch
- Hose Length: 12 Feet
- Hose Material: Cast Iron
- Inlet Size (IN): 1 Inch
- Outlet Size (IN): 3/4 Inch
- Delivery Type: Electric
- Universality: Fully Universal
Features & Benefits:
- Reliable, Heavy-Duty Power Switch Lever: Features A Cast Metal Stop That Withstands Heavy Use In The Most Rugged Environments
- Locking Bar Defense: Elongated Bar Simplifies The Pad Locking Process To Prevent Theft
- Premium Paint Shield: An Exemplary Corrosion Resistant Barrier For Long Field Life
- Thermally Protected Motor: Prevents Overheating To Ensure Maximum Motor Life
- Telescoping Inlet Metal Suction Pipe: Adjustable From 20 To 34 Inch In Length, Allowing For Universal Sizes And Shapes
- Intake Strainer Safeguard: Protects The Pump By Blocking Particles Created By Contamination
- Focused Component Weight Reduction: Preserves Expected Heavy-Duty Performance While Improving Installation Ease
- Certifications: UL, CUL
- Limited Lifetime Warranty
About Product:
The Fill-Rite ® H-Series fuel transfer pump is designed to provide heavy-duty performance in a compact size. Fueling between 13 and 20 GPM in three voltage combinations the H-Series is compatible with gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, and kerosene. Wide selection of configurations with a manual or automatic nozzle, mechanical or digital meter, and a variety of fuel hose lengths, the H-Series is ideal for mobile and stationary applications that require a durable pump to withstand the elements and the test of time. A series of fuel transfer pumps with UL and cUL certifications that are compatible with gasoline, diesel, fuel blends such as biodiesel up to 20 Percent and gasoline with up to 15 Percent ethanol, mineral spirits, and kerosene.
Additional information
| Weight | 39 lbs |
|---|---|
| Dimensions | 22 × 20 × 10.5 in |
| Brand | FILL RITE |
| Manufacturer Part Number | FR4219H |
