Fill Rite Liquid Transfer Tank Pump, H Series, Gasoline/ Diesel/ B20/ Mineral Spirits, Electric, 12 Volt DC, 20 Gallon Per Minute – FR4220HDSFQ
$1,581.85
Fill Rite Liquid Transfer Tank Pump, H Series – FR4220HDSFQ
Description
Liquid Transfer Tank Pump; H Series; Gasoline/ Diesel/ B20/ Mineral Spirits; Electric; 12 Volt DC; 20 Gallon Per Minute; 18 Foot House; Without Flow Meter; Automatic Nozzle; 1 Inch NPT Inlet x 1 Inch NPT Outlet; 13.7 Inch Length x 8.4 Inch Height; 16 PSI Maximum Operating Pressure; -17 Degree Fahrenheit To 105 Degree Fahrenheit Operating Temperature Range; 19 Amps
Attributes:
- Duty Cycle: 30 Minutes On/ 30 Minutes Off
- Flowrate: 20 Gallons Per Minute
- Type of Liquid: Gasoline/ Diesel/ B20/ Mineral Spirits
- Hose Diameter: 1 Inch
- Hose Length: 18 Feet
- Hose Material: Nitrile Inner Tube/ Neoprene Outer
- Inlet Size (IN): 1 Inch
- Outlet Size (IN): 1 Inch
- Delivery Type: Electric
- Nozzle: Automatic
- Power Cord Length (FT): 18 Feet
- Power Cord Gauge: 12 AWG
- Suction Pipe: Telescoping
- UL Listed Approved: Yes
- Universality: Fully Universal
Features & Benefits:
- Adjustable Electric Junction Box Rotates 180 Degree
- Reliable, Heavy Duty Power Switch Withstands Heavy Abuse In Rugged Environments
- Focused Weight Reduction While Preserving Expected Heavy Duty Performance
- Thermally Protected Motor Prevents Overheating To Maximize Motor Life
- Premium Paint Shield For Exemplary Corrosion Resistance
- UL And CUL Listed Motor
- Limited Lifetime Warranty
About Product:

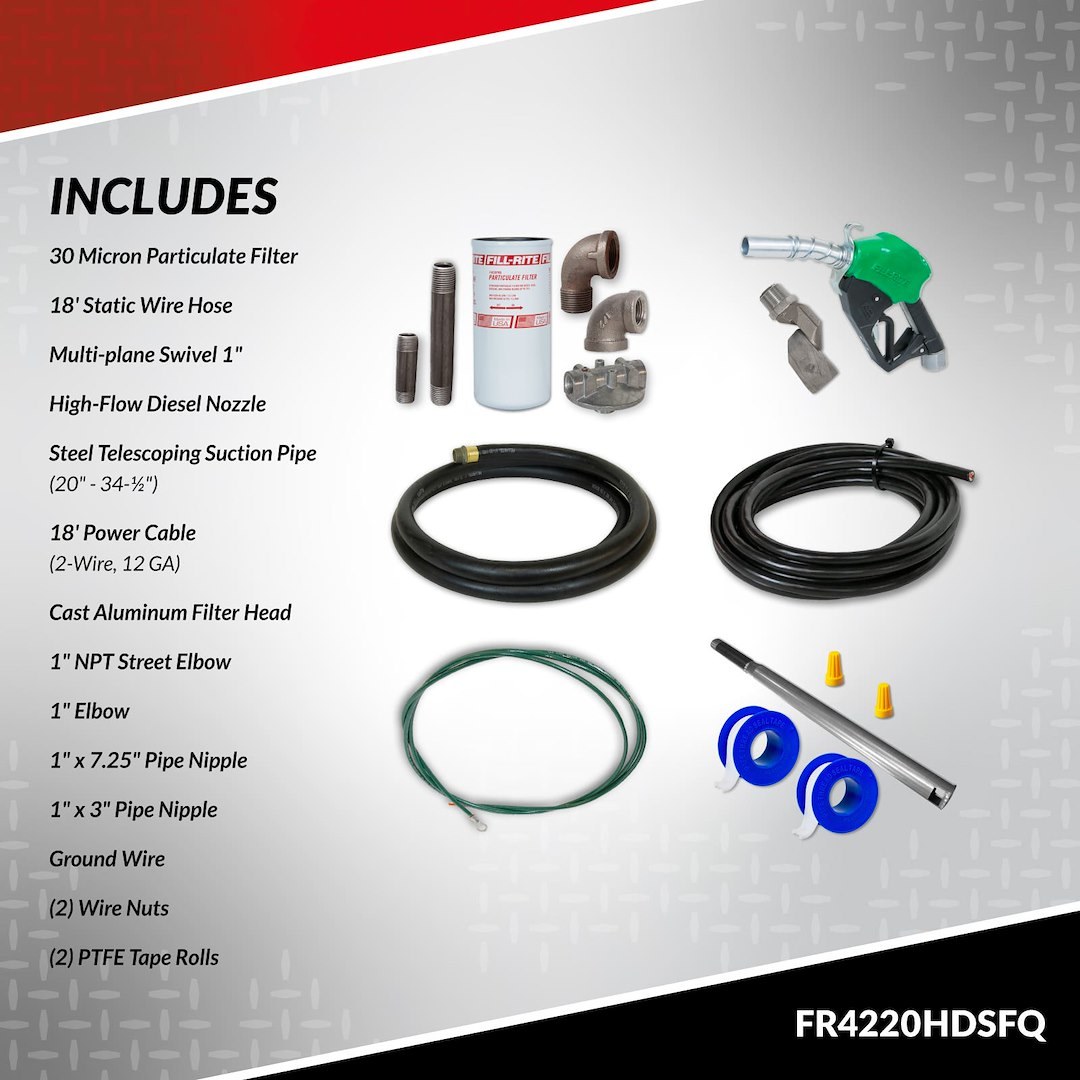

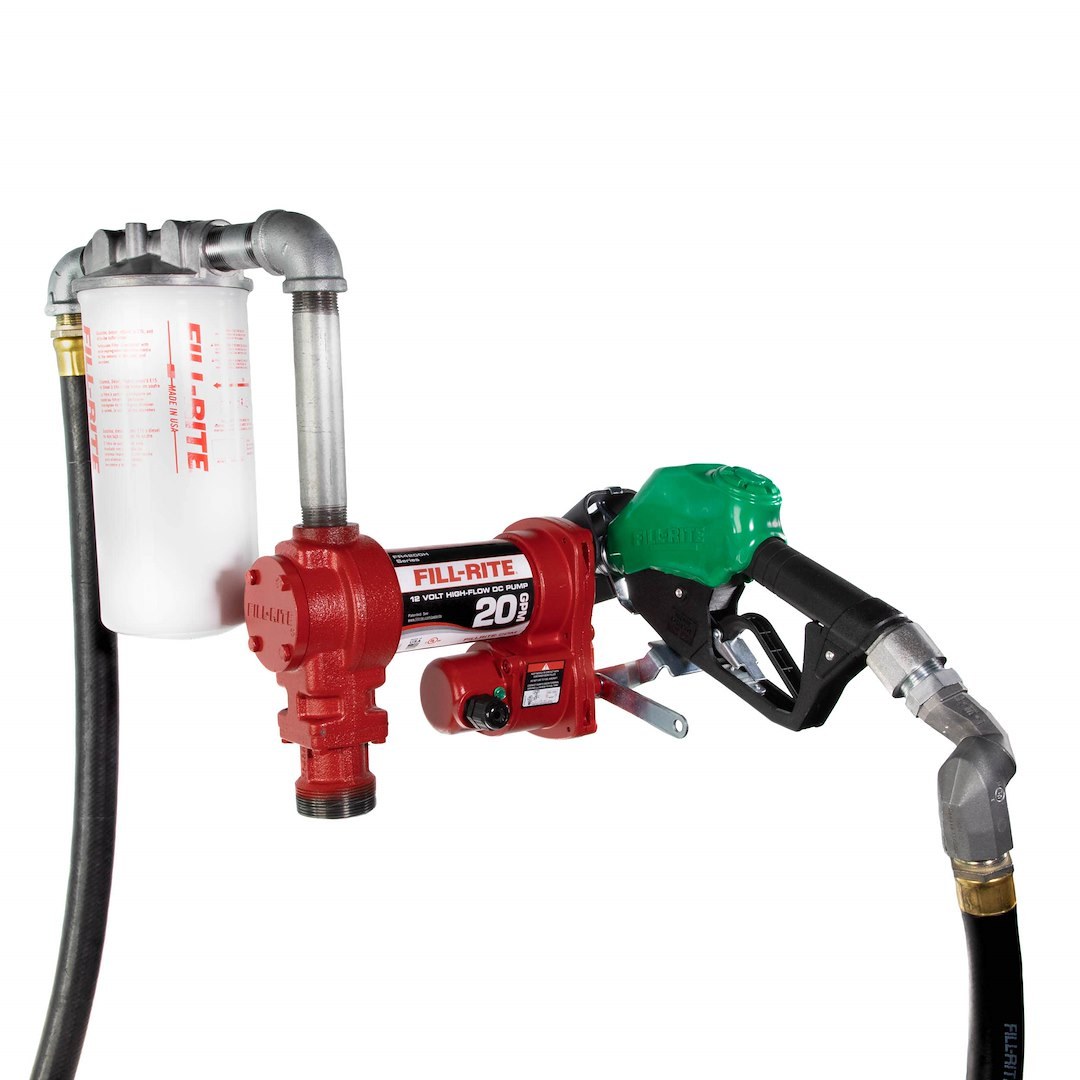

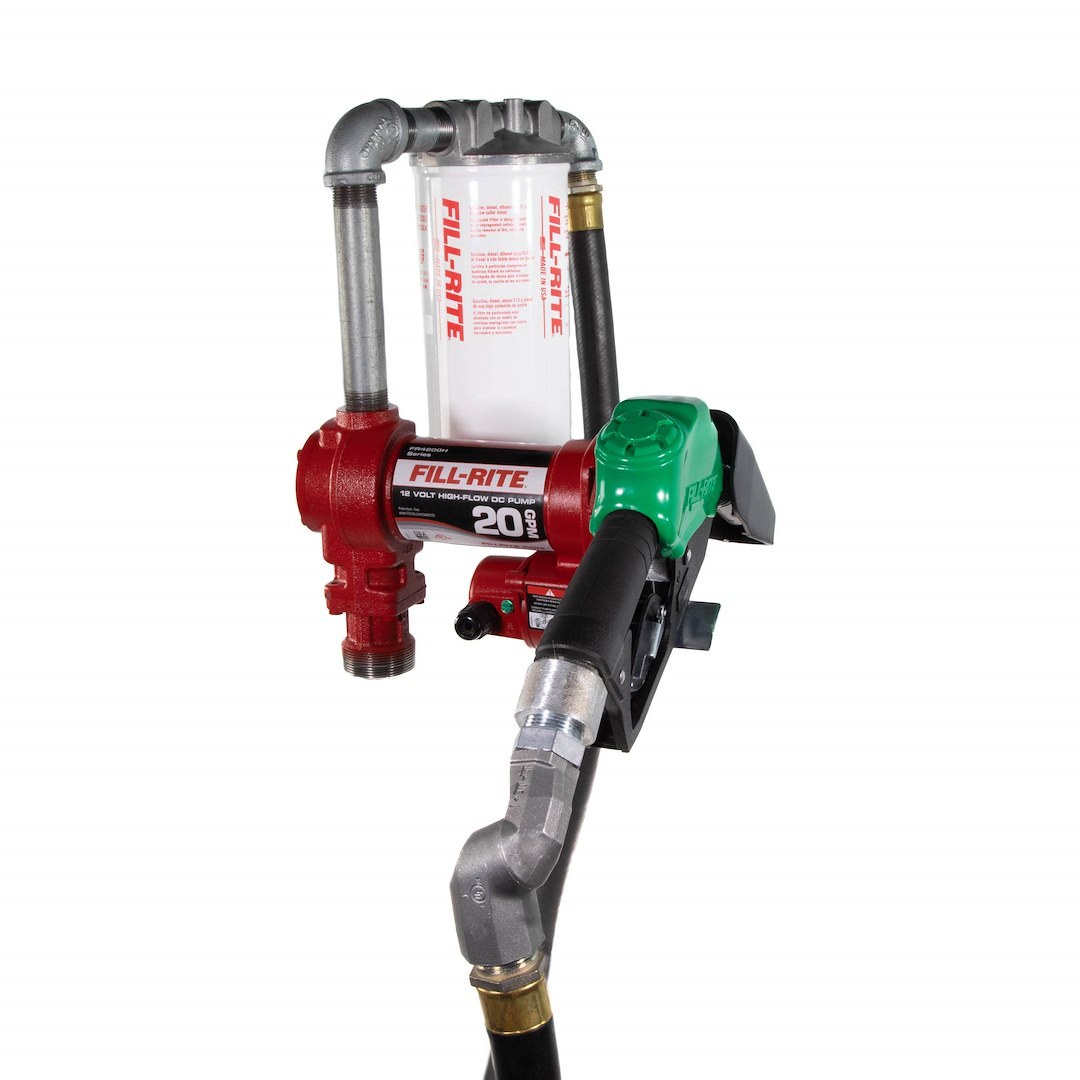

The NPT fittings is a 12 Volt DC heavy duty, cast iron, rotary vane fuel transfer pump that is capable of generating up to 20 Gallon Per Minute. It is designed to handle flammable liquids such as gasoline, diesel, biodiesel blends up to B20, ethanol blends up to E15, kerosene and mineral spirits. The pump motor utilizes a low amp draw and is thermally protected to prevent overheating. The 1 Inch automatic (green) nozzle, swivel, 18 Foot fuel hose, 20 to 34 Inch steel telescoping suction pipe, 30 Micron filter, as well as other accessories. Made in the USA with a UL and cUL Listed Motor and limited lifetime warranty, this product is ideal for agriculture, construction, as well as any industry requiring mobile fuel transfer.
Additional information
| Weight | 36 lbs |
|---|---|
| Dimensions | 17.8 × 17.8 × 10 in |
| Brand | FILL RITE |
| Manufacturer Part Number | FR4220HDSFQ |
