Fox Racing Shox Coil Over Shock Absorber, 2.5 Factory Series, Adjustable Valving, Ride Height Adjustable from 2 to 3 Inch Lift – 883-06-208
$2,817.14
Fox Racing Shox Coil Over Shock Absorber, 2.5 Factory Series – 883-06-208
Description
Coil Over Shock Absorber; 2.5 Factory Series; Adjustable Valving; Ride Height Adjustable From 2 To 3 Inch Lift; Black/ Gray; With External Reservoir; Set Of 2
Attributes:
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2 To 3 Inch Lift
- Extended Height (IN): 21.87 Inch
- Compressed Height (IN): 16.64 Inch
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Hydraulic
- Shock Body Color: Black/ Gray
- Shock Body Material: 6061-T6 Billet Aluminum
- Spring Color: Black

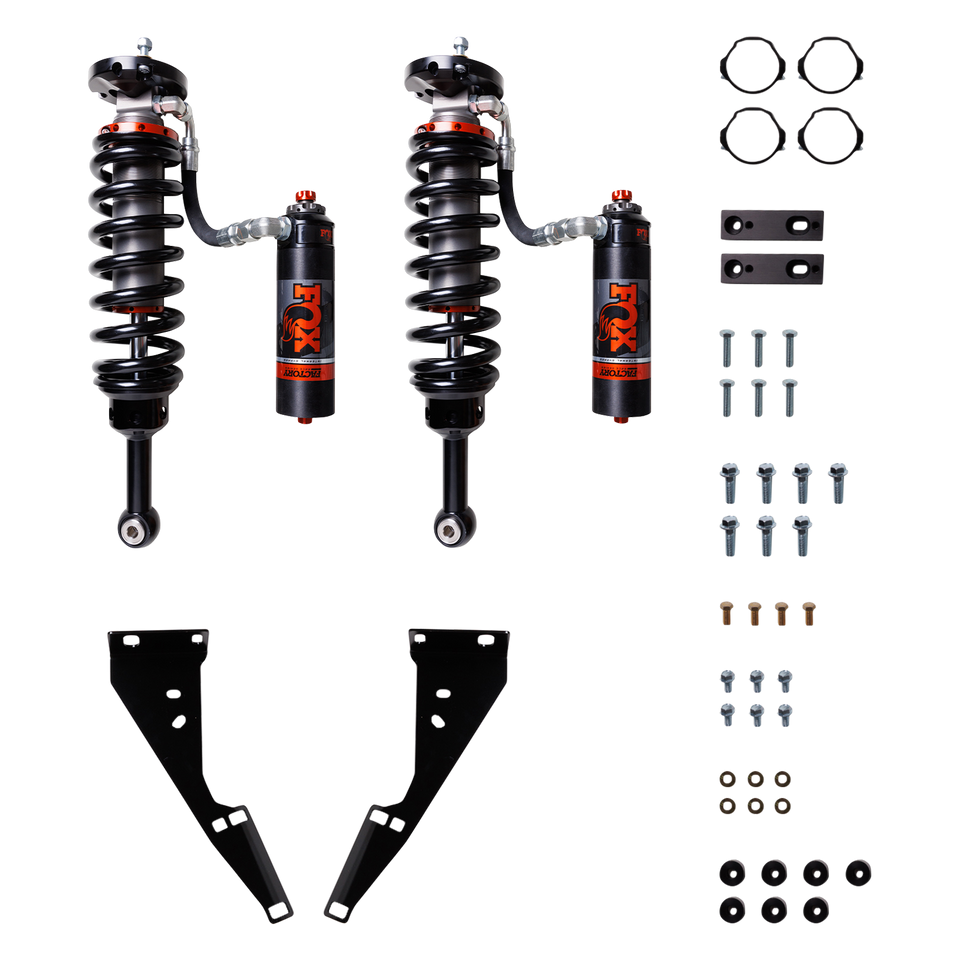

- Includes Mounting Hardware: Yes
Features & Benefits:
- 2.5 Inch Impact-Extruded And CNC-Machined 6061-T6 Type III Anodized Aluminum Body
- Patented Internal Bypass Design
- 7/8 Inch Hard Chromed Steel Shafts
- Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal

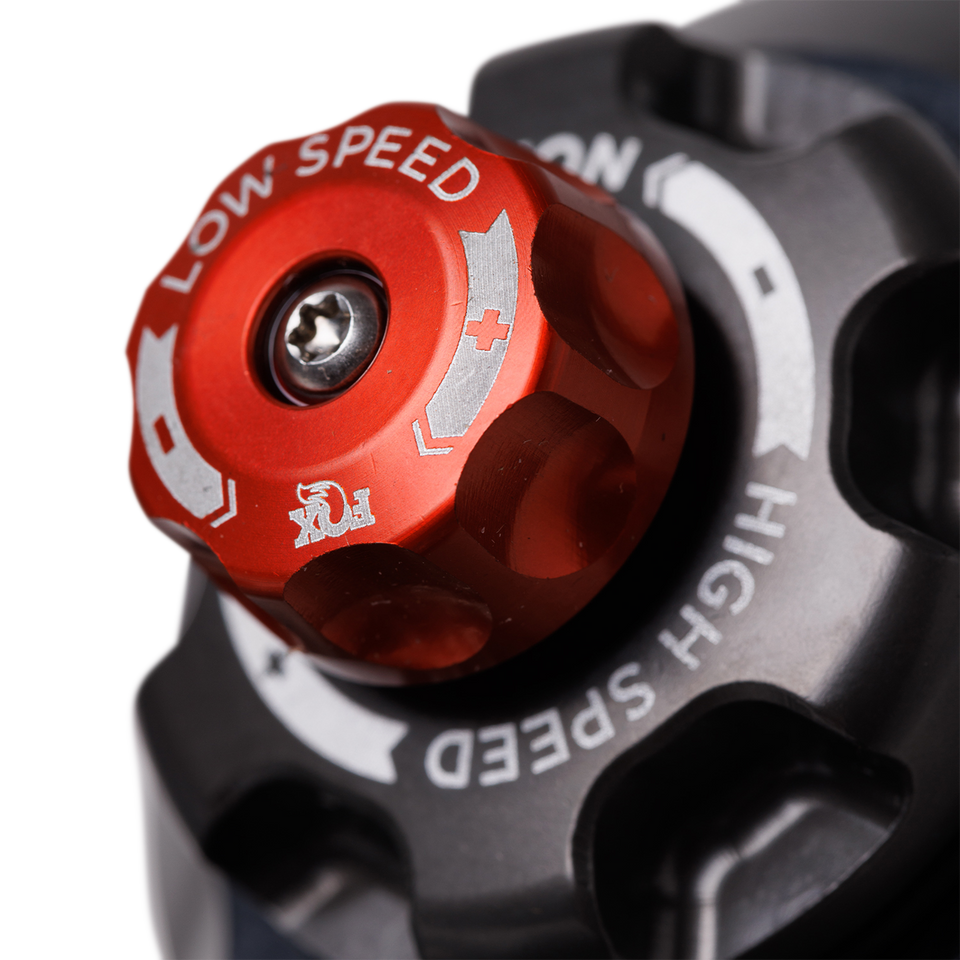

- External Reservoir With DSC Adjuster
- Limited 1 Year Warranty
About Product:

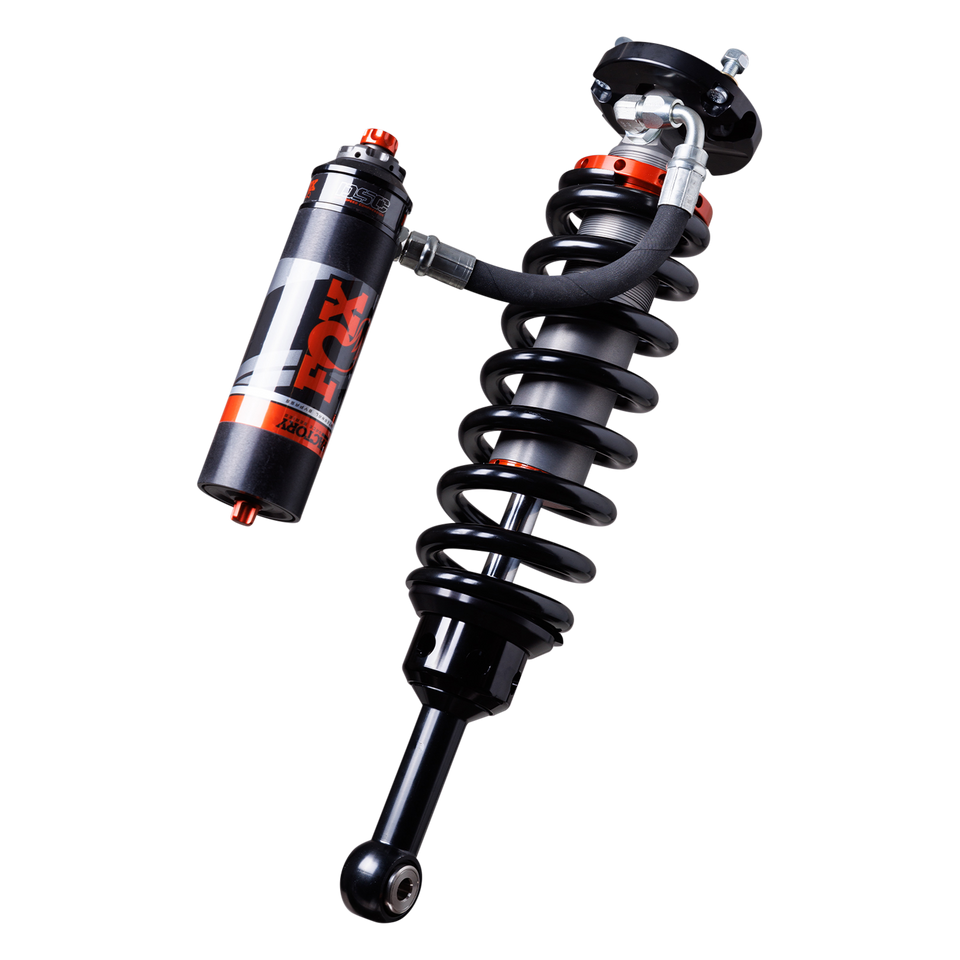

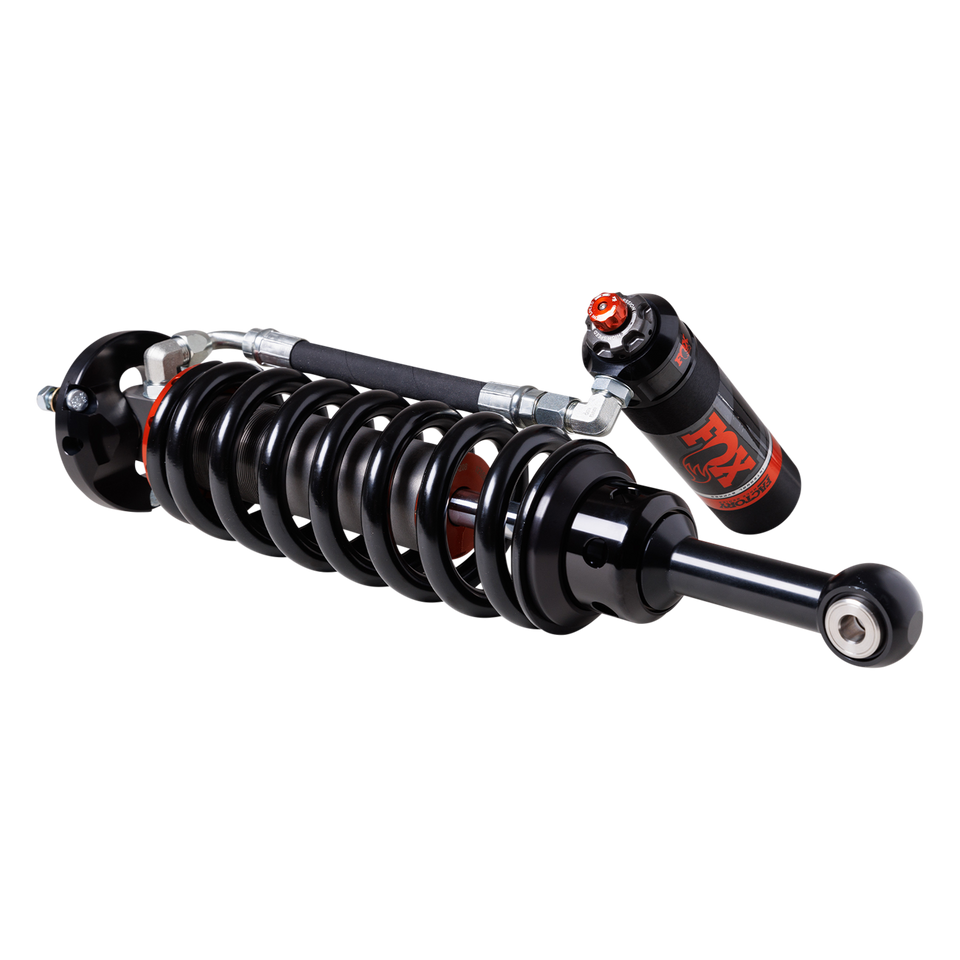

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota Tacoma deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type III anodization prevents corrosion and wear of the 2.5 inch diameter aluminum bodies. Dial in your Tacoma for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Additional information
| Weight | 64 lbs |
|---|---|
| Dimensions | 33 × 15 × 15 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-06-208 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 412 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
