Fox Racing Shox Coil Over Shock Absorber, 2.5 Factory Series, Dual Speed Compression (dsc) Adjustment for High and Low Speed Dampening – 883-06-227
$2,548.01
Fox Racing Shox Coil Over Shock Absorber, 2.5 Factory Series – 883-06-227
Description

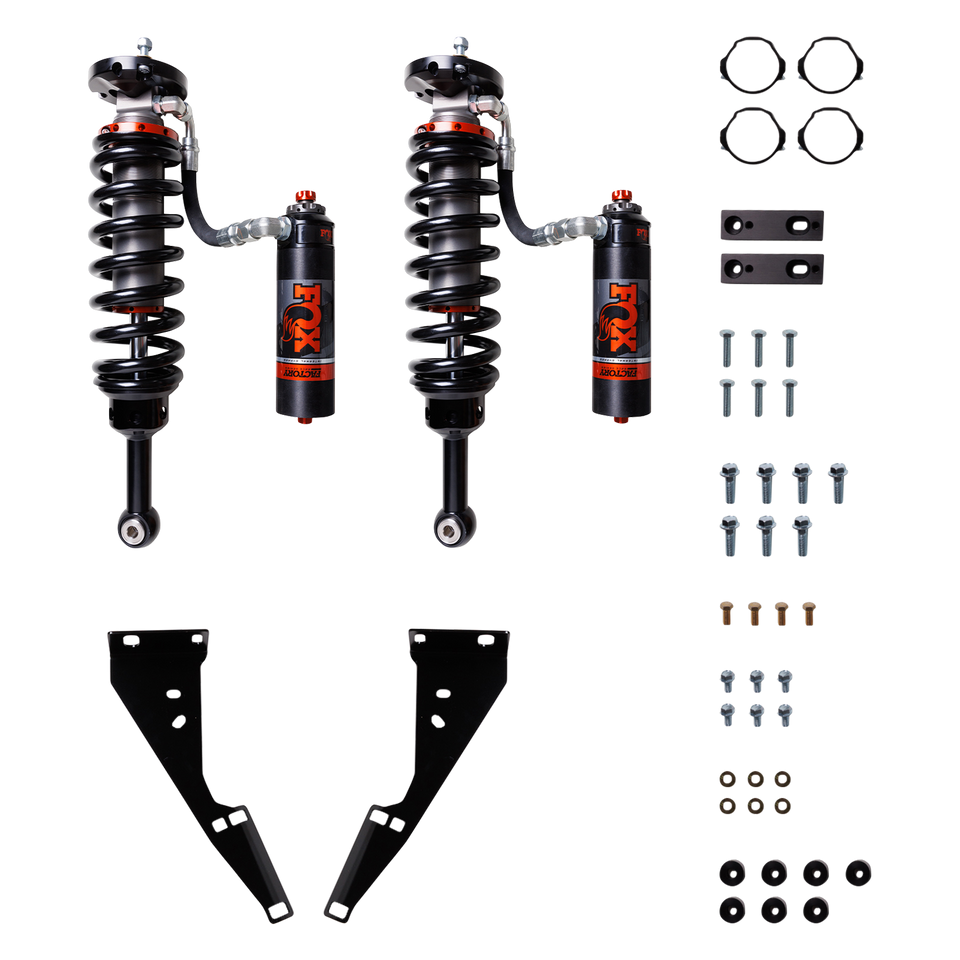

Coil Over Shock Absorber; 2.5 Factory Series; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Ride Height Adjustable; Single Flat End Coil Spring; Black And Silver; With Remote Reservoir/ Shock Absorber/ Adjustment Collar/ Adjustment Knob/ Spring; Set Of 2
Attributes:
- Adjustable: Yes
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2 To 3 Inch
- Extended Height (IN): 22.48 Inch
- Compressed Height (IN): 17.19 Inch
- Quantity: Set Of 2
- Valving Type: Dual Speed Compression (DCS) Adjustable Valving
- Shock Type: Nitrogen Gas Charged
- Shock Body Color: Black/ Silver
- Shock Body Material: Aluminum
- Spring Style: Single Flat End
- Spring Color: Black
- Includes Mounting Hardware: Yes
Features & Benefits:
- 2.5 Inch Impact Extruded And CNC Machined Type III Anodized Aluminum Body
- 7/8 Inch Hard Chromed Steel Shafts
- Vehicle-Specific Tuning Maximizes Performance

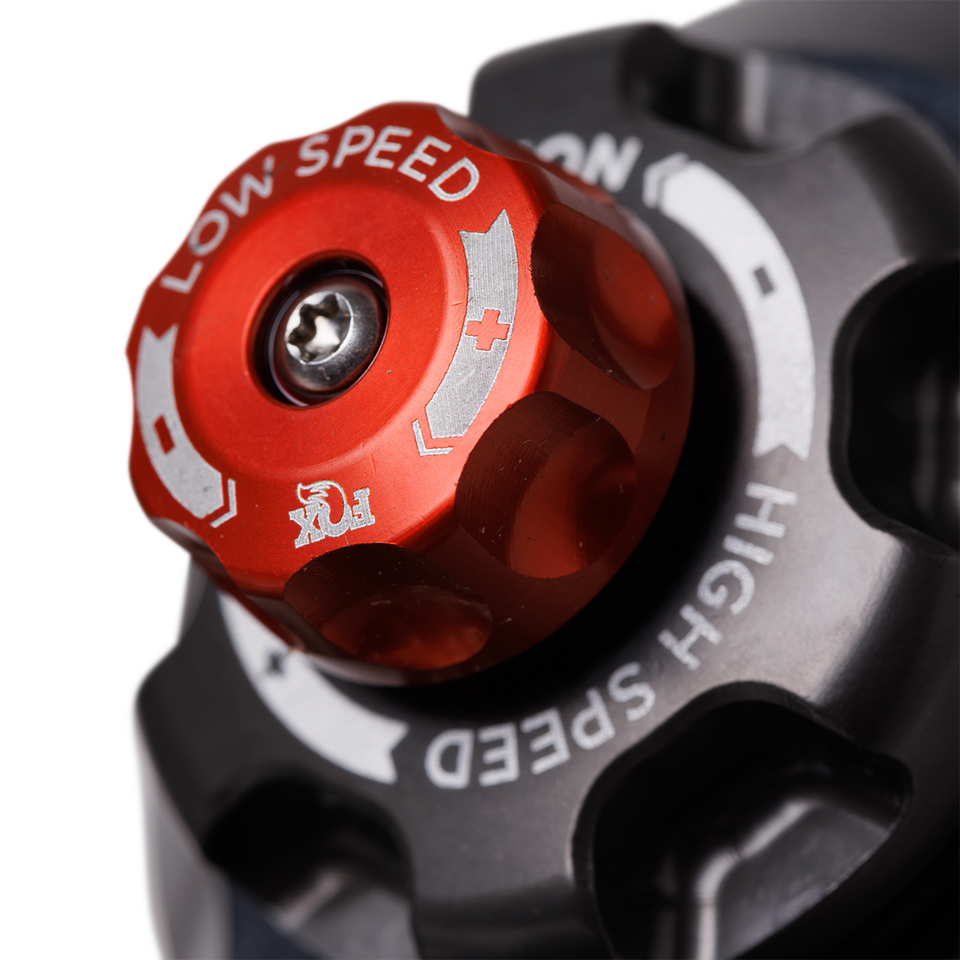

- External Reservoir With DSC EVO Adjuster
- Limited 1 Year Warranty
About Product:
FOX Factory Race Series 2.5 internal bypass shocks deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. patented internal bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type III anodization prevents corrosion and wear of the 2.5 Inch diameter aluminum bodies. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Additional information
| Weight | 90 lbs |
|---|---|
| Dimensions | 38.5 × 19.38 × 11.25 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-06-227 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 198 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
