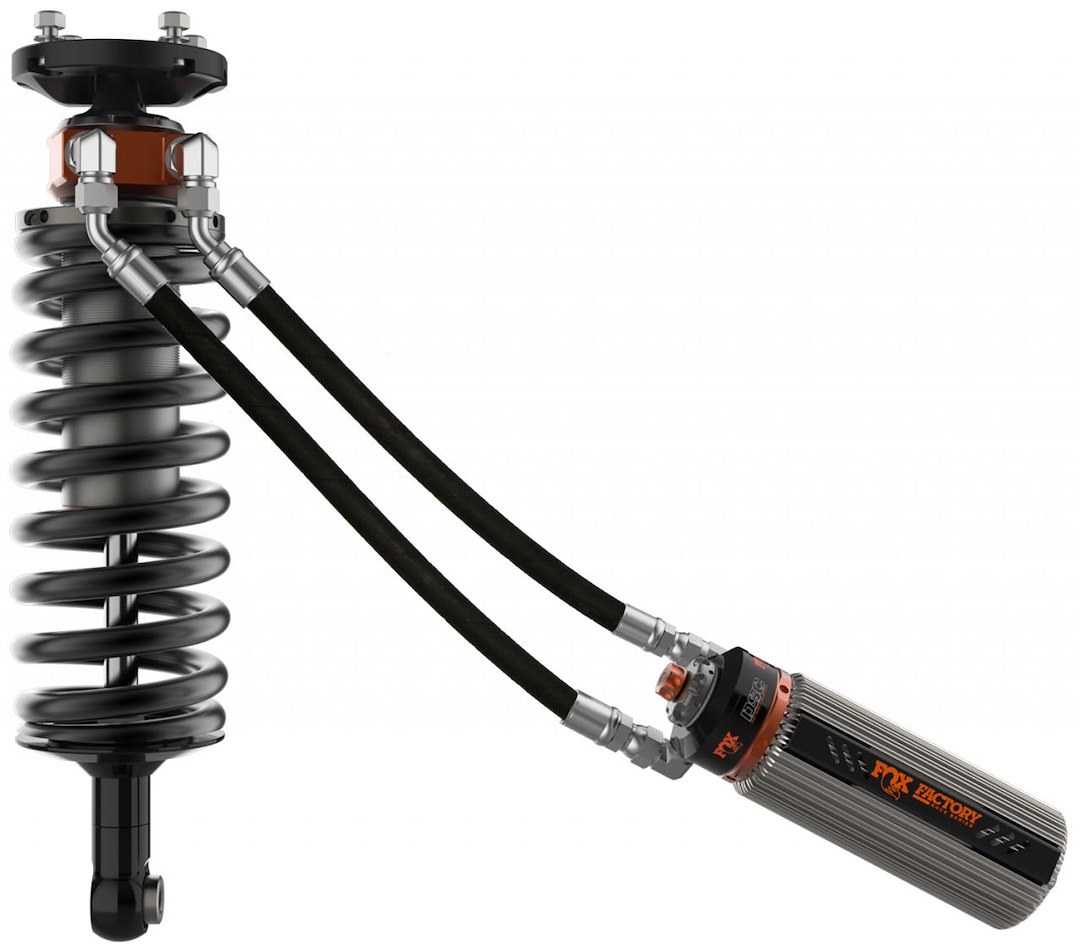

Fox Racing Shox Coil Over Shock Absorber, 3.0 Factory Series, Dual Speed Compression (dsc) Adjustment for High and Low Speed Dampening – 883-06-219
$3,465.96
Fox Racing Shox Coil Over Shock Absorber, 3.0 Factory Series – 883-06-219
Description
Coil Over Shock Absorber; 3.0 Factory Series; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Ride Height Adjustable 2 To 2-1/4 Inch Lift; Single Flat End Coil Spring; Black And Silver; With Remote Reservoir/ Shock Absorber/ Adjustment Collar/ Adjustment Knob/ Spring; Set Of 2
Attributes:
- Adjustable: Yes
- Upper Mounting Type: Stud
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2 To 2-1/4 Inch Lift
- Extended Height (IN): 21.69 Inch
- Compressed Height (IN): 15.65 Inch
- Quantity: Set Of 2
- Valving Type: Application Specific Valving
- Shock Type: Hydraulic
- Shock Body Color: Black
- Shock Body Material: Aluminum
- Spring Finish: Anodized
- Spring Color: Black
- Includes Mounting Hardware: Yes
Features & Benefits:
- 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Type III Anodized Aluminum Body
- Patented, Internal Bypass Design
- Application-Specific Springs
- 7/8 Inch Stainless Steel Shafts
- Vehicle-Specific Tuning Maximizes Performance
- Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
- Finned Reservoir, With DSC Adjuster
- Dual Speed Compression Adjuster Type
- Limited 1 Year Warranty
About Product:
FOX Factory Race Series 3.0 Internal Bypass shocks for the Toyota Tundra deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. A Recirculating Reservoir Bridge enables the continuous exchange of shock fluid between the finned external reservoir and body using a checked port, keeping shock temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3-inch diameter aluminum bodies. Dial in your Tundra for load, environment, and driving style with the DSC adjuster. FOX Internal Bypass shocks deliver the support and confidence you need while driving high-speed through rugged terrain. Experience race-bred performance next time you leave the pavement.
Additional information
| Weight | 48 lbs |
|---|---|
| Dimensions | 38.5 × 19.38 × 11.25 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-06-219 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 46 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
