Fox Racing Shox Shock Absorber, 2.0 Performance Series, Hydraulic/ Nitrogen Gas Charged, With External Reservoir, 1 Year Factory Warranty – 985-24-174
$334.74
Fox Racing Shox Shock Absorber, 2.0 Performance Series – 985-24-174
Description
Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Non Adjustable Valving; 30.02 Extended Height/ 17.9 Compressed Height; EB3 Top Mount/ ES1 Bottom Mount; Without Shock Boot; ALUMINUM; Single
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Internal Design: Monotube
- Adjustable Valving: No
- Extended Length (IN): 29.95 Inch
- Compressed Length (IN): 17.85 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Body Color: Silver
- Quantity: Single
- Universality: Vehicle Specific
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- Body- 2 Inch Impact Extruded 6061-T6 Aluminum Will Resist Rust Over Time
- Clear-Anodized For A Durable Finish
- 2 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized Reservoir
- Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
- 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Race-Developed High-Flow Piston Design
- Application Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- Quiet Nitrile Rubber Allows For Increased Suspension Articulation
- Limited 1 Year Warranty
About Product:

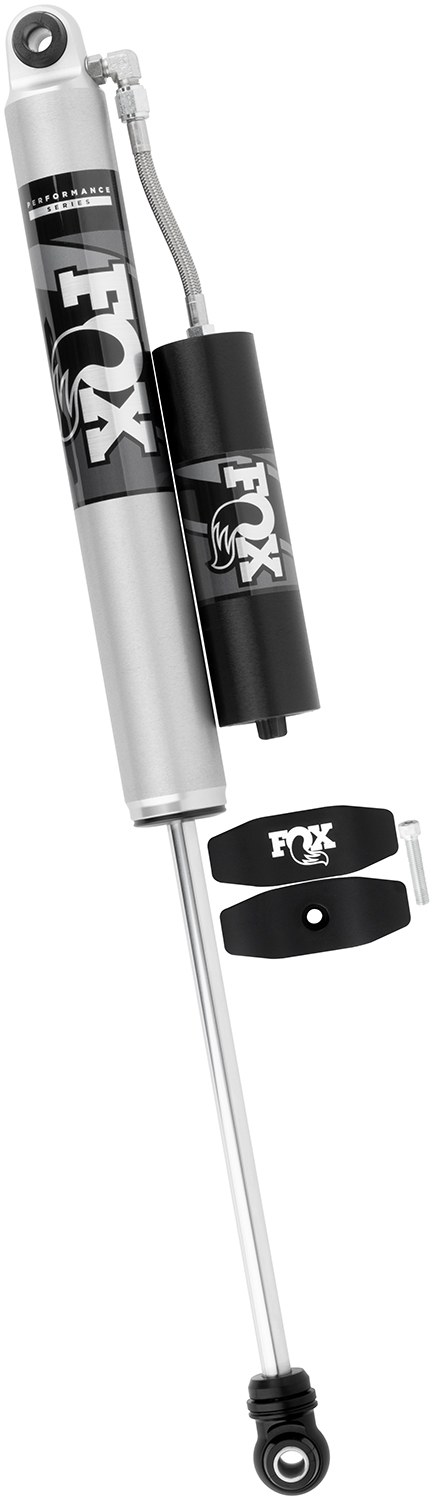

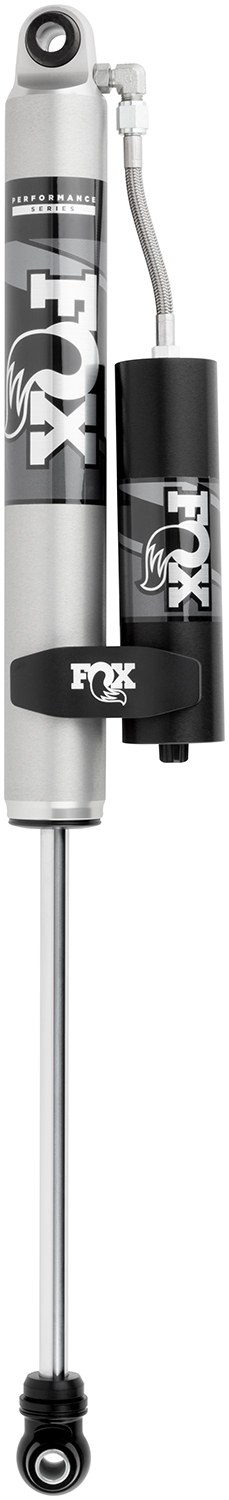

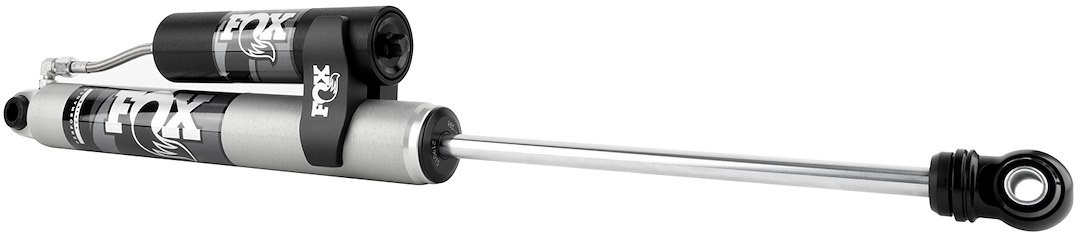

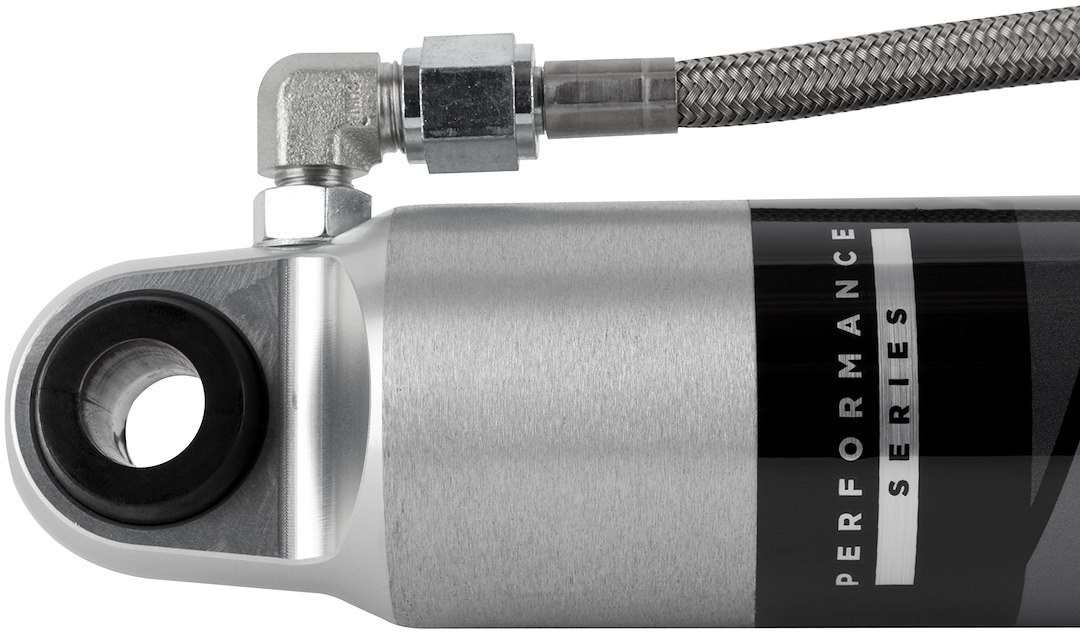

The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX’s industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design comes with a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering a striking race look. Comes with black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions.
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 41 × 6 × 3 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 985-24-174 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 458 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
