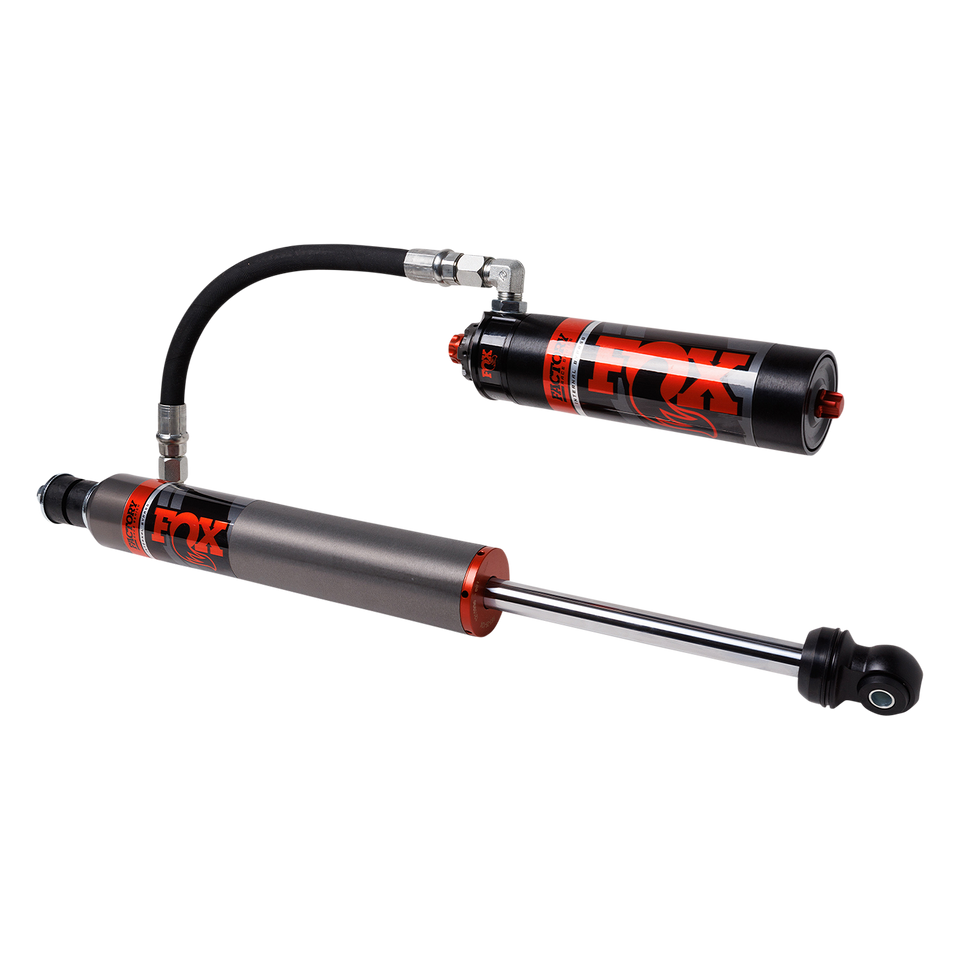

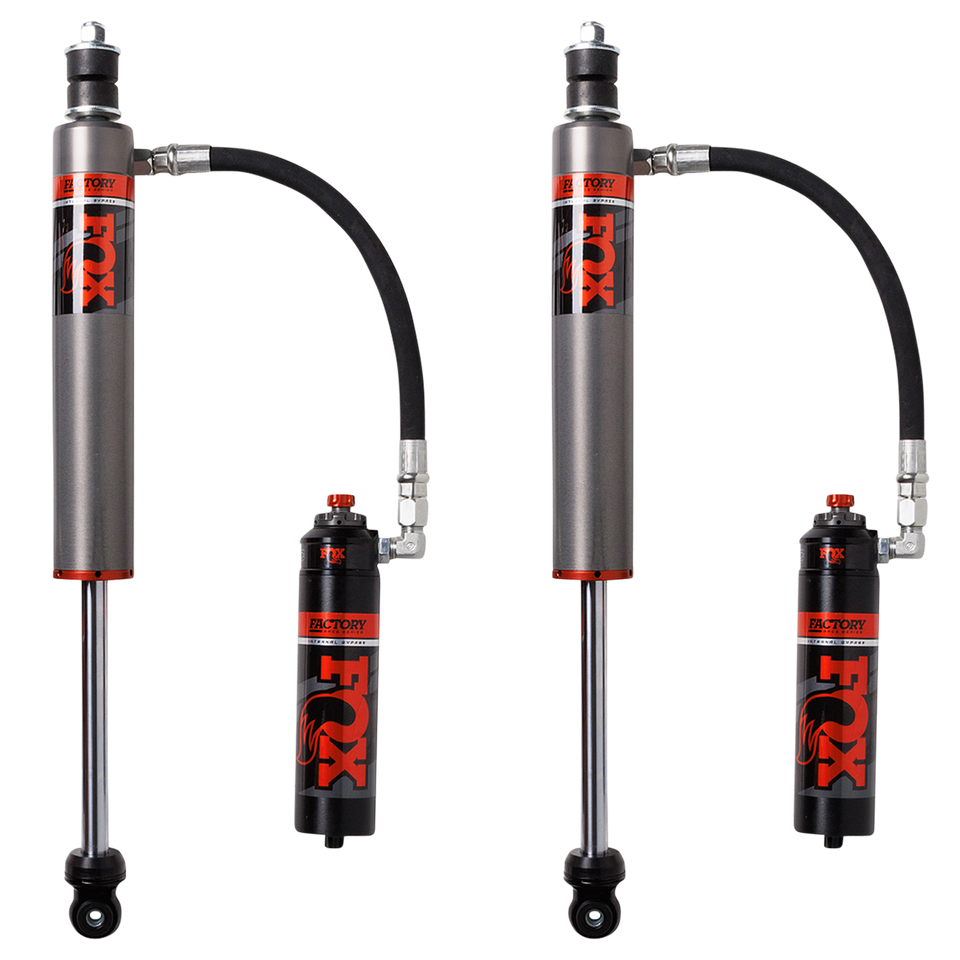

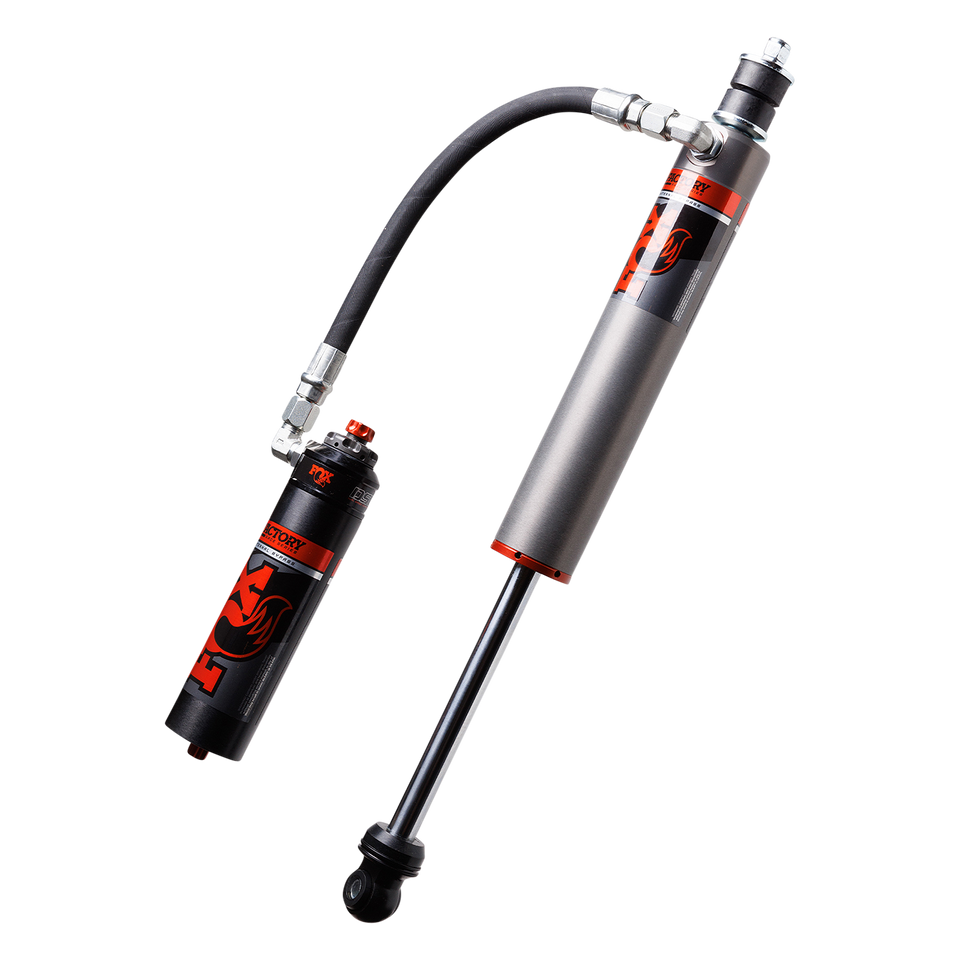

Fox Racing Shox Shock Absorber, 2.5 Factory Series, Hydraulic/ Nitrogen Gas Charged, With Remote Reservoir, Limited 1 Year Warranty – 883-26-123
$1,877.73
Fox Racing Shox Shock Absorber, 2.5 Factory Series – 883-26-123
Description
Shock Absorber; 2.5 Factory Series; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; Limited 1 Year Warranty; Adjustable Valving; Without Shock Boots; Aluminum; Set Of 2
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 22.9 Inch
- Compressed Length (IN): 14.35 Inch
- Upper Mounting Style: Strut
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 1
Features & Benefits:
- 2.5 Inch Impact Extruded And CNC Machined 6061-T6 Hard Anodized Aluminum Body
- Hard-Anodized For A Durable Finish
- 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel
- Race-Developed High-Flow Piston Design
- Redundant Sealing Pack System Main Seal Wiper Seal Scraper Seal
- PTFE-Lined Heat-Treated Alloy Steel Spherical
- Limited 1 Year Warranty
About Product:

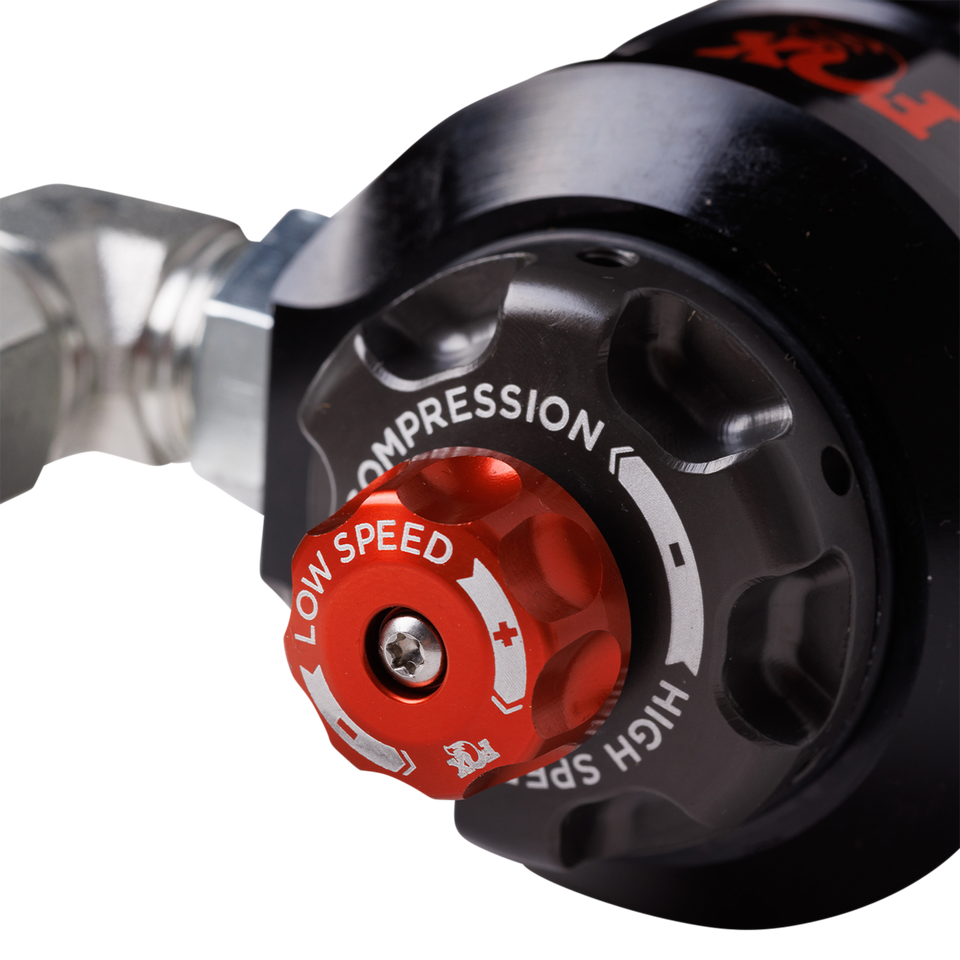

FOX Factory Race Series 2.5 Internal Bypass shocks for the Toyota Tacoma deliver velocity and position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Type III anodization prevents corrosion and wear of the 2.5 Inch diameter aluminum bodies. Dial in your Tacoma for load, environment, and driving style with the DSC adjuster. External reservoirs increase oil capacity and house an internal floating piston (IFP) to separate the shock oil and nitrogen charge, maintaining consistent damping and keeping shock temperatures cool.
Additional information
| Weight | 36 lbs |
|---|---|
| Dimensions | 33 × 15 × 15 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-26-123 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 410 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
