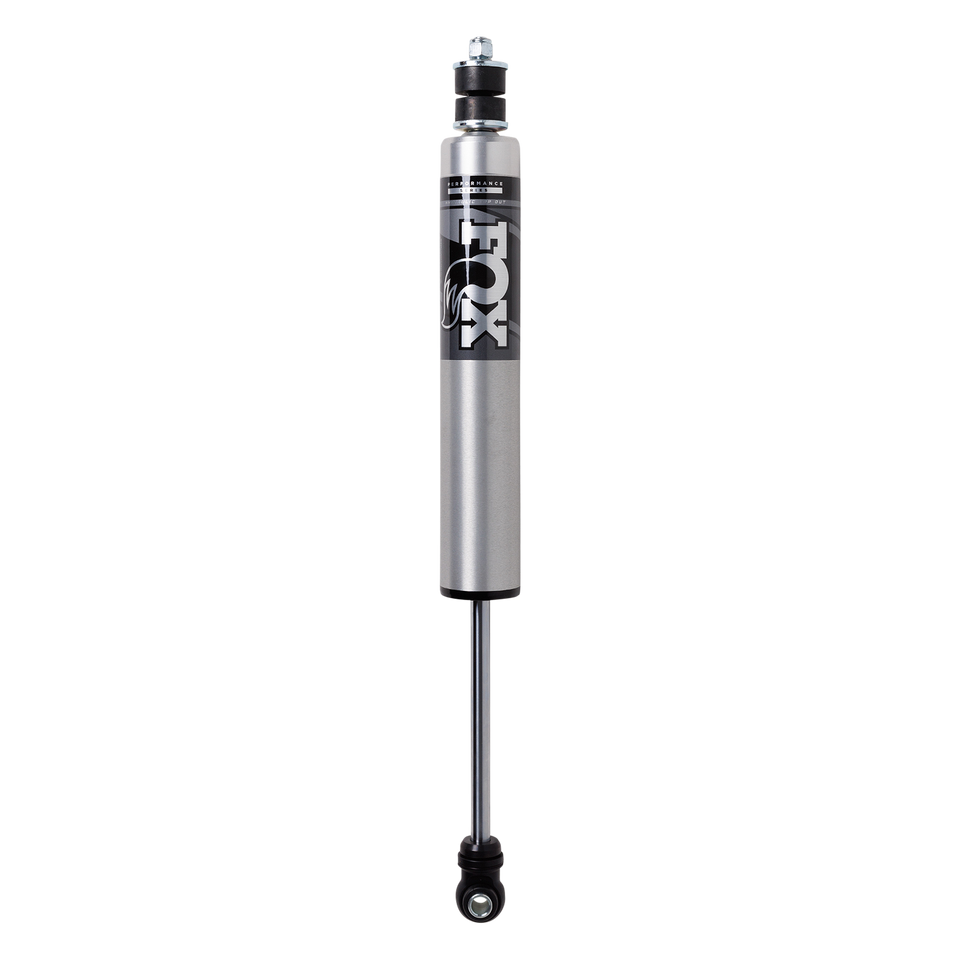

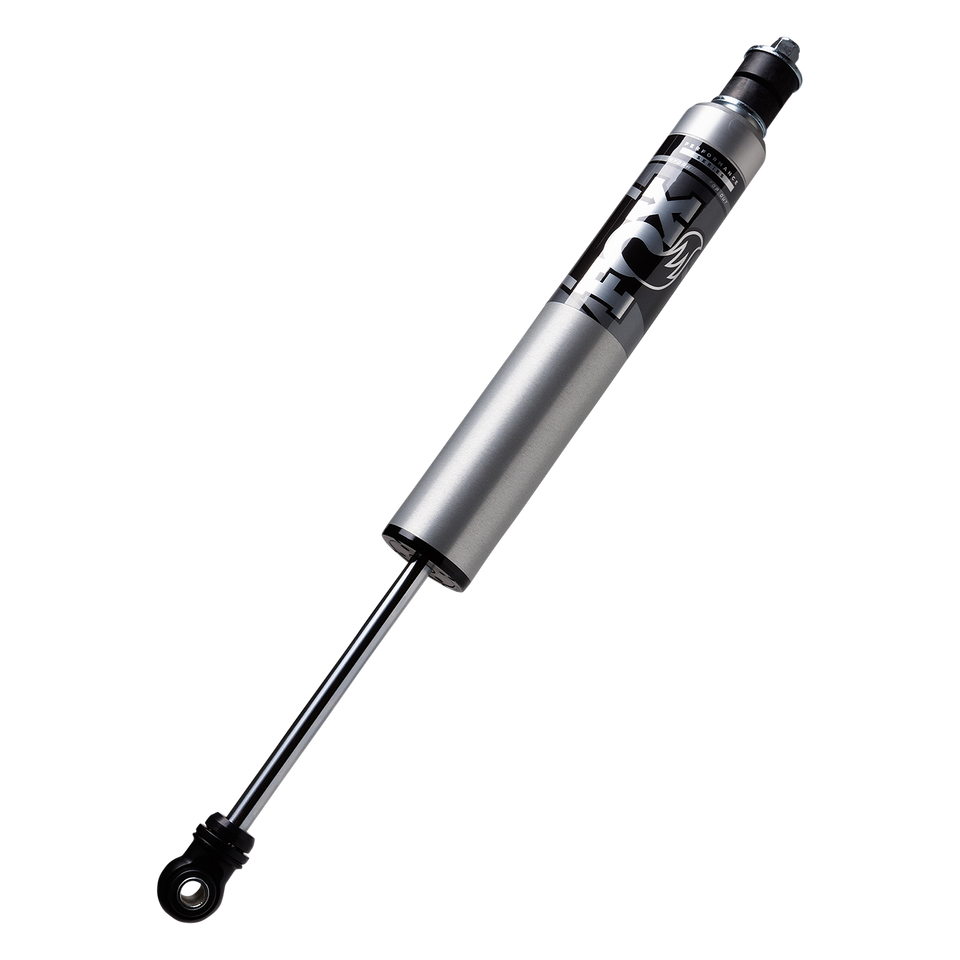

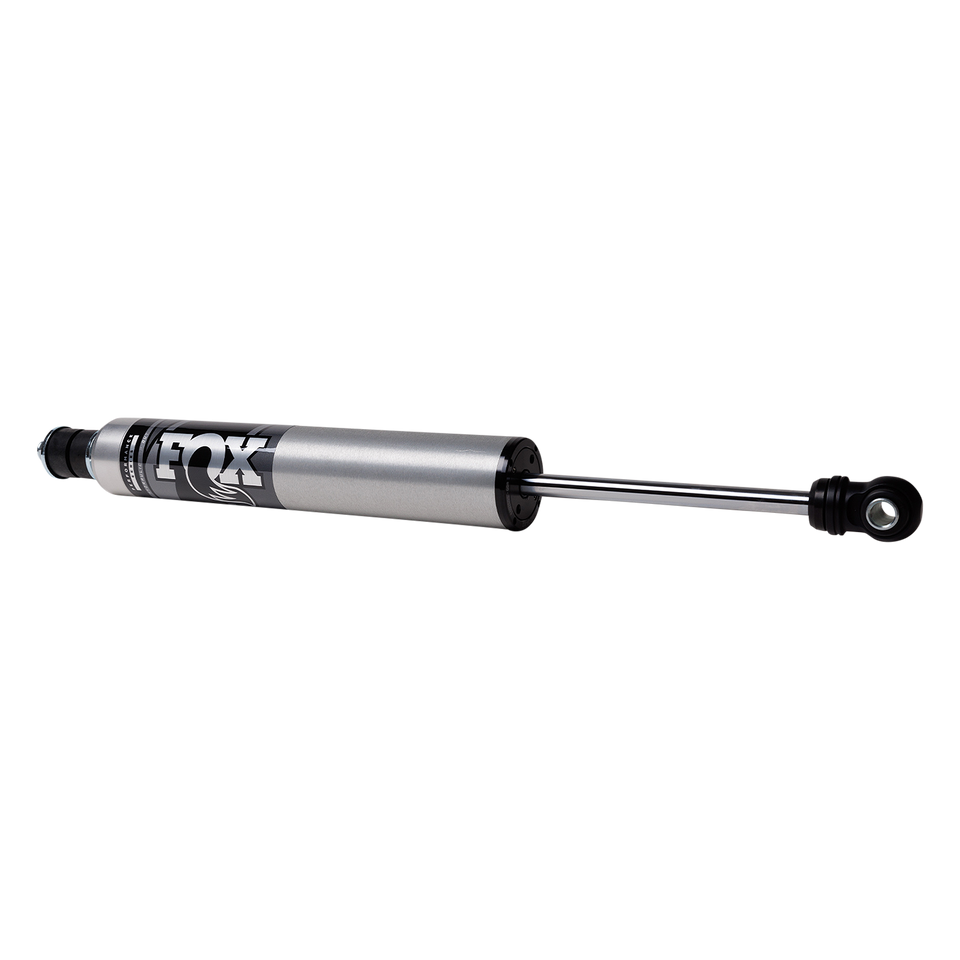

Fox Racing Shox Shock Absorber, 2.5 Performance Series, Hydraulic/ Nitrogen Gas Charged, Without Reservoir, Limited 1 Year Warranty – 987-24-004
$325.89
Fox Racing Shox Shock Absorber, 2.5 Performance Series – 987-24-004
Description
Shock Absorber; 2.5 Performance Series; Hydraulic/ Nitrogen Gas Charged; Without Reservoir; Limited 1 Year Warranty; Non Adjustable Valving; Without Shock Boots; Zinc Plated; Single
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 21.99 Inch
- Compressed Length (IN): 14.8 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Velocity Sensitive Valving
- Ride Height Adjustable: Yes
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- 2-1/2 Inch Impact Extruded And CNC Machined 6061-T6 Hard Anodized Aluminum Body Resists Rust Over Time
- External Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
- Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
- 7/8 Inch Hard Chrome Plated, Heat-Treated Alloy Steel Shaft
- Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
- Performance Elite Shocks Provide Improved Damping In Any Terrain
- Incredible Performance And Precise Control That Performance Elite Series 2.5 Reservoir Shocks Deliver
- Body Plating: Hard-Anodized For A Durable Finish
- Limited 1 Year Warranty
About Product:

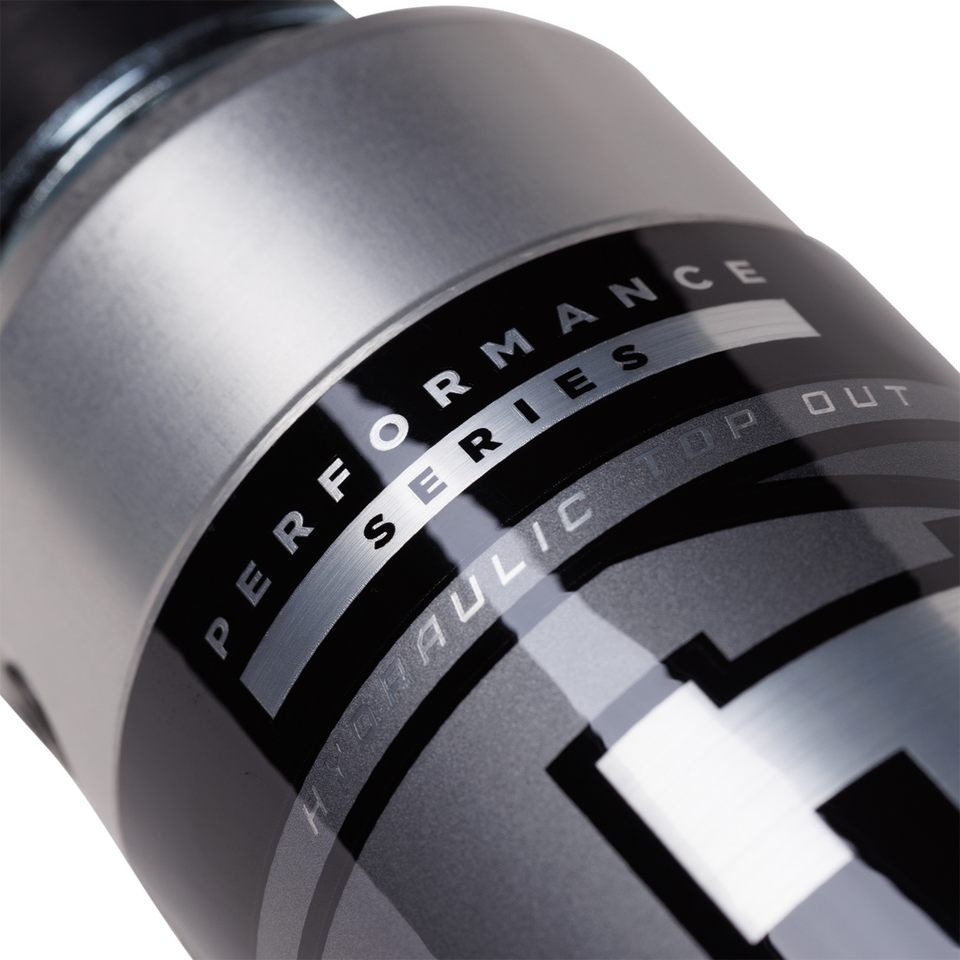

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2-1/2 Inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 26 × 3 × 3 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 987-24-004 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 878 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
