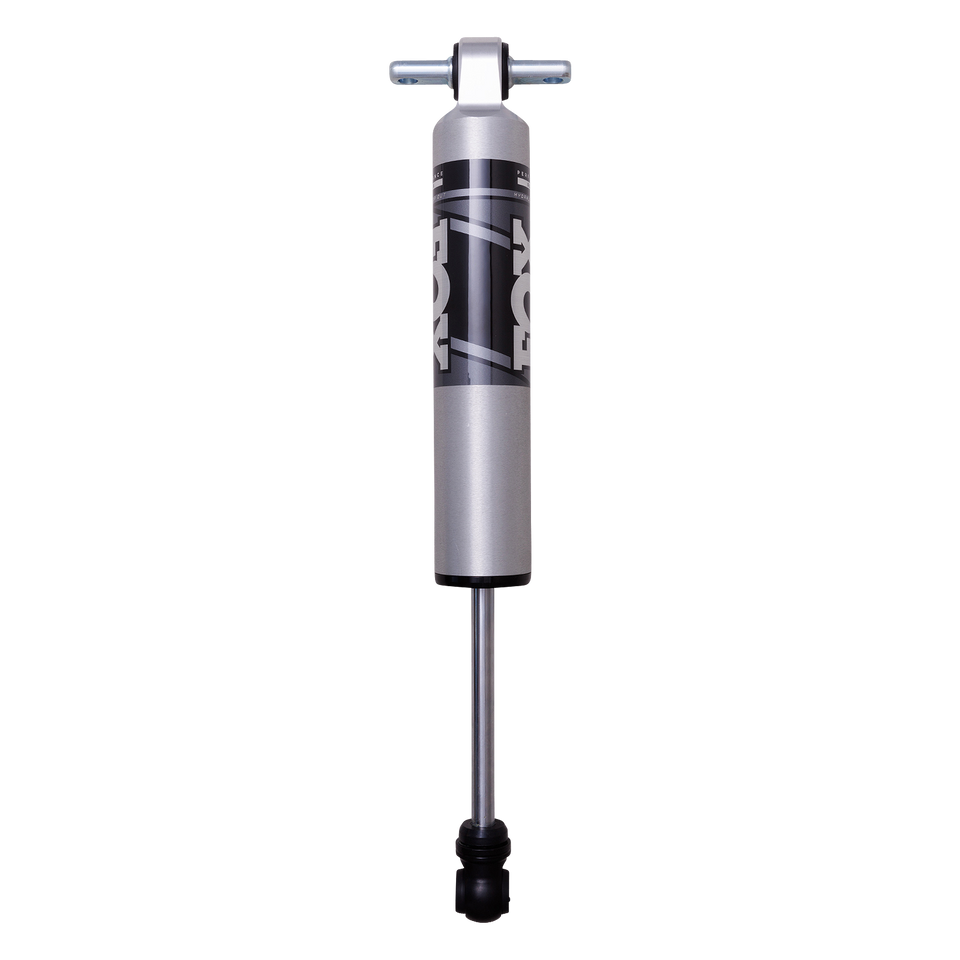

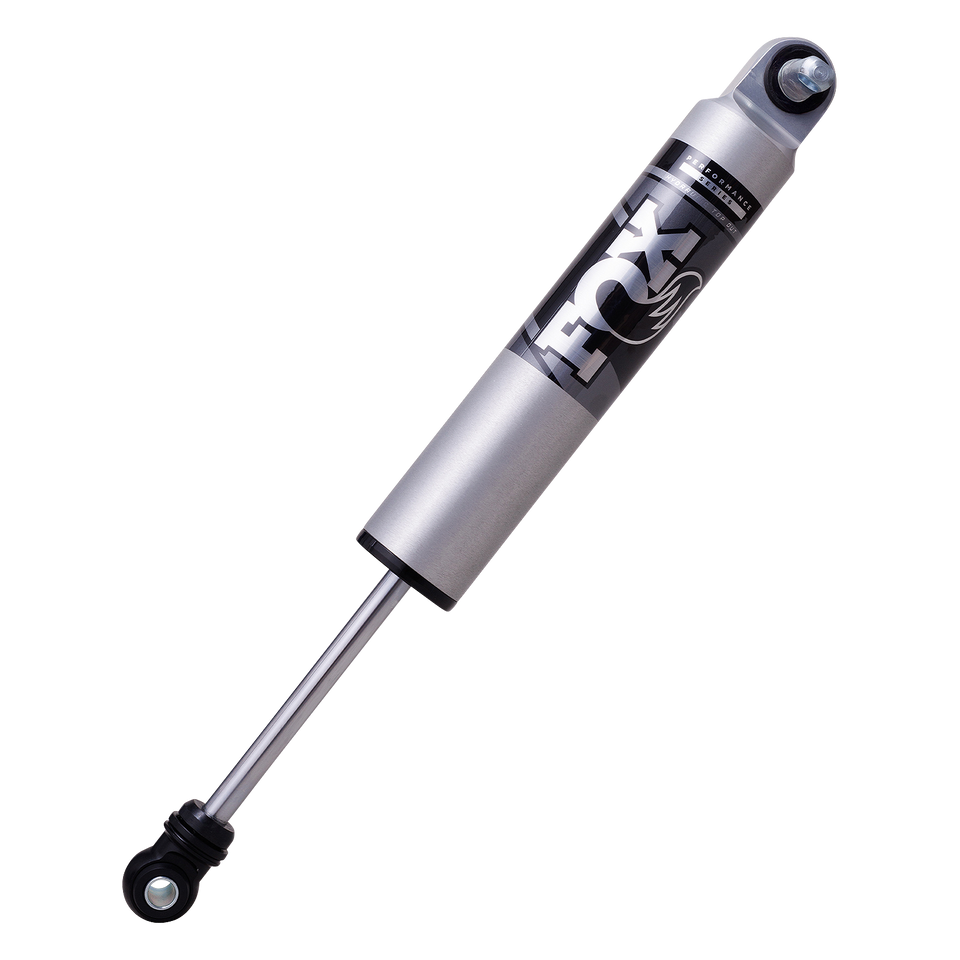

Fox Racing Shox Shock Absorber, 2.5 Performance Series, Hydraulic/ Nitrogen Gas Charged, Without Reservoir, Limited 1 Year Warranty – 987-24-024
$325.89
Fox Racing Shox Shock Absorber, 2.5 Performance Series – 987-24-024
Description
Shock Absorber; 2.5 Performance Series; Hydraulic/ Nitrogen Gas Charged; Without Reservoir; Limited 1 Year Warranty; Non Adjustable Valving; Without Shock Boots; Zinc Plated; Single
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 21.48 Inch
- Compressed Length (IN): 14.7 Inch

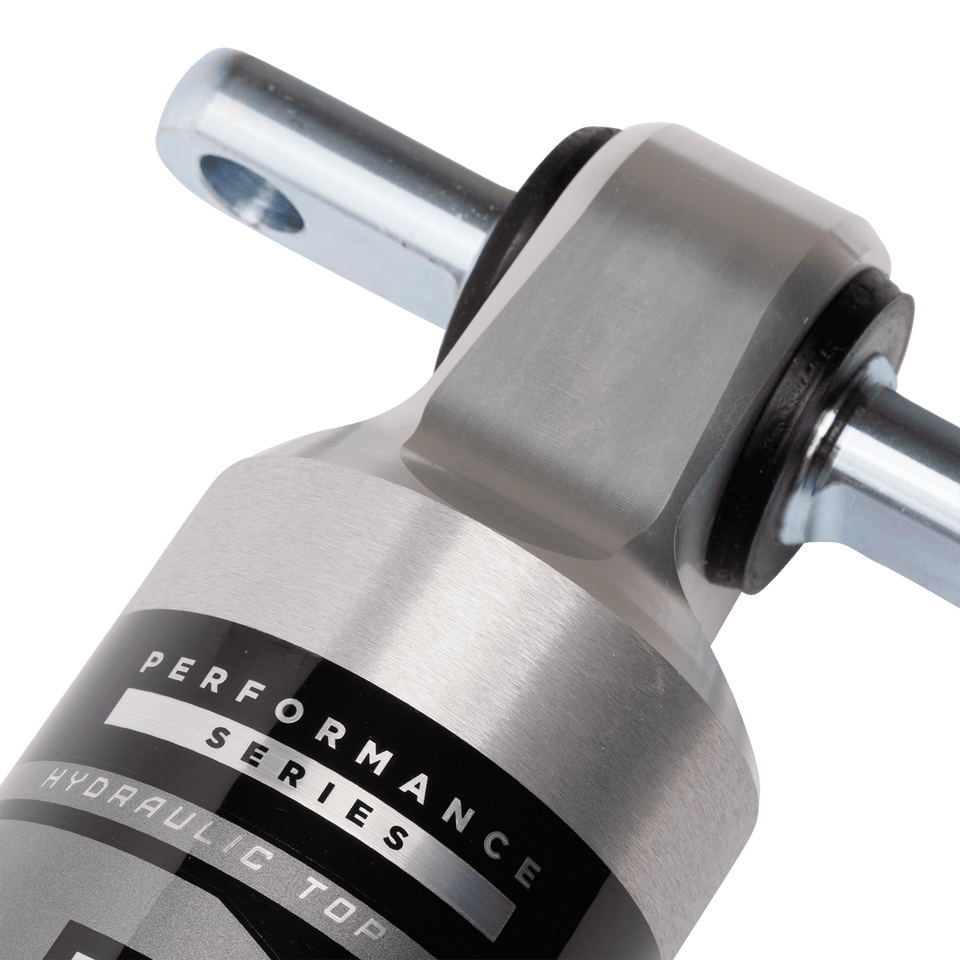

- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Clevis
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Gray
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body
- Type II Clear-Anodized Body Plating
- High Flow Velocity Sensitive Damping
- Engineered With 5/8 Inch Hard Chrome Shaft
- Shock Absorber Is Equipped With An Internal Floating Piston

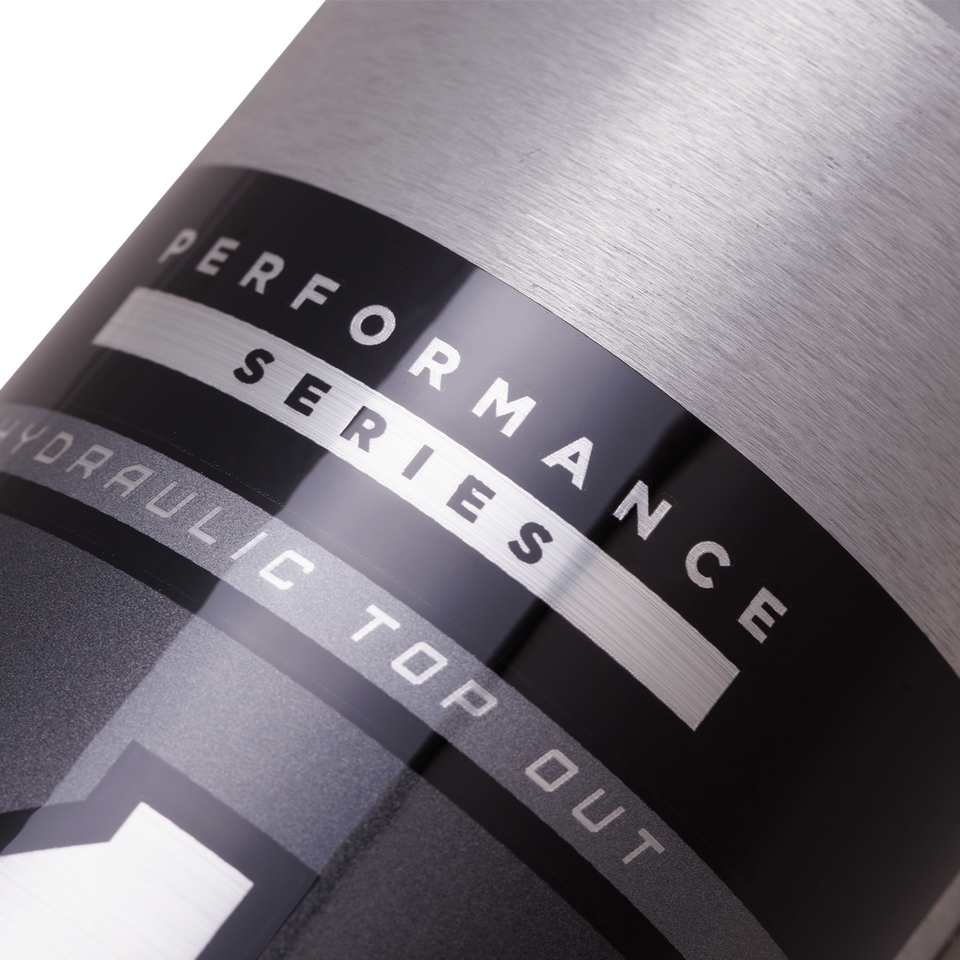

- Shock Absorber Features A Hydraulic Top Out Piston
- Limited 1 Year Warranty
About Product:
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2-1/2 inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed. HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 26 × 3 × 3 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 987-24-024 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 495 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
