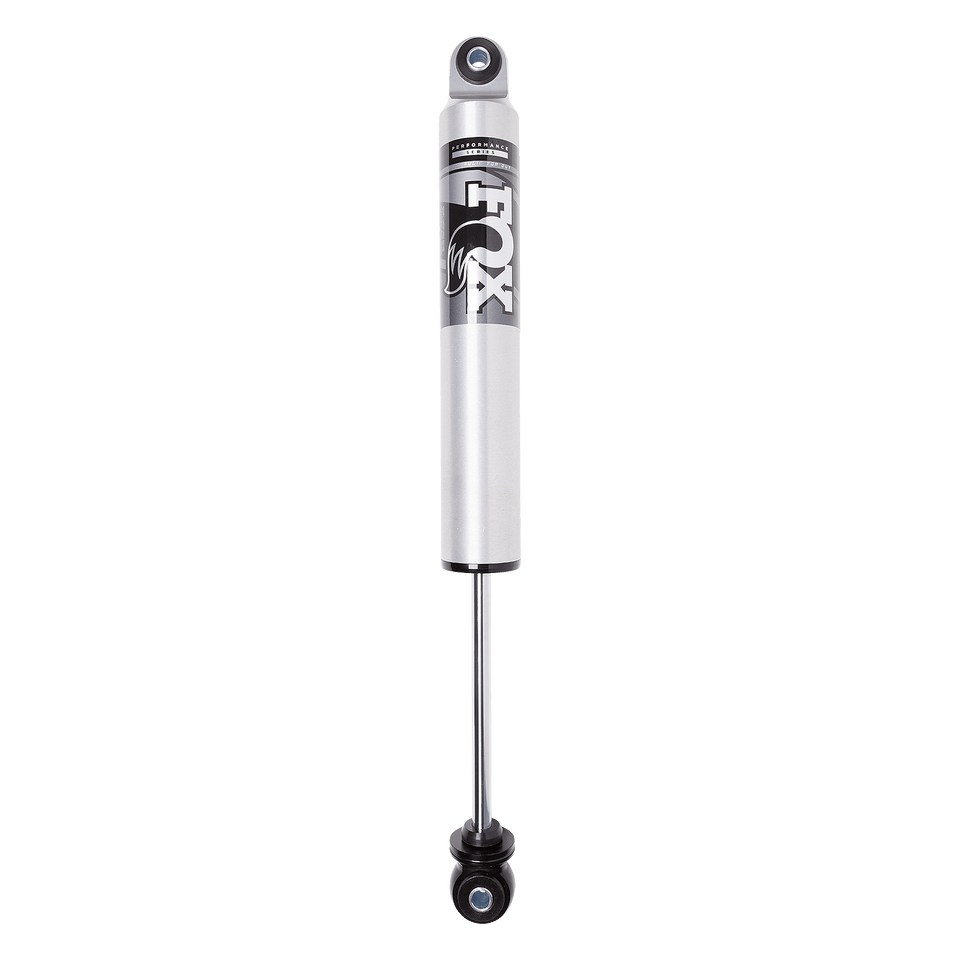

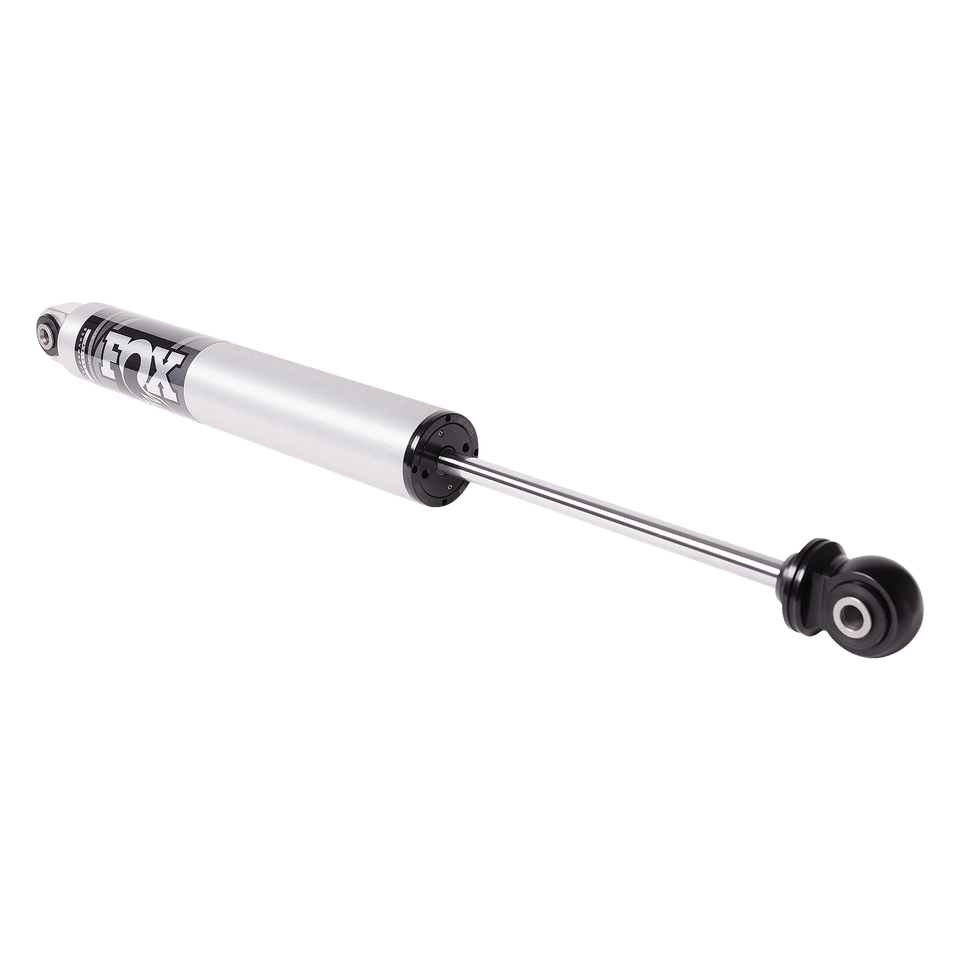

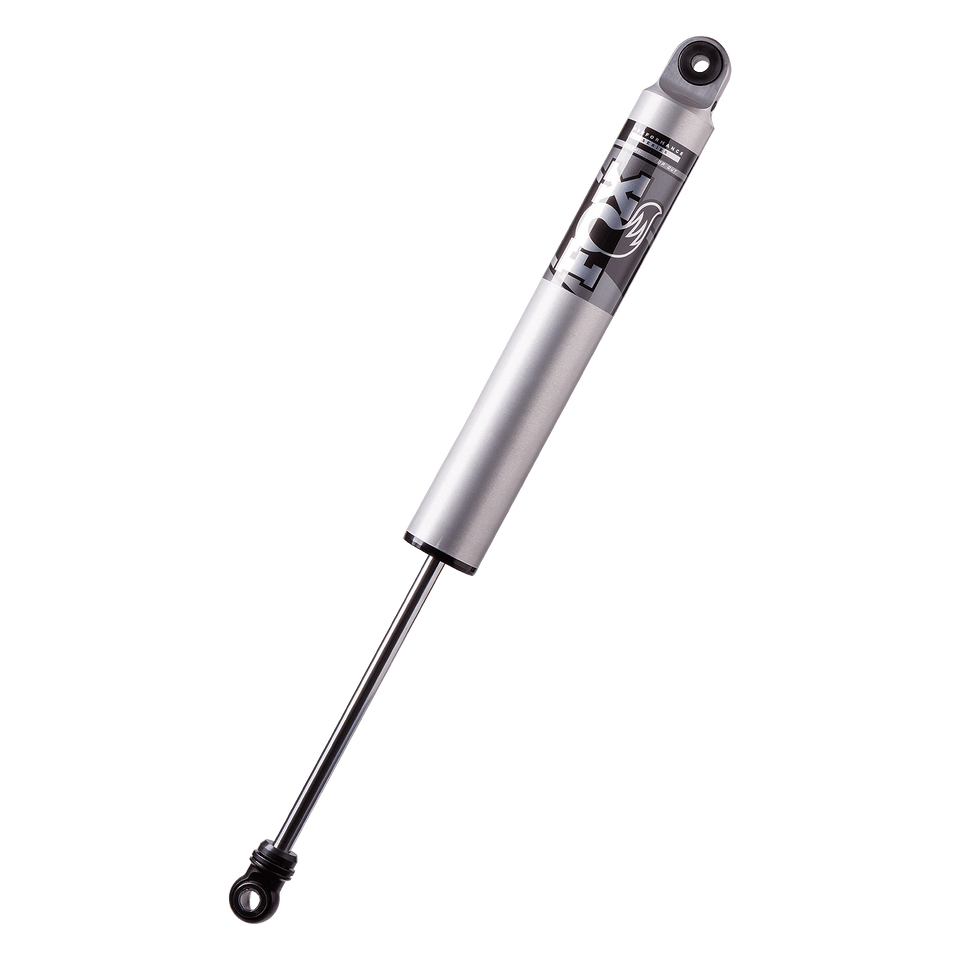

Fox Racing Shox Shock Absorber, 2.5 Performance Series, Hydraulic/ Nitrogen Gas Charged, Without Reservoir, Limited 1 Year Warranty – 987-24-050
$310.85
Fox Racing Shox Shock Absorber, 2.5 Performance Series – 987-24-050
Description
Shock Absorber; 2.5 Performance Series; Hydraulic/ Nitrogen Gas Charged; Without Reservoir; Limited 1 Year Warranty; Non Adjustable Valving; Without Shock Boots; Zinc Plated; Single
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 30.3 Inch
- Compressed Length (IN): 19 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Silver
- Rod Diameter (IN): 5/8 Inch
- Valving Type: Non Adjustable Valving
- Ride Height Adjustable: No
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- 2-1/2 Inch Impact Extruded 6061-T6 Aluminum Shock Body

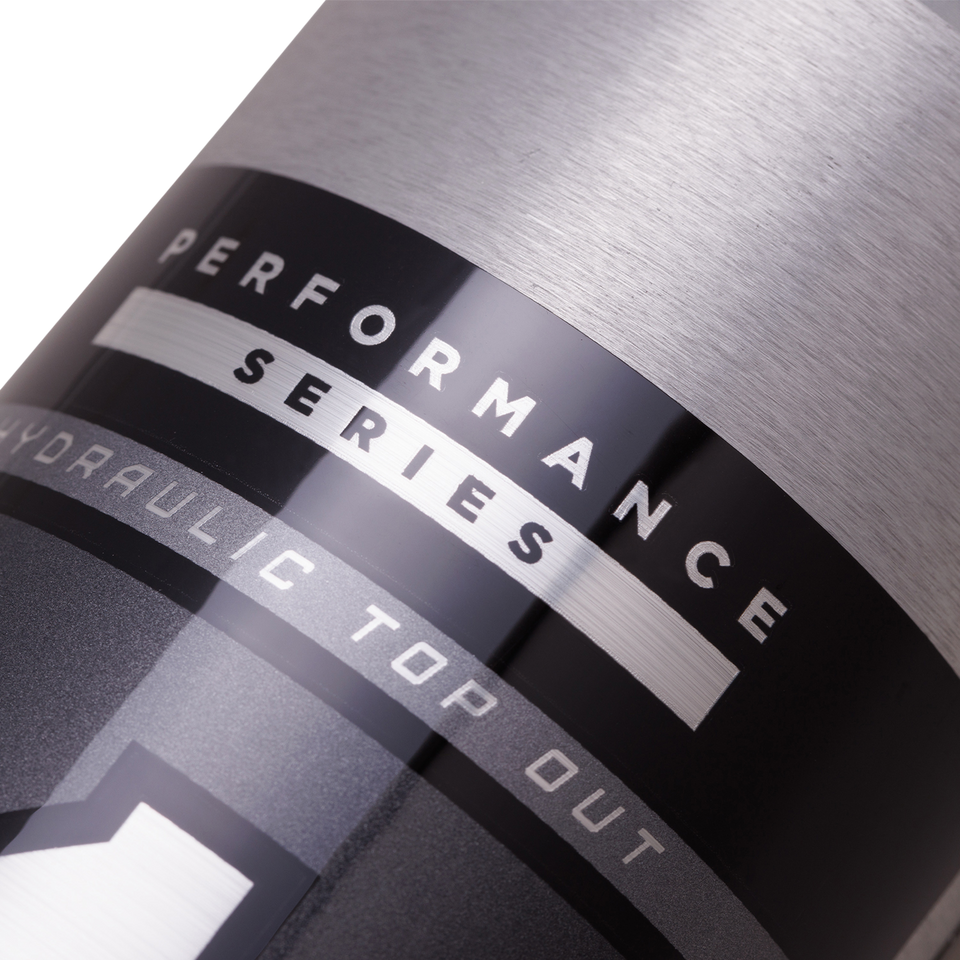

- Type II Clear Anodized Body Plating
- High Flow Velocity Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Features An Internal Floating Piston
- Hydraulic Top Out Technology Offers Position Sensitive Rebound Damping For Better Control On And Off-Road
- Limited 1 Year Warranty
About Product:
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position sensitive technology vehicle specific valving and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2-1/2 inch shock body features an internal floating piston (IFP) to separate the shock oil from the high pressure nitrogen optimizing damping. Hydraulic Top Out (HTO) technology offers usable position sensitive rebound damping control on and off the pavement. HTO reduces harsh top outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed, HTO is particularly beneficial after installing heavier aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 26 × 3 × 3 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 987-24-050 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 174 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
