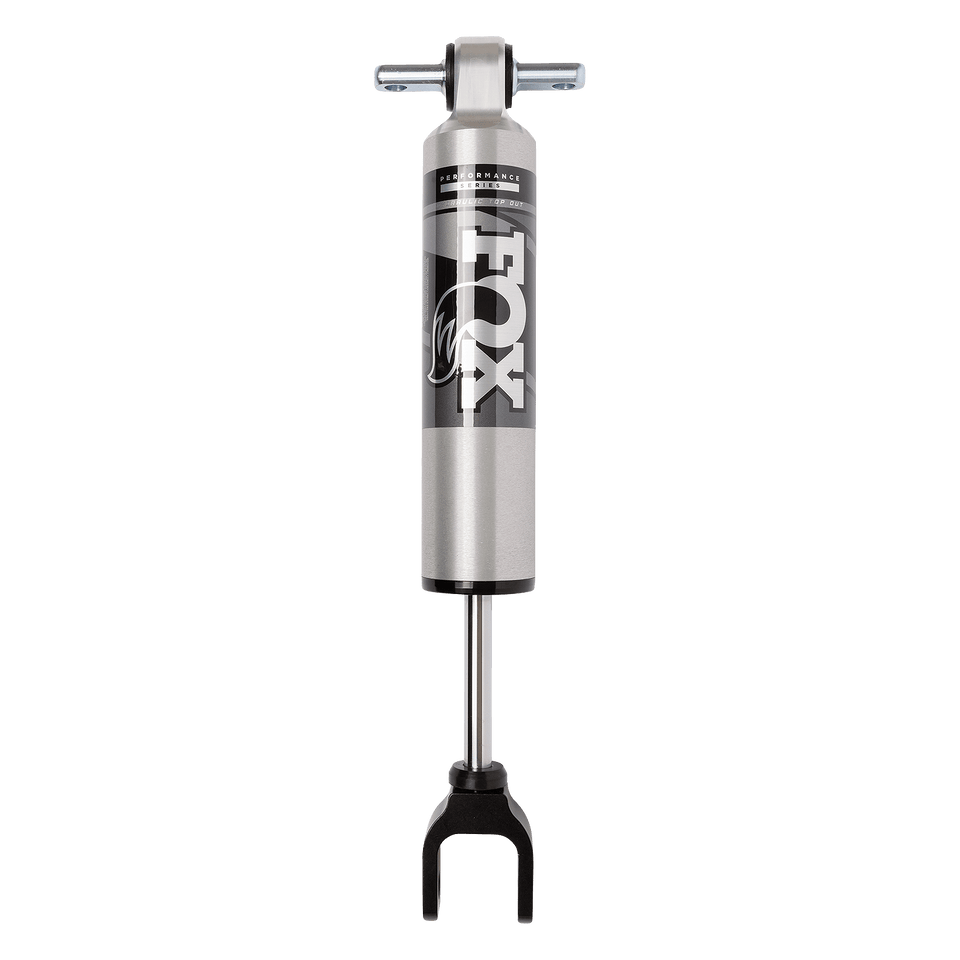

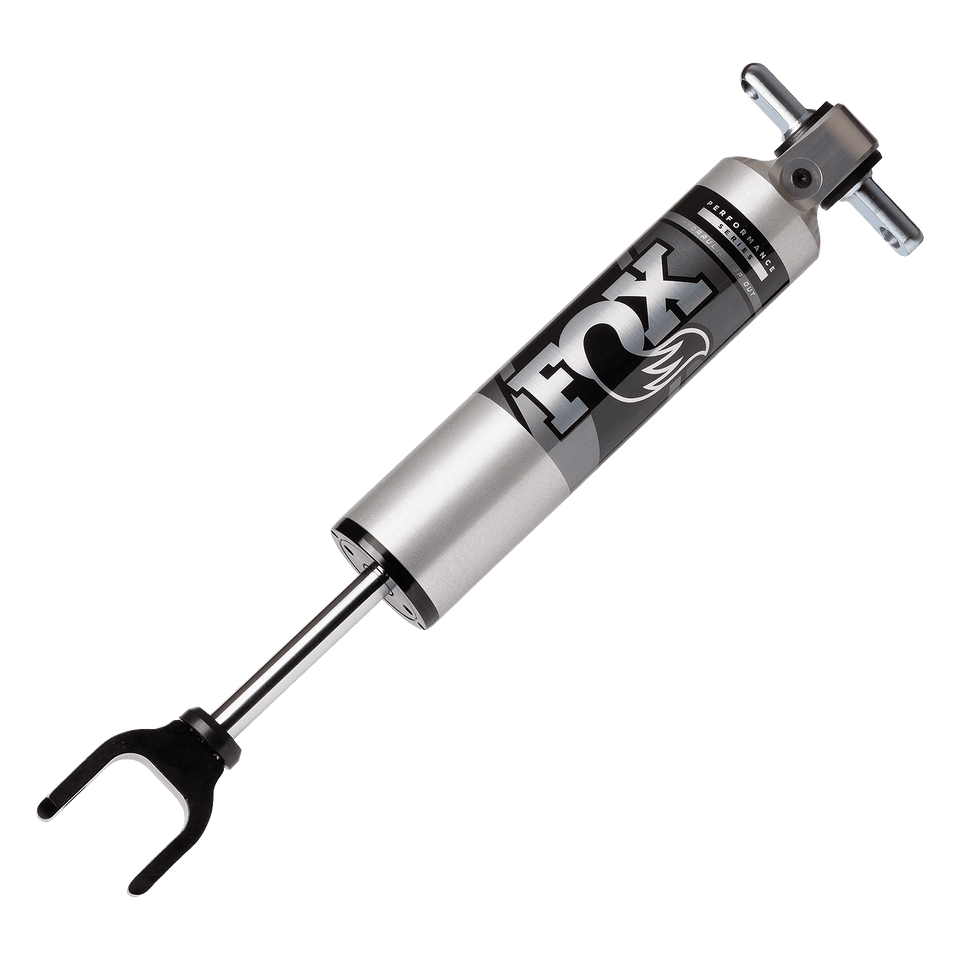

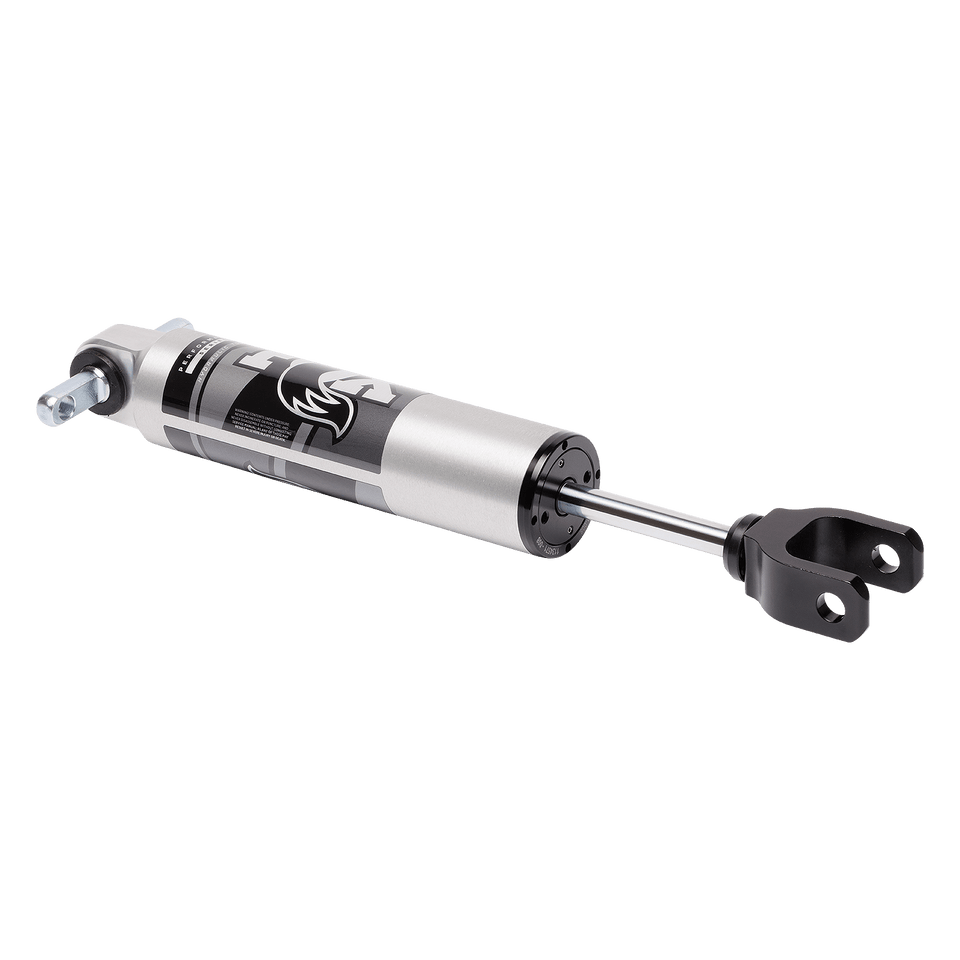

Fox Racing Shox Shock Absorber, 2.5 Performance Series, Hydraulic, Without Reservoir, Limited 1 Year Warranty, Non Adjustable Valving – 987-24-033
$325.89
Fox Racing Shox Shock Absorber, 2.5 Performance Series, Hydraulic – 987-24-033
Description
Shock Absorber; 2.5 Performance Series; Hydraulic; Without Reservoir; Limited 1 Year Warranty; Non Adjustable Valving; Without Shock Boots; Zinc Plated; Single
Attributes:
- Type: Hydraulic
- With Coil Spring: No
- Extended Length (IN): 21-1/4 Inch
- Compressed Length (IN): 14.77 Inch

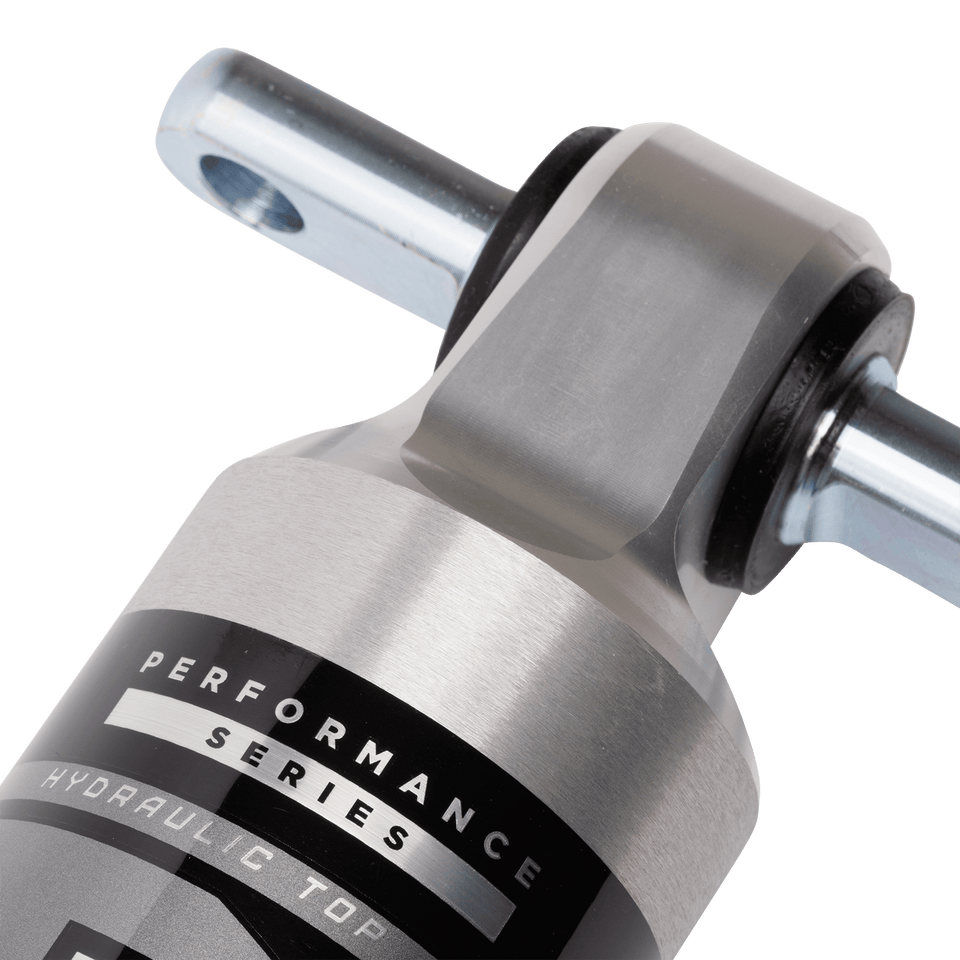

- Upper Mounting Style: Cross Pin
- Lower Mounting Style: Clevis
- Adjustable Valving: No
- Quantity: Single
- Universality: Vehicle Specific
- Body Color: Gray
- Rod Diameter (IN): 5/8 Inch
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: No
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- 2.5 Inch Impact Extruded Aluminum Shock Body
- Type II Clear-Anodized Body Plating
- High-Flow Velocity-Sensitive Damping
- 5/8 Inch Hard Chrome Shaft
- Internal Floating Piston (IFP)
- Hydraulic Top Out (HTO) Piston
- Limited 1 Year Warranty
About Product:
FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. Type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5 Inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping. Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed. HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification.
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 26 × 3 × 3 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 987-24-033 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 495 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
