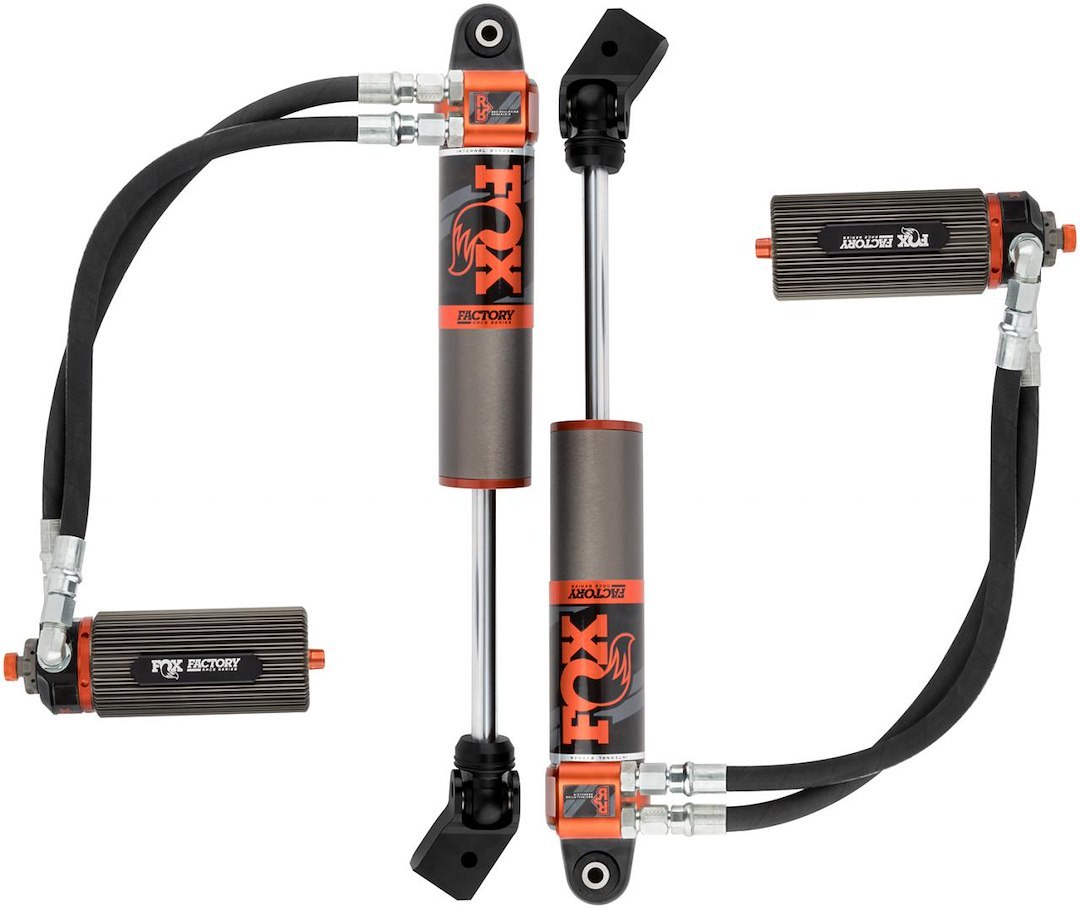

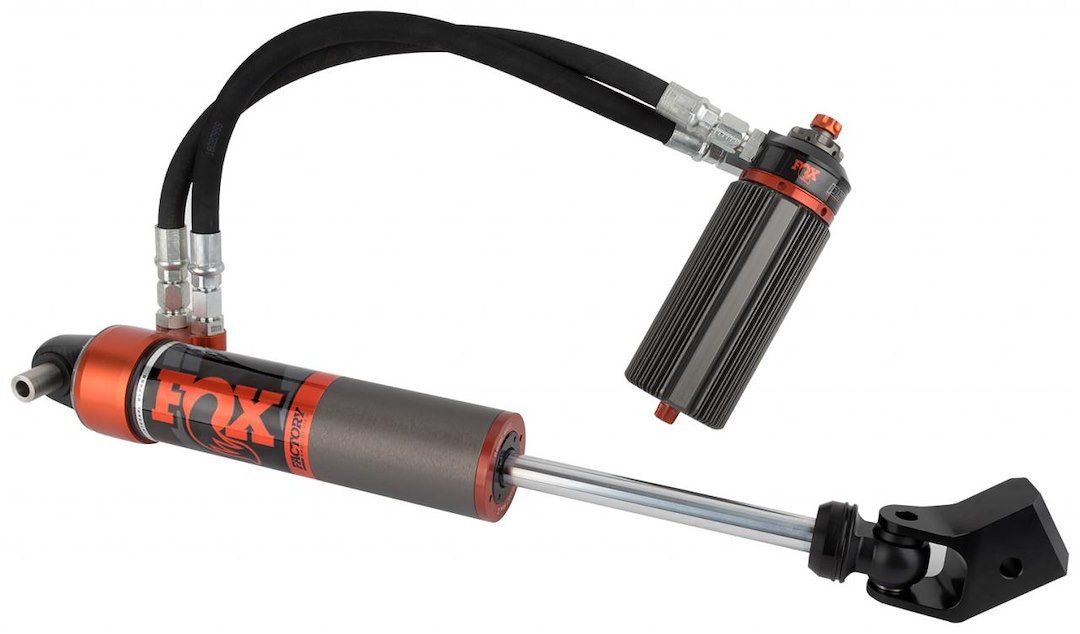

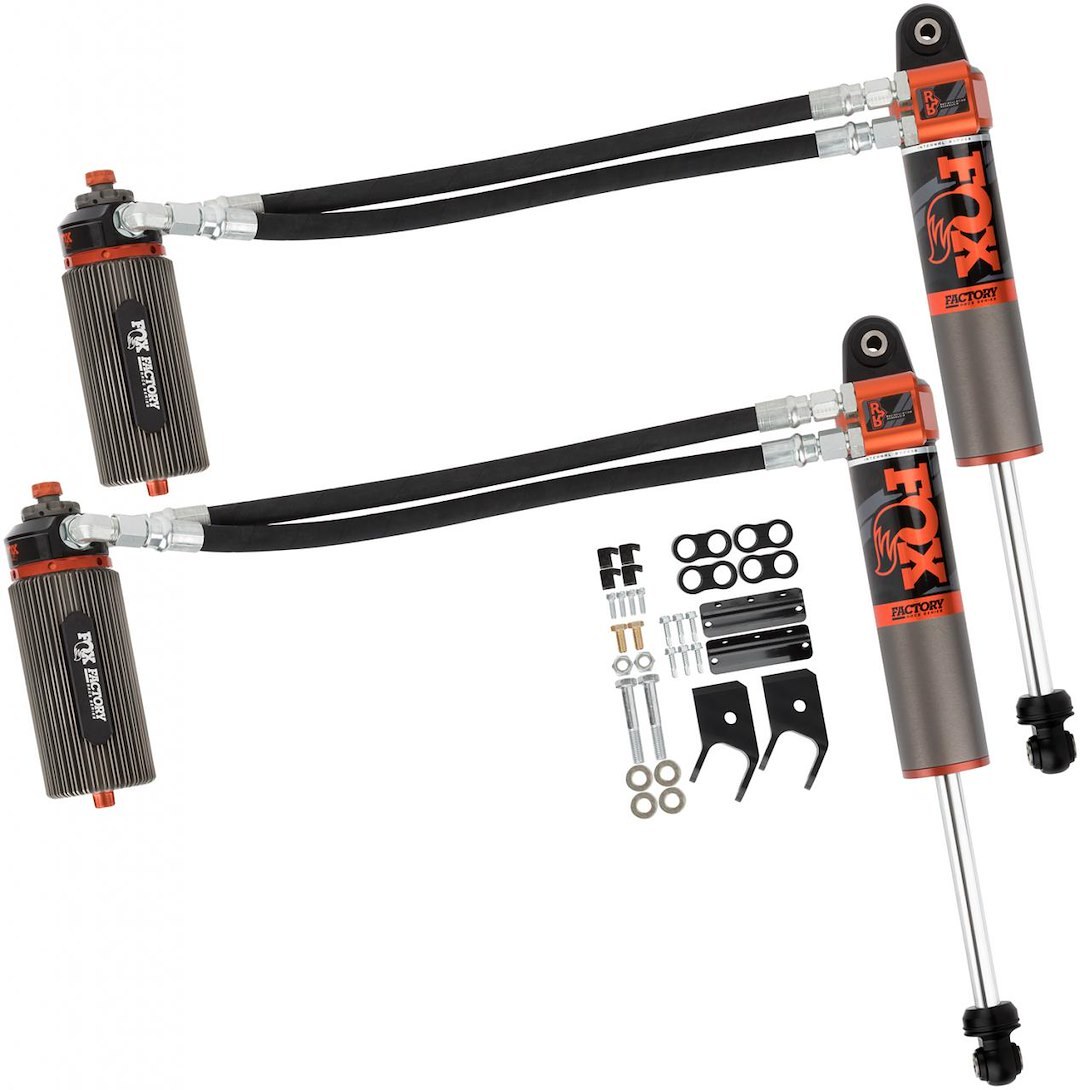

Fox Racing Shox Shock Absorber, 3.0 Factory Series, Hydraulic/ Nitrogen Gas Charged, 1 Year Factory Warranty – 883-26-057
$3,005.64
Fox Racing Shox Shock Absorber, 3.0 Factory Series – 883-26-057
Description
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; 1 Year Factory Warranty; Simultaneous Rebound and Compression Valving; 24.540 Extended Height/ 15.780 Compressed Height; EYELET Top Mount/ EYELET Bottom Mount; Without Shock Boot; Aluminum; Set Of 2
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 24.54 Inch
- Compressed Length (IN): 15.78 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Internal Design: Monotube
- Body Color: Orange
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Simultaneous Compression And Rebound Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Hardware: Yes
- Includes Boot: No
- Estimated Install Time (Hours): 1
Features & Benefits:
- 3 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel
- Body Plating: Hard-Anodized For A Durable Finish
- Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast
- Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components
- 7/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Shaft
- Race-Developed High-Flow Piston Design
- Application Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth Bearing
- Limited 1 Year Warranty
About Product:
The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail. These hard-anodized, aluminum-bodied shocks are engineered with precision-machined aluminum components and race-bred internal valving. They are designed to bolt onto your 2 to 3 Inch aftermarket suspension lift kit using OEM shock pivots. Featuring NEW remote Recirculating Reservoir Bridge and hard-anodized, CNC-machined aluminum remote reservoir with external fins that act as a heat sink for increased heat dissipation to maintain optimal shock oil temperature for consistent damping. The Factory Race Series 3.0 Internal Bypass shocks utilize the same components we use in our race-winning Trophy Truck shocks, including stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
Additional information
| Weight | 45 lbs |
|---|---|
| Dimensions | 39 × 20 × 12 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-26-057 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 139 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
