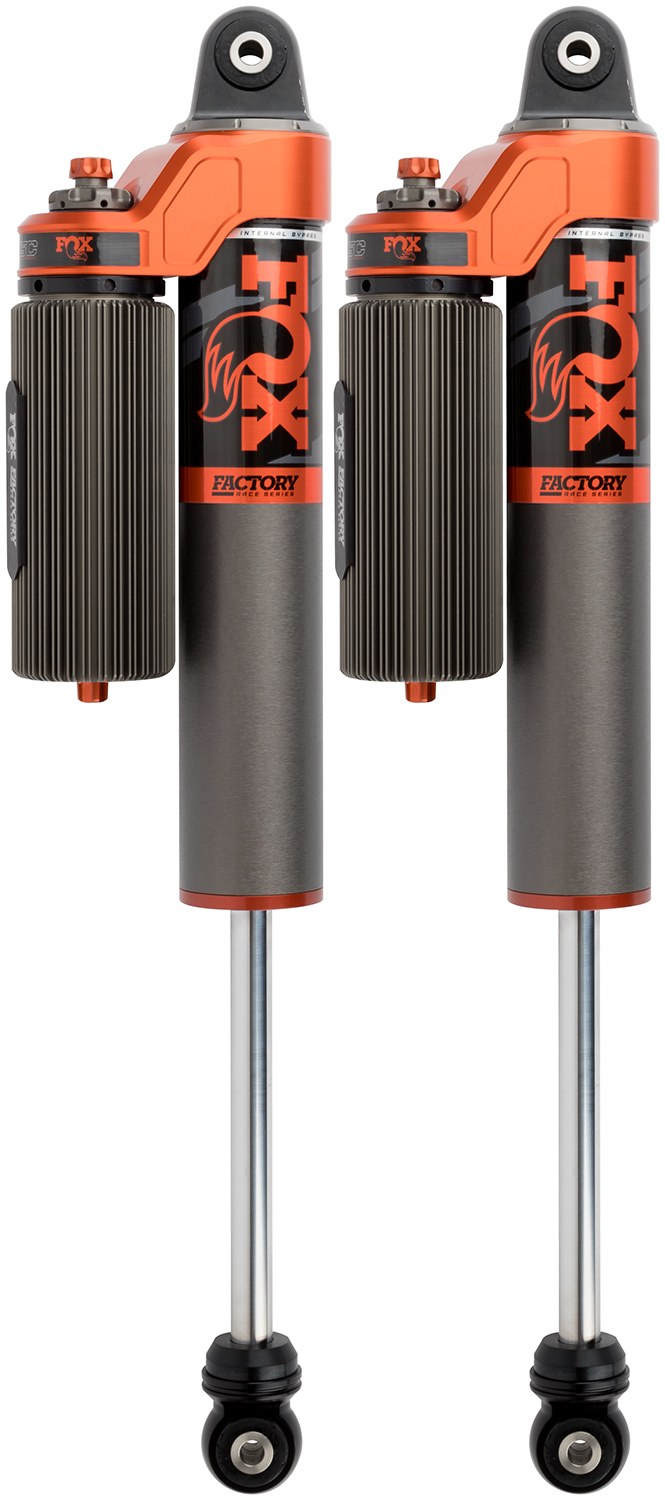

Fox Racing Shox Shock Absorber, 3.0 Factory Series, Hydraulic/ Nitrogen Gas Charged, With Remote Reservoir, Limited 1 Year Warranty – 883-26-083
$2,781.41
Fox Racing Shox Shock Absorber, 3.0 Factory Series – 883-26-083
Description
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; Limited 1 Year Warranty; Dual Speed Compression Adjustable; Without Shock Boots; Zinc Plated; Set of 2
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Internal Design: Tri Tube
- Adjustable Valving: Yes
- Extended Length (IN): 28.35 Inch
- Compressed Length (IN): 18.93 Inch
- Upper Mounting Style: Eyelet
- Lower Mounting Style: Eyelet
- Body Color: Black
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Rod Diameter (IN): 7/8 Inch
- Valving Type: Application Specific Valving
- Rod Material: Stainless Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Hardware: No
- Includes Boot: No
- Estimated Install Time (Hours): 1
Features & Benefits:
- Body: 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Resists Corrosion And Weighs Less Than Steel
- Reservoir: Aluminum Finned Remote Reservoir With Recirculating Reservoir Bridge Dissipates Heat Fast
- Shaft: 7/8 Inch Hard Chrome Plated Heat Treated Alloy Steel
- Seals: Redundant Sealing Pack System Main Seal, Wiper Seal, And Scraper Seal Resist Leaks In Harsh Conditions
- Oil: JM92 Advanced Suspension Fluid For Improved Performance At A Wide Range Of Temperatures
- Bearing: PTFE-Lined, Heat-Treated, Alloy Steel Spherical Keep The Shock Movement Quiet And Smooth
- Limited 1 Year Warranty
About Product:
The Factory Race Series 3.0 Internal Bypass shock delivers race-dominating, position-sensitive damping technology and performance in a hassle-free bolt-on kit. Patented, position-sensitive internal bypass technology contains regulated ports that allow fluid to bypass the piston as it moves through the initial travel, and then forces fluid through the piston at the extreme ranges of compression and rebound. This allows for a plush, predictable ride over normal off-road driving conditions with the ability to ramp up damping force to counteract harsh bottom-outs or top-outs that could buck you off the trail.
Additional information
| Weight | 45 lbs |
|---|---|
| Dimensions | 39 × 20 × 12 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-26-083 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 72 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
