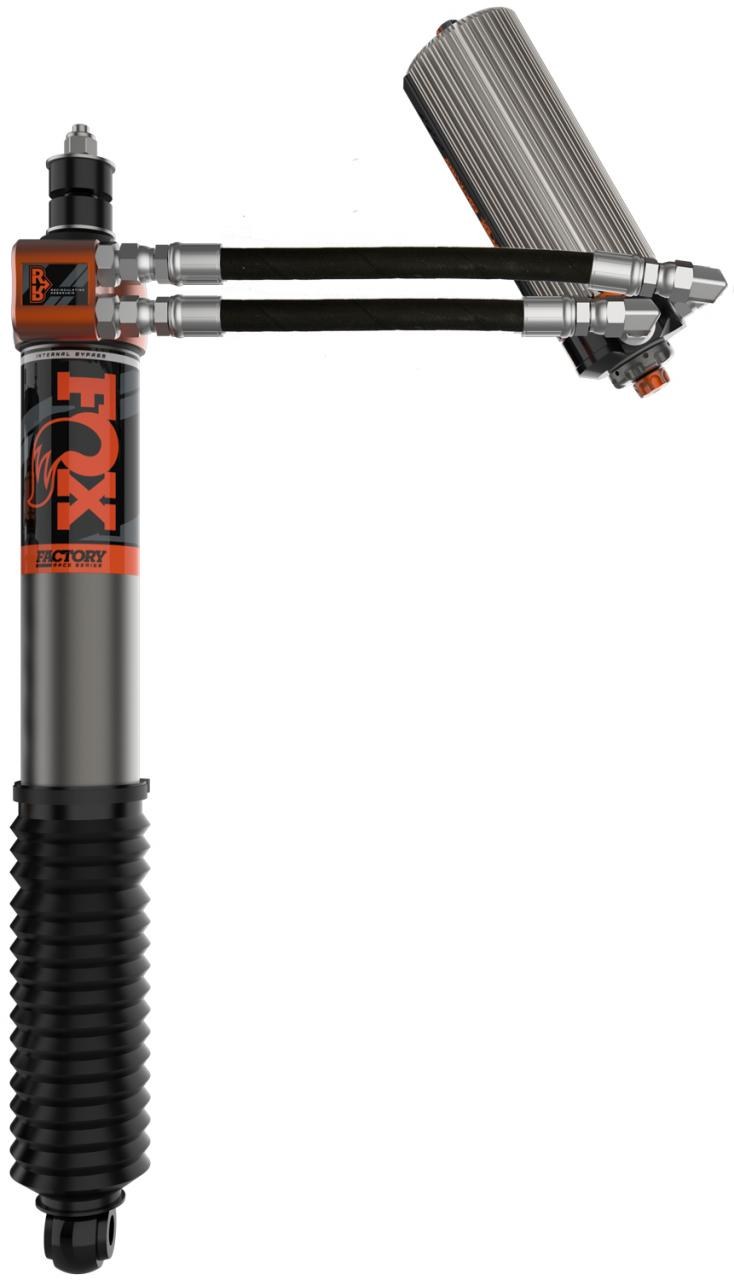

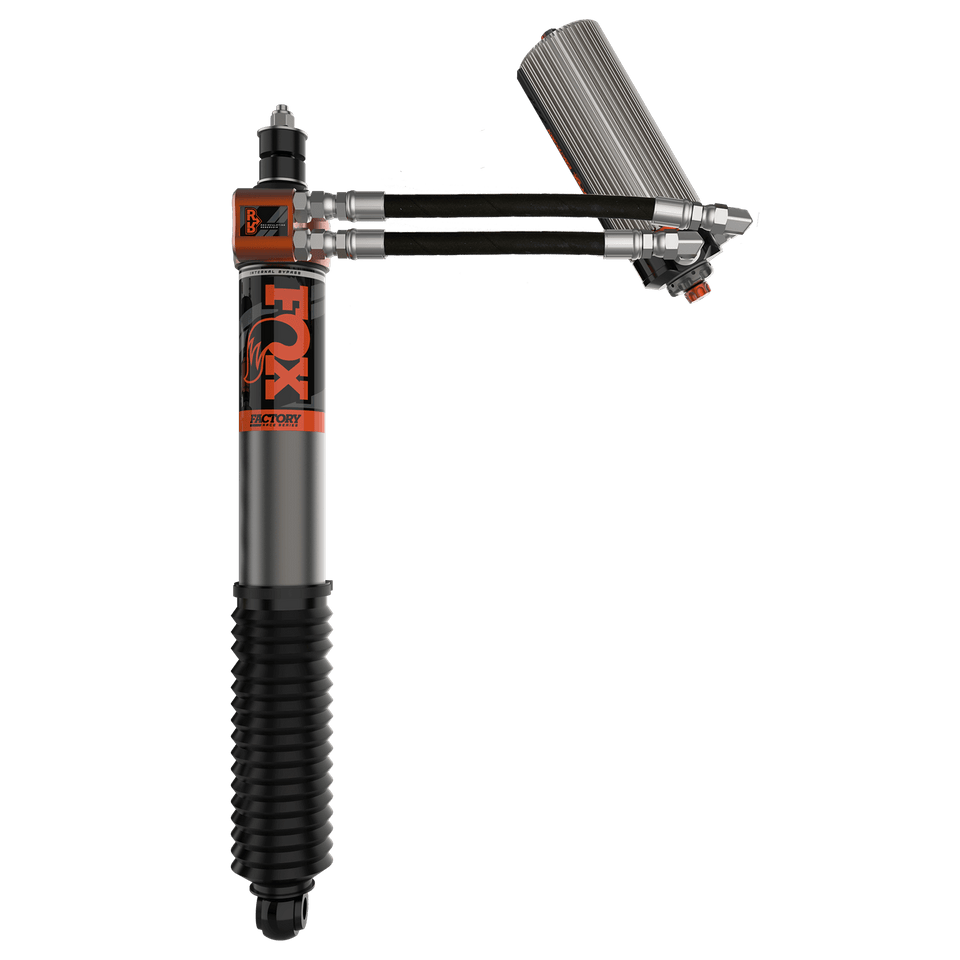

Fox Racing Shox Shock Absorber, 3.0 Factory Series, Hydraulic/ Nitrogen Gas Charged, With Remote Reservoir, Limited 1 Year Warranty – 883-26-142
$3,290.74
Fox Racing Shox Shock Absorber, 3.0 Factory Series – 883-26-142
Description
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; Limited 1 Year Warranty; Adjustable Valving; With Shock Boots; Zinc Plated; Set of 2
Attributes:
- Type: Hydraulic/ Nitrogen Gas Charged
- With Coil Spring: No
- Extended Length (IN): 26-1/4 Inch
- Compressed Length (IN): 16.28 Inch
- Upper Mounting Style: Stud
- Lower Mounting Style: Eyelet
- Adjustable Valving: Yes
- Quantity: Set Of 2
- Universality: Vehicle Specific
- Body Color: Gray
- Valving Type: Application Specific Valving
- Rod Material: Steel
- Body Material: Aluminum
- With Reservoir: Yes
- Includes Dust Shield: No
- Includes Boot: Yes
- Estimated Install Time (Hours): 0.5
Features & Benefits:
- 3.0 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body
- Patented, Internal Bypass Design
- Application-Specific Springs
- 7/8 Inch Hard Chrome-Plated Steel Shafts
- Vehicle-Specific Valving To Maximize Performance
- Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal
- Position- And Velocity-Sensitive Damping Maximize Comfort And Control Through Any Terrain
- Vehicle-Specific Springs Enhance Articulation And Increase Stability
- Limited 1 Year Warranty
About Product:

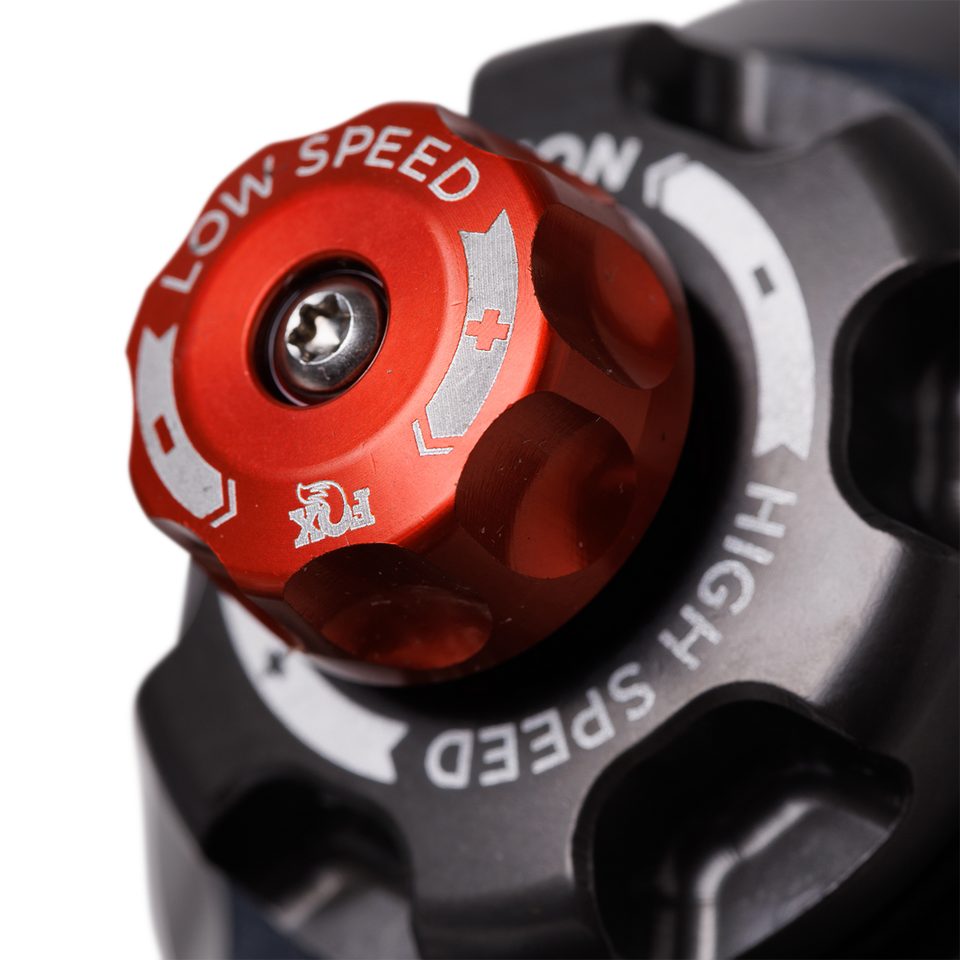

FOX Factory Race Series 3.0 Internal Bypass shocks for the Ford Bronco deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. Finned external reservoirs and aluminum shock bodies keep shock fluid temperatures cool for better performance. Type III anodization prevents corrosion and wear of the 3 Inch diameter bodies. The DSC adjuster allows you to dial in your Bronco for load, environment, and driving style.
Additional information
| Weight | 51.9 lbs |
|---|---|
| Dimensions | 39.25 × 20.37 × 11.25 in |
| Brand | FOX SHOX |
| Manufacturer Part Number | 883-26-142 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 66 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
