Name: Holley Fuel Injection System, Terminator X, Mpfi Tuner Kit - 550-905
Brand: HOLLEY
SKU: KYS-H19550905
Price: 1733.69 USD
Availability: InStock

Description

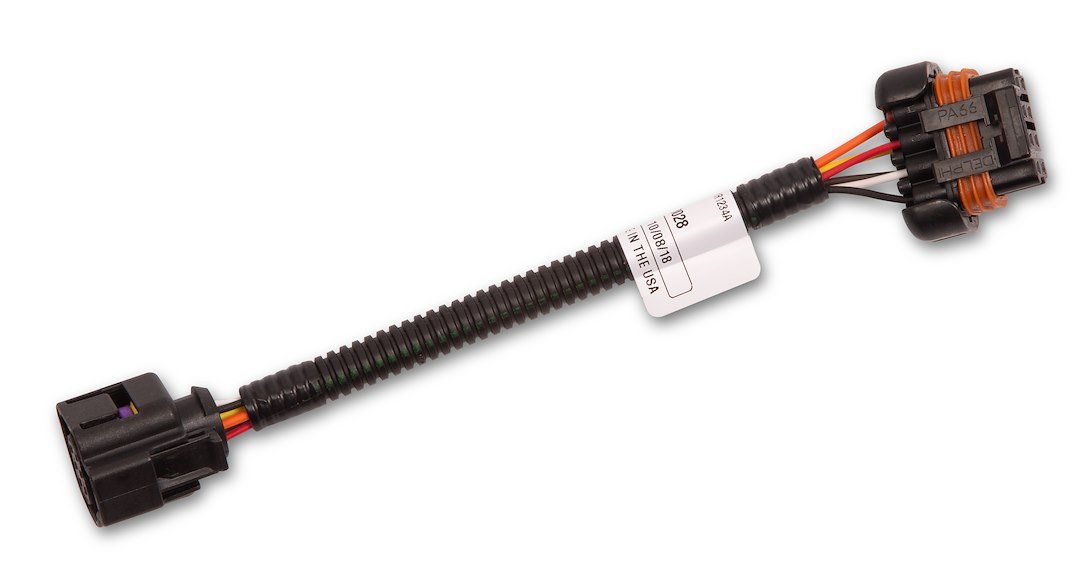

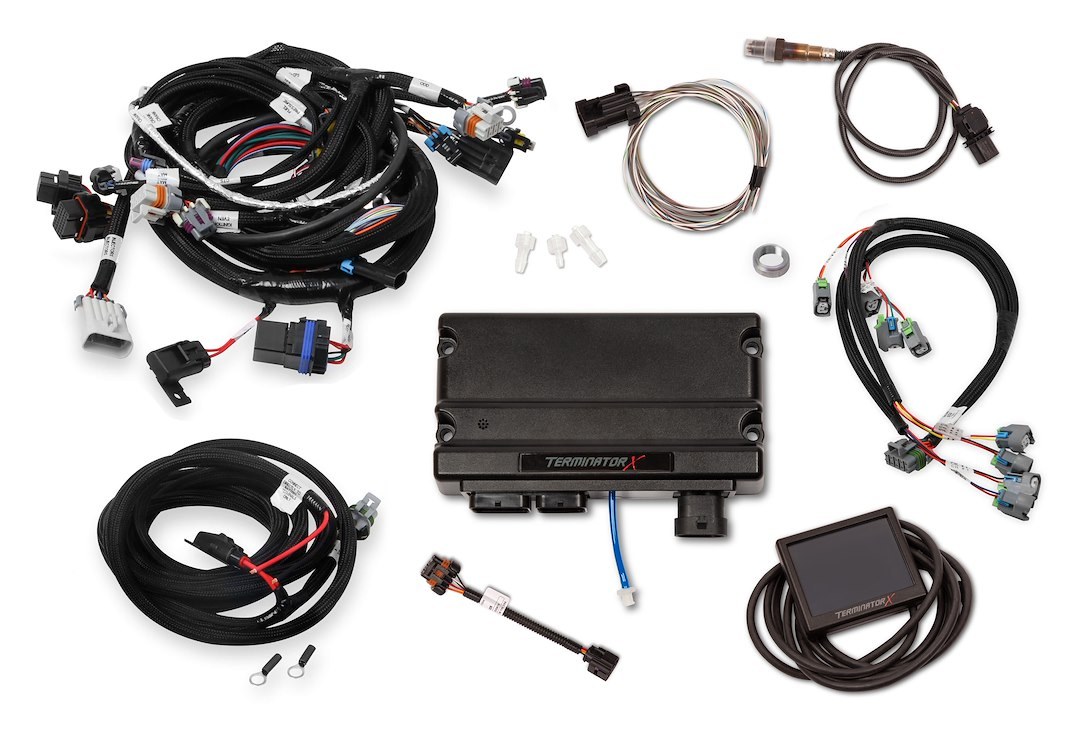

Fuel Injection System; Terminator X; MPFI Tuner Kit; For Use With 2007 and Newer GM LS 4.8/ 5.3/ 6.0 Engines With 58X Crank Reluctor Wheel and DBC Throttle Body; Controls Fuel and Spark; Without Transmission Control; With 3.5 Inch Touchscreen/ ECU/ Wiring Harness/ Bosch Wideband Oxygen Sensor/ EV6 Injector Harness

Attributes:

Engine Compatibility: GMC LS Series
Aspiration: Naturally Aspirated/ Turbocharged/ Supercharged
Fuel Injection Type: Throttle Body
Includes Intake Manifold: No Intake Manifold
Intake Manifold Finish: No Intake Manifold
Intake Manifold Material: No Intake Manifold
Includes Fuel Rails: No
Throttle Body Finish: No Throttle Body
Throttle Body Material: No Throttle Body
Throttle Body Mounting Flange: No Throttle Body
Venturi Quantity: No Throttle Body
Venturi Diameter (MM): No Throttle Body
Includes Calibration Module: Yes
Includes ECM: Yes
Includes Wiring Harness: Yes
Includes Fuel Pump: No
Includes Fuel Pressure Regulator: No
Includes Distributor: No
Includes Oxygen Sensor: Yes
Includes TPS Sensor: No
Includes IAT Sensor: No
Includes MAP Sensor: No
Includes IAC Motor: No
Includes Gaskets: No

Features & Benefits:

Designed For GM LS Engines With 58x Crank, 4x Cam And EV6 Injectors. Free EFI Tuning Software For Complete Control Of Your Terminator X Power Plant
Real-Time Fuel Map Learn, Takes The Guess Work Out Of Tuning Your Base Fuel Table. Boost Control: Boost Vs Time, Boost Vs Gear, Boost Vs RPM, Boost Vs Speed, Boost Safeties
High Impedance Injector Drivers Will Safely Power Most Stock LS Injectors, And Holley EFI Injectors. Injector Support Chart Provided In The Instructions
Plug And Play Compatible With More Holley EFI Accessories Such As; Analog Style Gauges, Shift Lights, Various Modules, And Coming Soon, 12.3 Inch Digital Dash Support

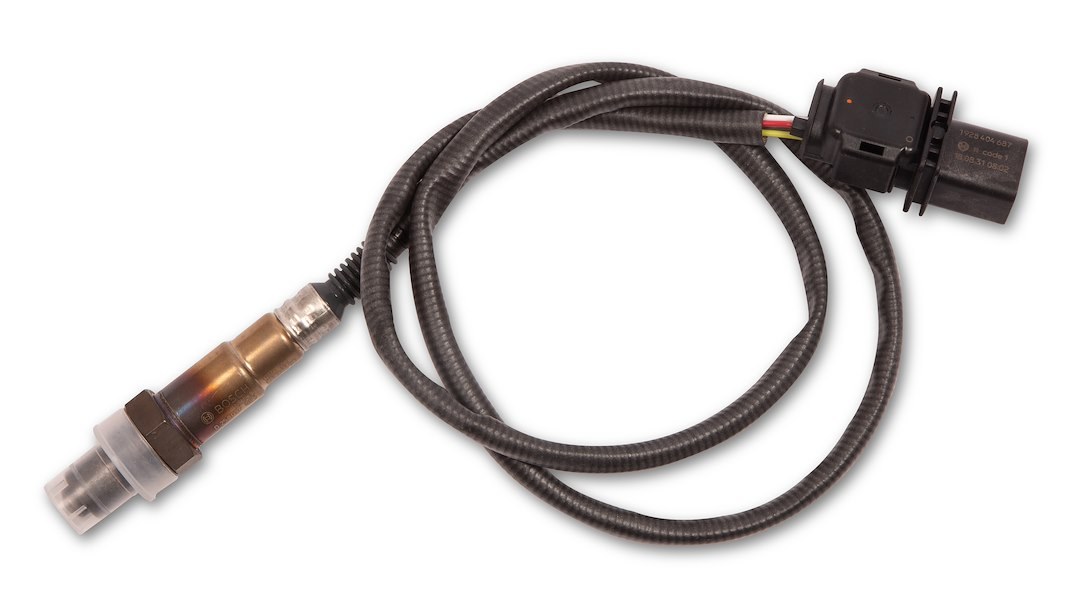

All Of The New Terminator X Systems Utilize The Bosch LSU 4.9 Wideband To Relay AFR Information To The ECU For Accurate Reading And Precise Tuning Control
Nitrous Control Single Channel Of Wet Or Dry, Progressive Or Non-Progressive, Rich Or Lean Safeties, And Target Closed Loop AFR. The Compact ECU Size Allows You To Mount It Virtually Anywhere
On-Board Diagnostic LEDS For: ECU Power, Engine Run, Wideband Status, TPS Calibration, Crank Signal, Cam Signal. Allow You To Identify Any Critical Engine Issues At A Glance
4 Inputs: 12 Volt, Ground, 5 Volt, And Frequency, For Things Such As Additional Pressure Sensors, Or Activation Triggers For Nitrous Activation, Or A Trans Brake

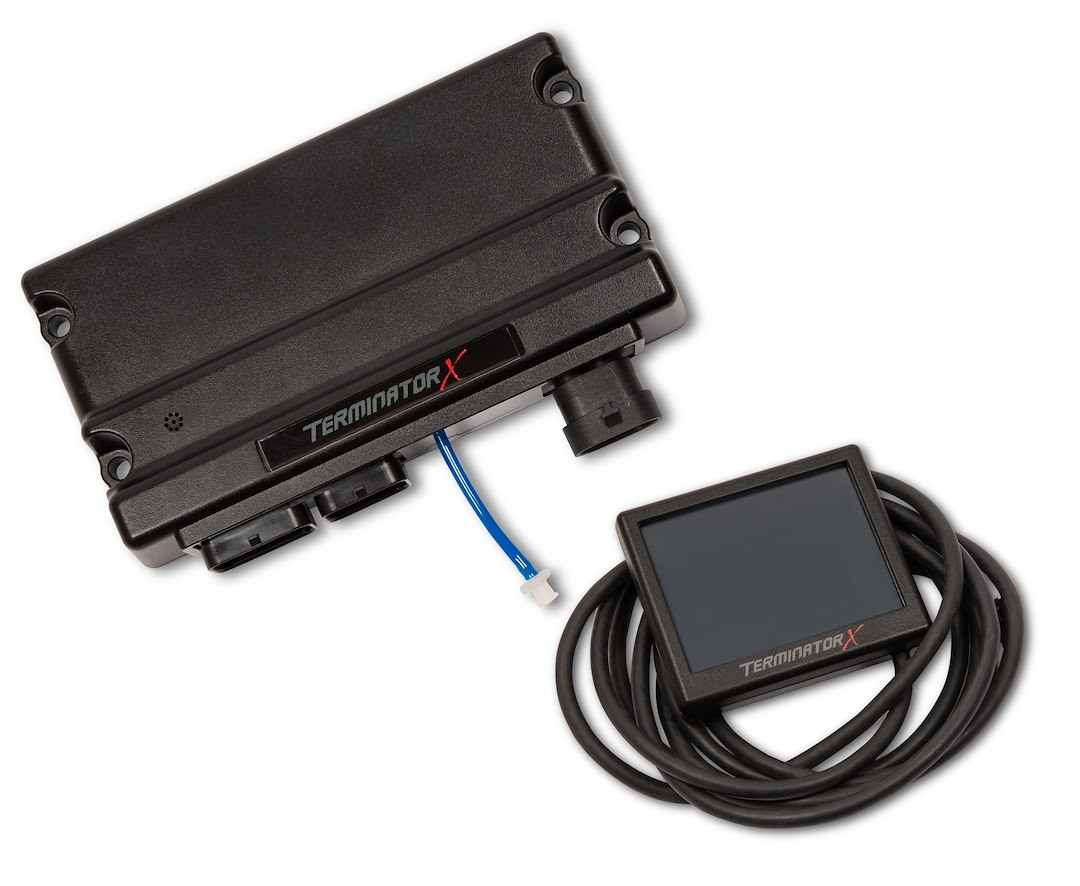

The Included 3.5 Inch Touchscreen Handheld Contains A Calibration Wizard, That Allows You To Quickly Build A Base Tune For Any LS Engine
Limited 90 Day Supplier Warranty

About Product:
Take control of your LS engine with Terminator X. Don’t settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price. Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1 Bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road or track fast. The 3.5 Inch touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI’s industry leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won’t break the bank.
