Name: Holley Fuel Pump Electric - 12-170
Brand: HOLLEY
SKU: KYS-H1912170
Price: 272.80 USD
Availability: InStock

Description

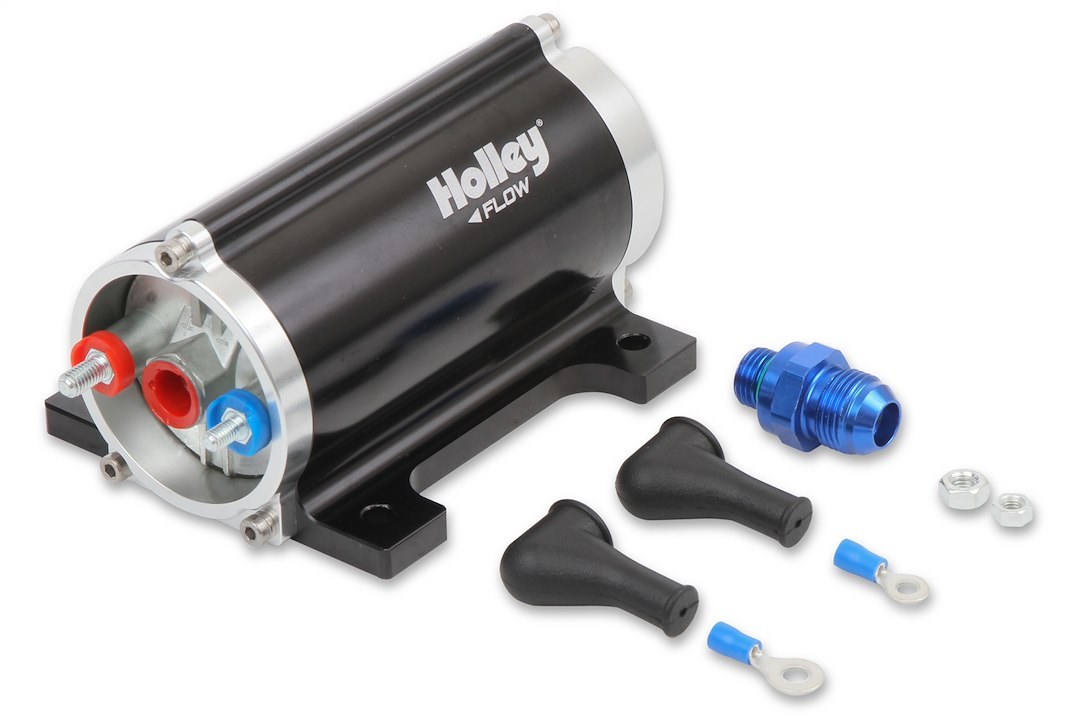

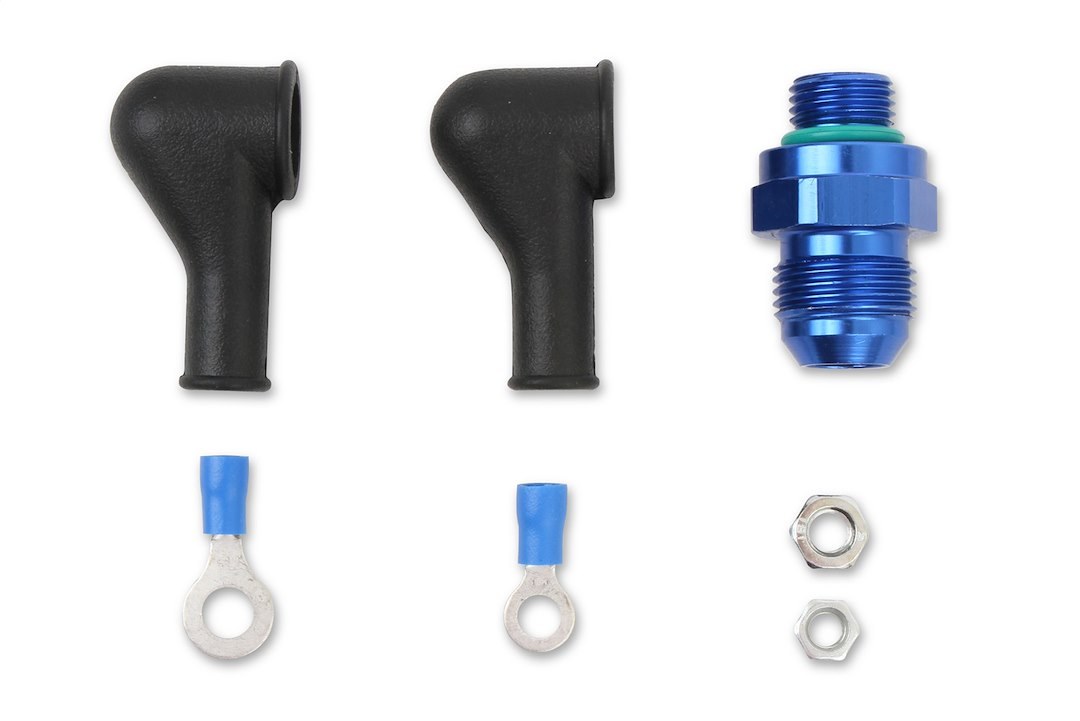

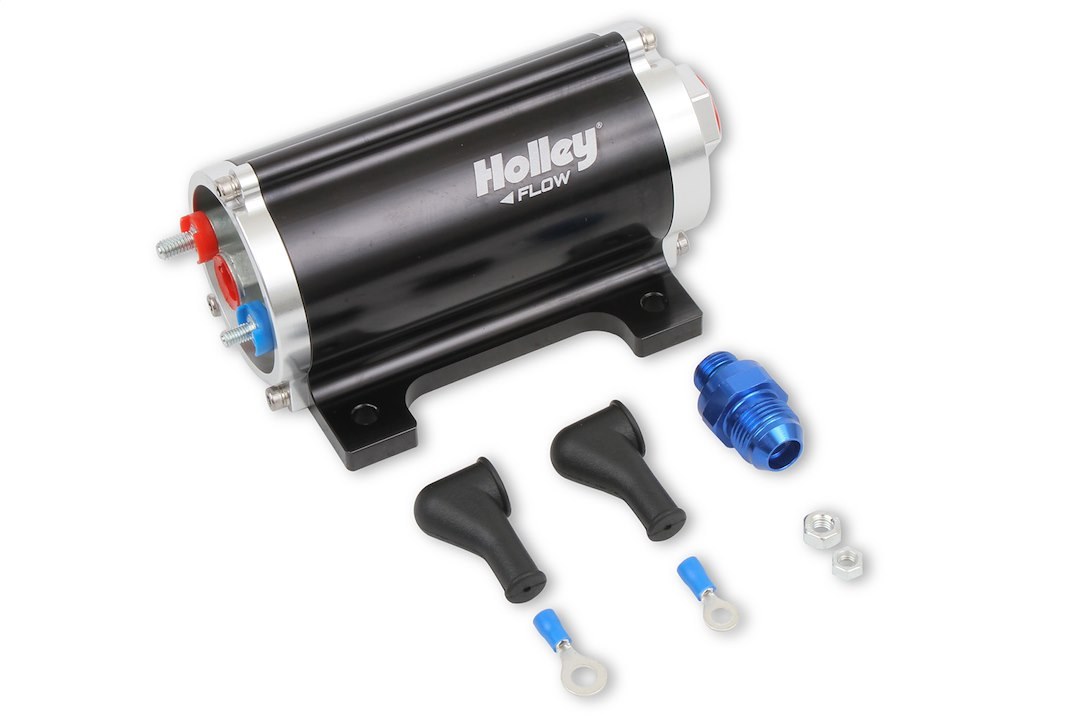

Fuel Pump Electric; Supports 700-800 Forced Induction HP At 60-8 PSI Or 96-105 GPH HP At 60-8 PSI Or 900-1050 Naturally Aspirated HP At 60-8 PSI; -8 AN Female ORB Inlet And -6 AN Female ORB Discharge; Black Anodized; Includes Fuel Pump/ -6 to -8 Male AN Discharge Fitting With Check Valve/ Terminal Nuts And Boots/ Installation Instructions

Attributes:

Mounting Style: In-Line
Fuel Type: Diesel/ E85/ Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 105 Gallon Per Hour
Maximum Pressure (PSI): 75 Pounds Per Square Inch
Inlet Size: -8 AN (1/2 Inch)
Inlet Attachment: Female Threads
Outlet Size: -6 AN (3/8 Inch)
Outlet Attachment: Female Threads
Inlet Quantity: 1
Outlet Quantity: 1
With Sending Unit: No
Estimated Install Time (Hours): 1

Features & Benefits:

Designed For High Output Naturally Aspirated And Forced Induction EFI And Carbureted Vehicles
The Roller Vane Design Pump Provides Fuel Pressure And Volume To Support Up To 900 EFI N/A Or 700 EFI Boosted Horsepower

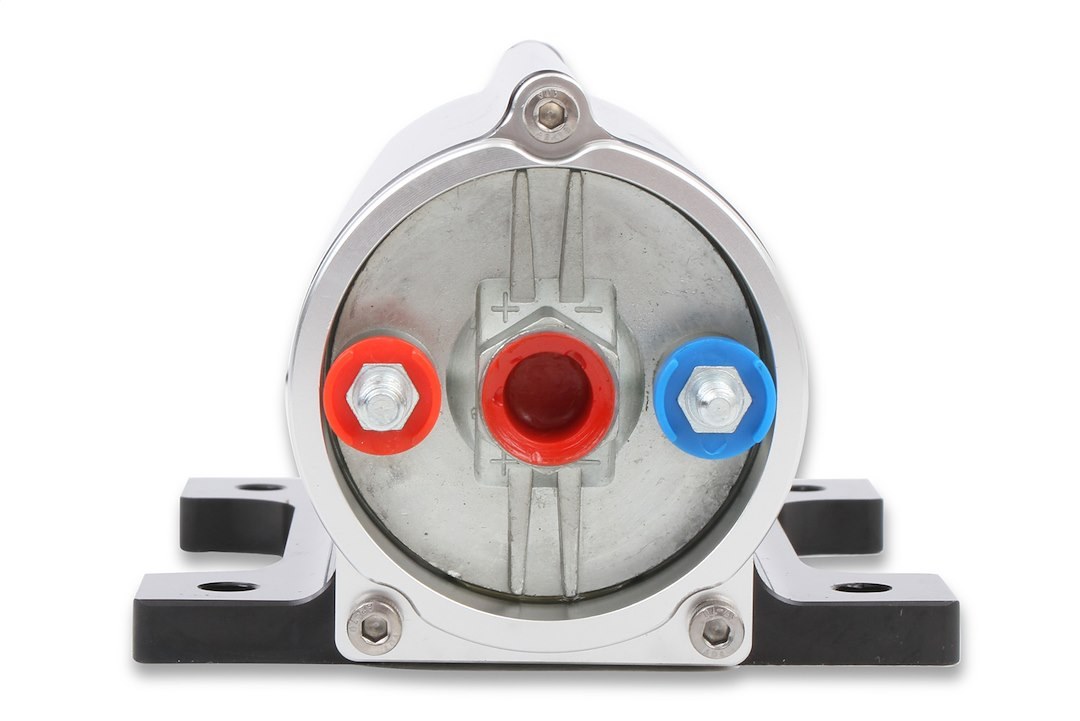

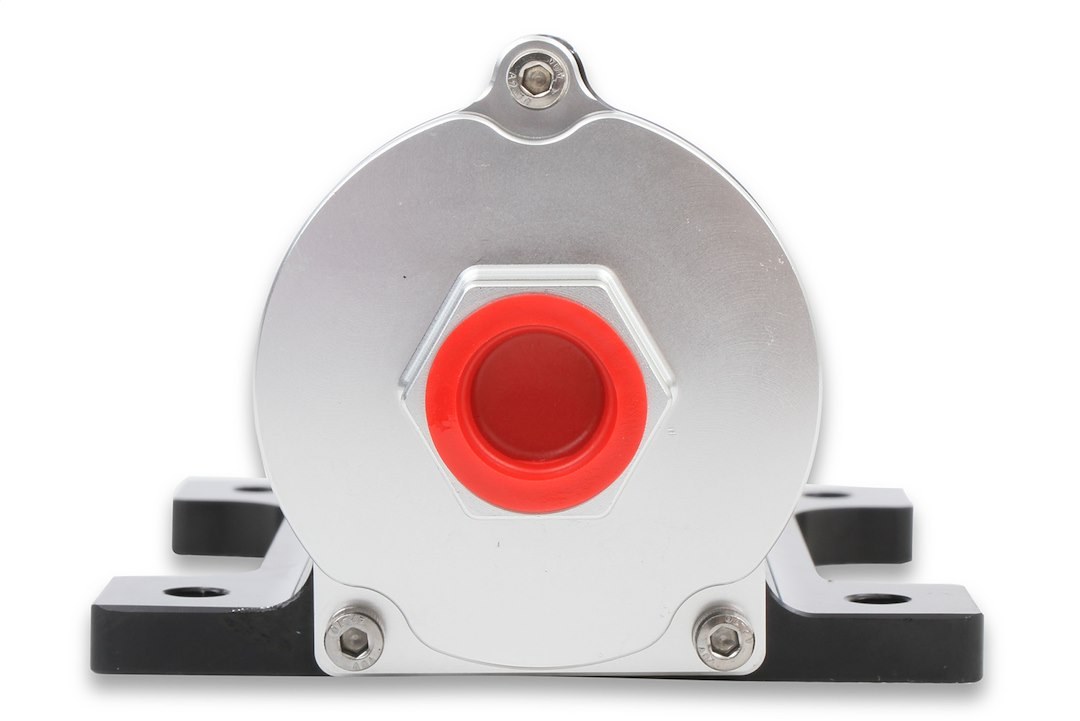

The Inlet Thread Is A -8 AN Female ORB (O-Ring Port Fitting) And The Discharge Is A Female -6 AN ORB (O-Ring Port Fitting)
Designed For Performance And Durability
Easy Installation
Limited 90 Day Supplier Warranty

About Product:
Holley’s 100 Gallons Per Hour fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The pump supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas, Race gas, Diesel or E85. The 12-170 fuel pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100 percent ethanol fuels. The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting).
