Name: Holley Fuel Pump Electric, Efi Retrofit Kit, For Converting to a IN-Tank Efi Fuel System, Use IN Fuel Tanks 7.25 Inch to 12 Inch Deep - 12-130
Brand: HOLLEY
SKU: KYS-H1912130
Price: 1118.70 USD
Availability: InStock

Description

Fuel Pump Electric; EFI Retrofit Kit; For Converting To A In-Tank EFI Fuel System; Use In Fuel Tanks 7.25 Inch To 12 Inch Deep; 255 LPH Free Flow; Supports 550 Horsepower EFI At 60 PSI Or 700 Horsepower Carbureted; Without Regulator; Return Style; 1/4 Inch NPT Ports; 12 Volts

Attributes:

Mounting Style: In-Tank
Fuel Type: Gasoline
Voltage Rating: 12 Volt
Free Flow Rate: 225 Liter Per Hour
Maximum Pressure (PSI): 60 Pounds Per Square Inch
Inlet Size: 1/4 Inch
Inlet Attachment: Female Threads
Outlet Size: 1/4 Inch
Outlet Attachment: Female Threads
Inlet Quantity: 1
Outlet Quantity: 1
With Sending Unit: No
With Mounting Hanger: Yes
Estimated Install Time (Hours): 2

Features & Benefits:

1/4 Inch NPT Ports For A Wide Variety Of Plumbing Options
Black Anodized Aluminum Construction For Corrosion Resistance And Long Lasting Good Looks

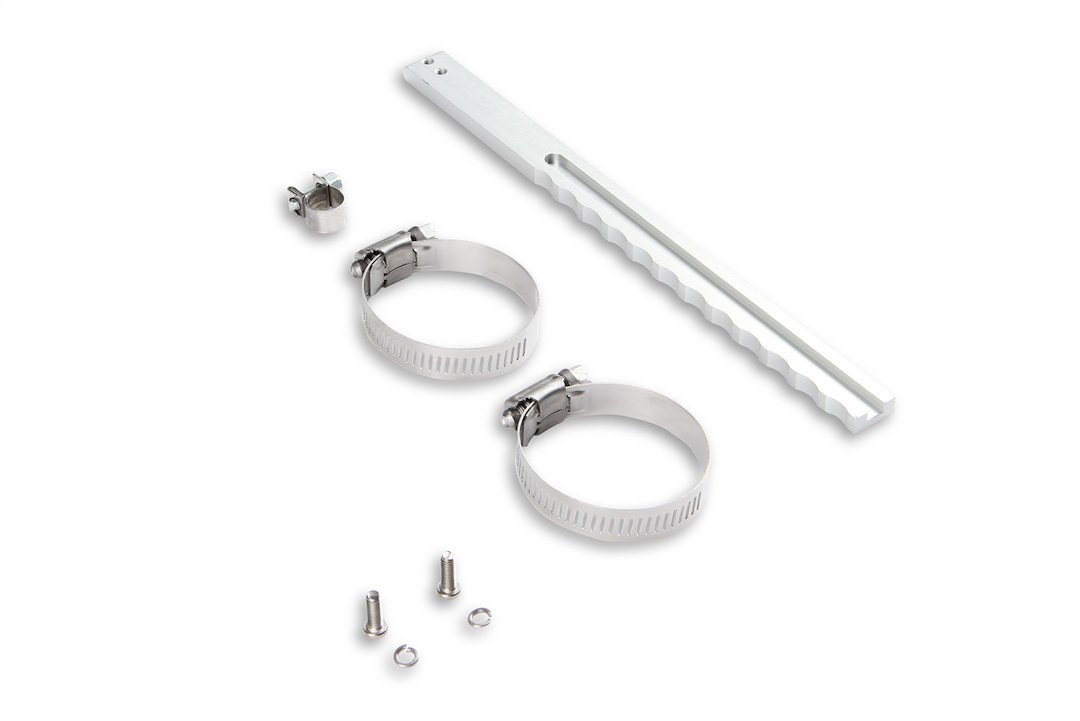

Innovative Clamping System Allows You To Locate The Module Anywhere In The Tank Beside Your Existing Sending Unit
Clamping System Allows To Rotate The Unit 360 Degrees For Easier Clocking Of The Plumbing And Wiring Locations Under Your Ride
Eliminates The Need For A Return Line And Conventional Fuel Pressure Regulator. Thus, Simplifying Your Installation
Limited 90 Day Warranty

About Product:

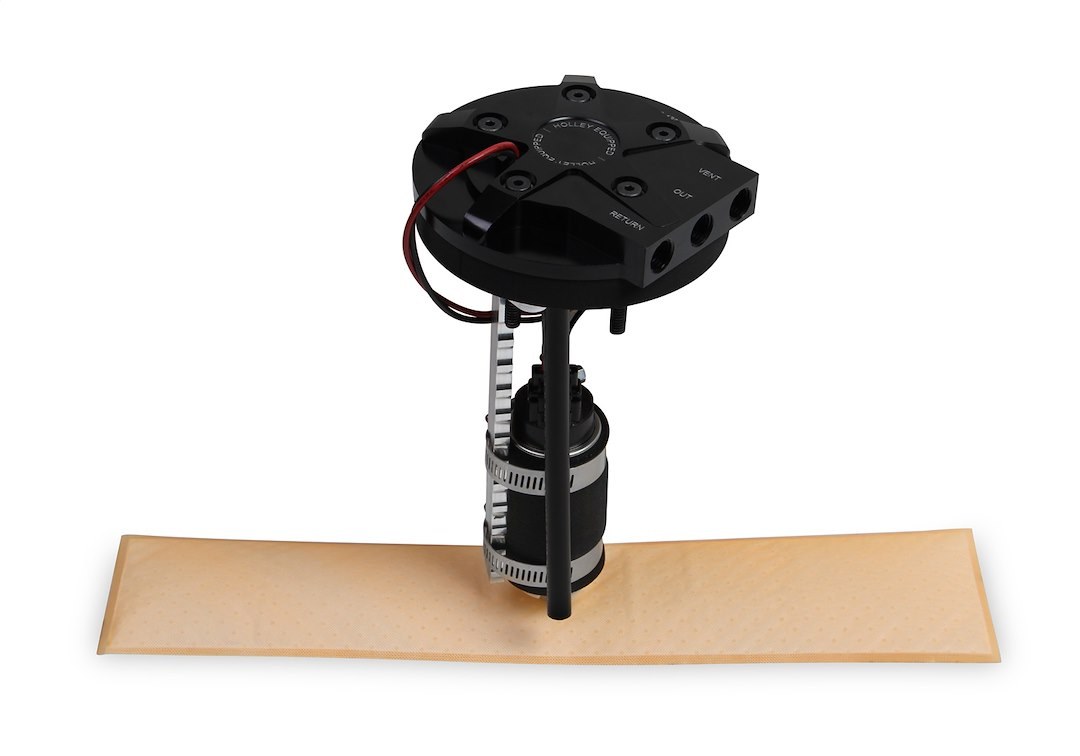

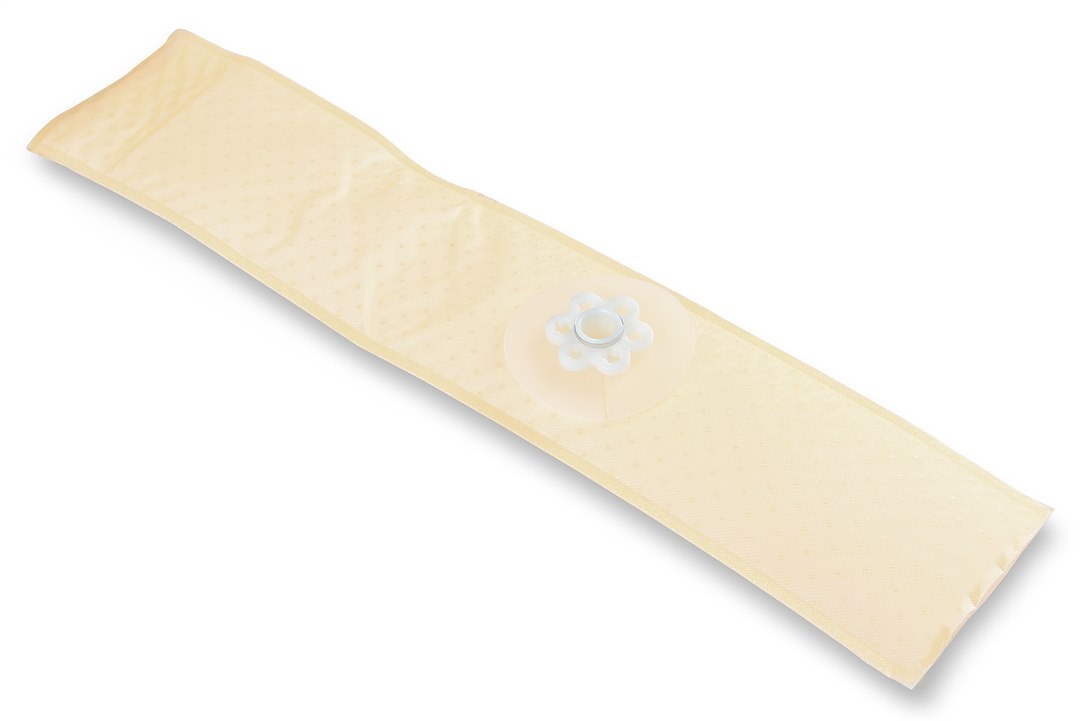

Add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley’s innovative clamping system and integrated fuel pump makes it easy. Once installed, hook up your fuel lines and your power source/ground and you’re off and running! NO hassle.
