Holley Fuel Pump Electric, IN-Tank, Gasoline, Dual 450 Lph Free Flow, Anodized Black, Billet Alluminum 6061-T6 – 12-365
$876.70
Holley Fuel Pump Electric, IN-Tank, Gasoline, Dual 450 Lph Free Flow – 12-365
Description
Fuel Pump Electric; In-Tank; Gasoline; Dual 450 LPH Free Flow; Anodized Black; Billet Alluminum 6061-T6; With Gasket And Vehicle Pigtail Harness
Attributes:
- Mounting Style: In-Tank
- Fuel Type: Gasoline
- Voltage Rating: 12 Volt
- Free Flow Rate: 236 Gallon Per Hour
- Maximum Pressure (PSI): 90 Pounds Per Square Inch
- Inlet Size: -6 AN (3/8 Inch)
- Inlet Attachment: Female O-Ring
- Outlet Size: -6 AN (3/8 Inch)
- Outlet Attachment: Female O-Ring
- Inlet Quantity: 1
- Outlet Quantity: 1
- With Sending Unit: Yes
- With Mounting Hanger: No
- Estimated Install Time (Hours): 2
Features & Benefits:

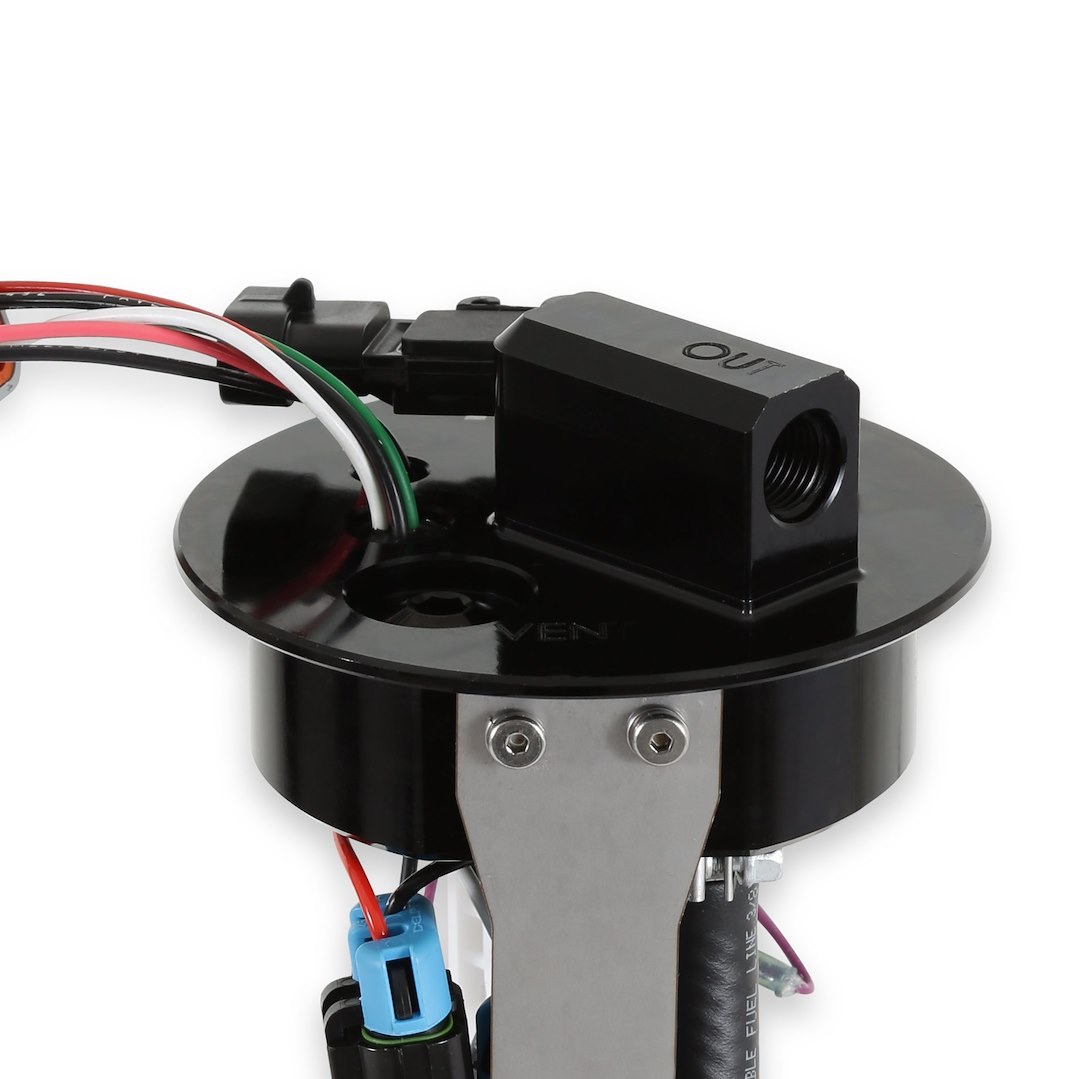

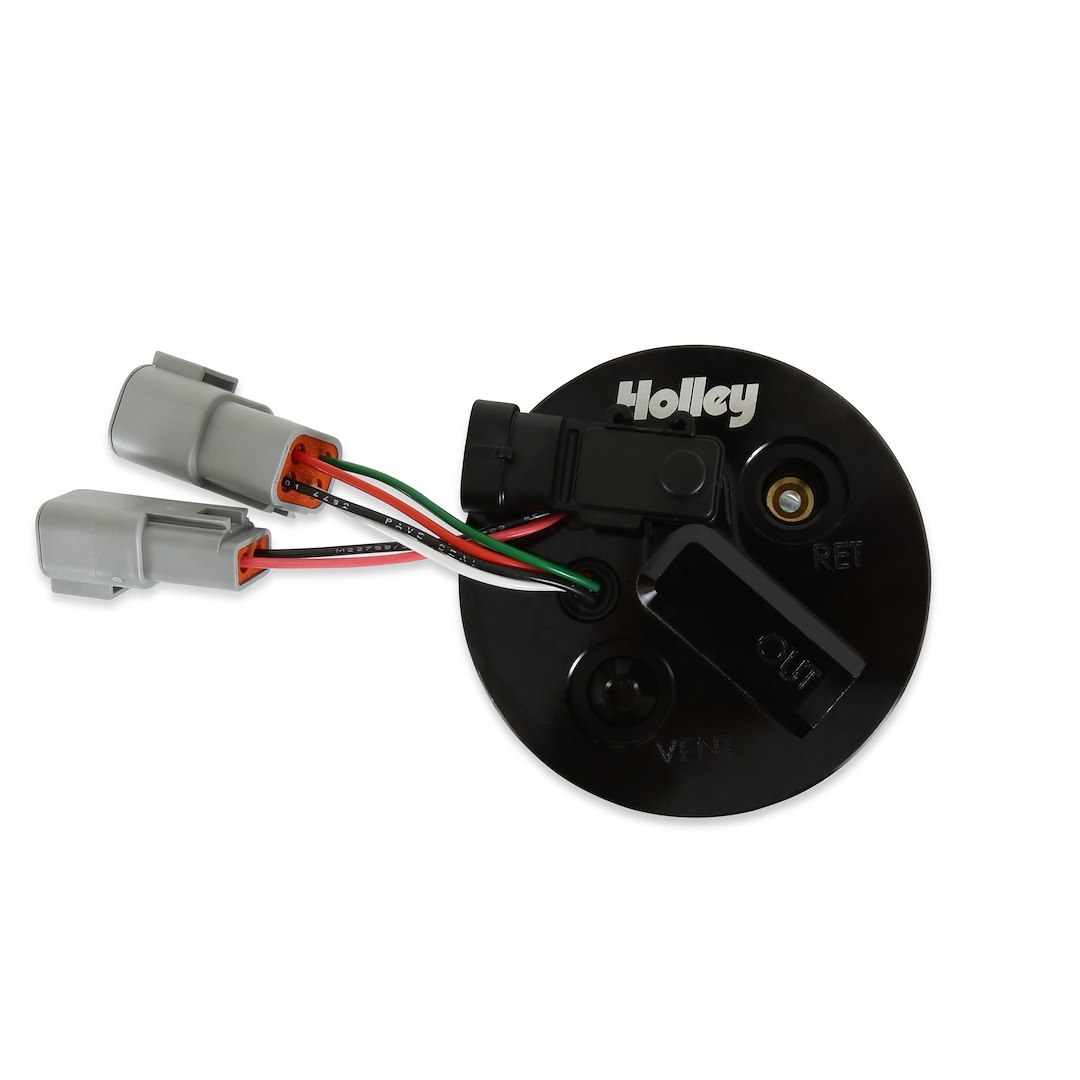

- Anodized And Laser-Etched Billet 6061-T6 Flange With 6AN ORB Ports For Feed, Return, And Vent
- All SKUs Compatible With Gasoline AND E85
- Features Pre-Installed With New Pre-Calibrated Fuel Level (33 – 240 O) And Tank Pressure Sensors
- Features New Gasket To Complete Installation
- A 3 X 11-Inch HydraMat Is Included For Each Pump
- For Factory Plastic Tank Used In Camaro / Firebird Or An Earlier 4th Gen F-Body With Fuel Tank Upgrade
- Fittings Included Allowing Connection To The Factory 3/8 Quick Connect Feed And Return Lines
- Flanges Have Been Designed To Be Compatible With Feed And Return Line Sizes Up To -8AN
- Step-Down Butt Connectors Included To Wire Level Sensor
- Limited 90 Day Supplier Warranty
About Product:

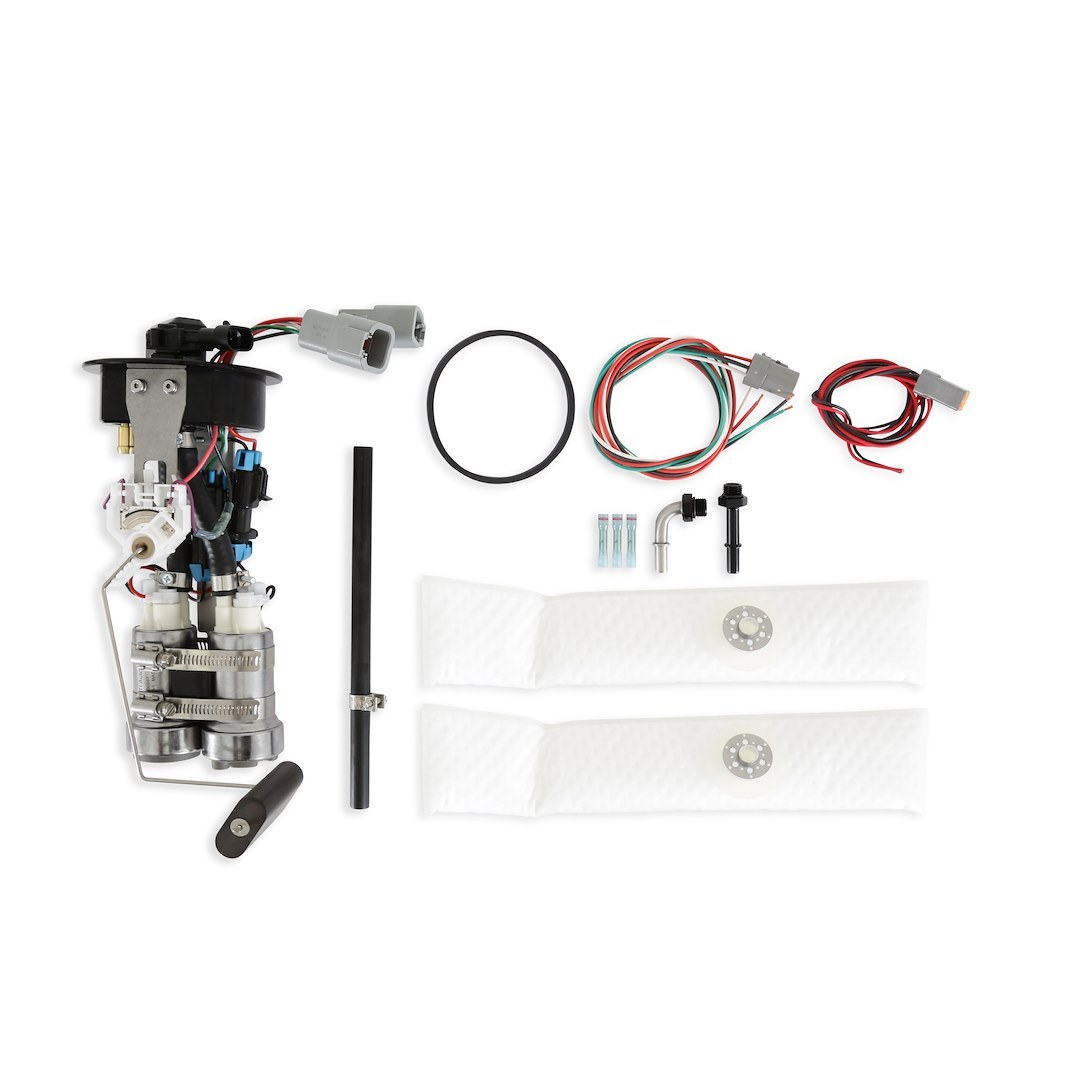

If you are looking to make some serious power with your 1998 to 2002 4th Gen F-body, the Holley modules feature billet pump flanges that connect to either single or dual 340 or 450 Liters Per Minute pumps. All four of these options are compatible with gasoline and E85 and come pre-installed with new level and tank pressure sensors as well as provisions to connect to the factory EVAP system for EPA compliance. Each module also comes with all the parts and pieces necessary to complete the installation. Included is a 3 x 11-Inch Hydramat filter that leverages surface tension to draw from nearly any area that has contact with fuel eliminating starvation under hard acceleration or cornering. Also included is a new fuel pump gasket, wiring pigtails for the level sender and fuel pump, and fittings to connect to the factory quick connect feed and return lines. The modules are all return style, so don’t forget to pick up an EFI pressure regulator to complete your installation.
Additional information
| Weight | 6.02 lbs |
|---|---|
| Dimensions | 12.8 × 9.5 × 6.3 in |
| Brand | HOLLEY |
| Manufacturer Part Number | 12-365 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 56 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
