ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series, Adjustable Valving, 1-1/4 to 3 Inch Lift, With Pigtail Coil Spring, Black/ Silver – 48711C
$2,548.08
ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series – 48711C
Description

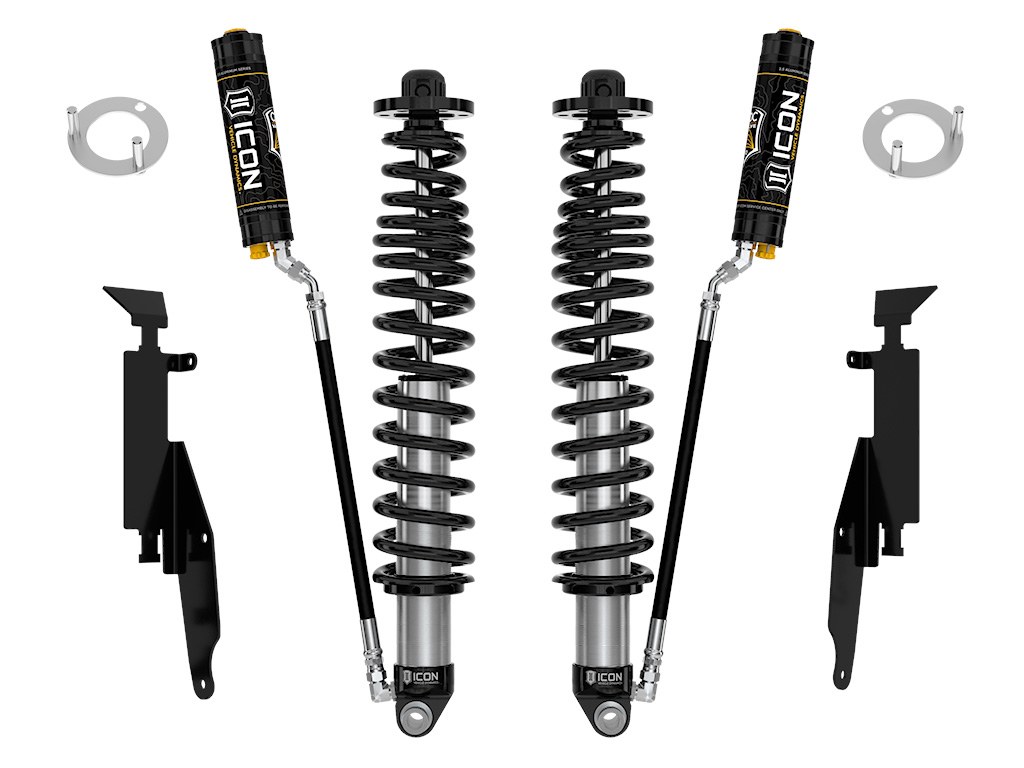

Coil Over Shock Absorber; 2.5 Series; Adjustable Valving; 1-1/4 To 3 Inch Lift; With Pigtail Coil Spring; Black/ Silver; With Remote Reservoir; Set Of 2; With Brackets
Attributes:
- Adjustable: Yes
- Valving Type: Application Specific Valving
- Shock Type: Gas Charged
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 1-1/4 To 3 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Shock Body Color: Black/ Silver
- Shock Body Material: Aluminum
- Quantity: Set Of 2
- Spring Style: Pigtail Spring
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: Yes
Features & Benefits:
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel Up To 14 Inch And Ride Quality Over Stock
- Vehicle Specific Tuned For Superior Shock Damping And Control
- Adjustable Up To 2 To 3 Inch Of Rear Lift Height On Non-Sasquatch Or 1-1/4 Inch To 2-1/4 Inch Of Rear Lift On Sasquatch Broncos
- Unique ICON Engineered Dual Rate Coil Springs With Increased Spring Rates For Heavier Equipped Broncos
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Fully Rebuildable And Re-Tunable
- 100 Percent Bolt-On: No Drilling, Cutting Or Welding Necessary For Installation
- Limited 1 Year Warranty
About Product:
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks with CDCV are an incredible upgrade for the rear end of the 2021 to 2023 Ford Bronco. These adjustable coilovers allow up to 2 to 3 Inch of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1-1/4 Inch to 2-1/4 Inch of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2-1/2 Inch shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON’s exclusive Compression Damping Control Valves are provided for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.
Additional information
| Weight | 72 lbs |
|---|---|
| Dimensions | 38 × 13 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | 48711C |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 120 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
