ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series, Electronic Adjustable Valving, 2-3/4 to 3-1/2 Inch Lift, Pigtail Spring – 91825E
$2,724.55

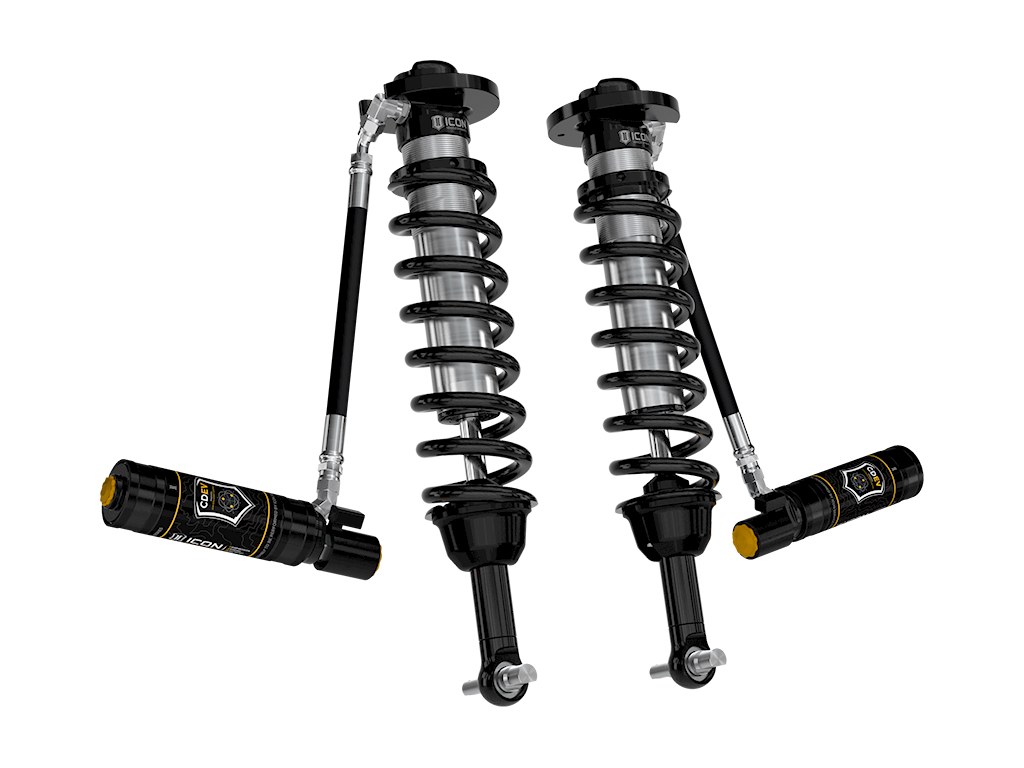

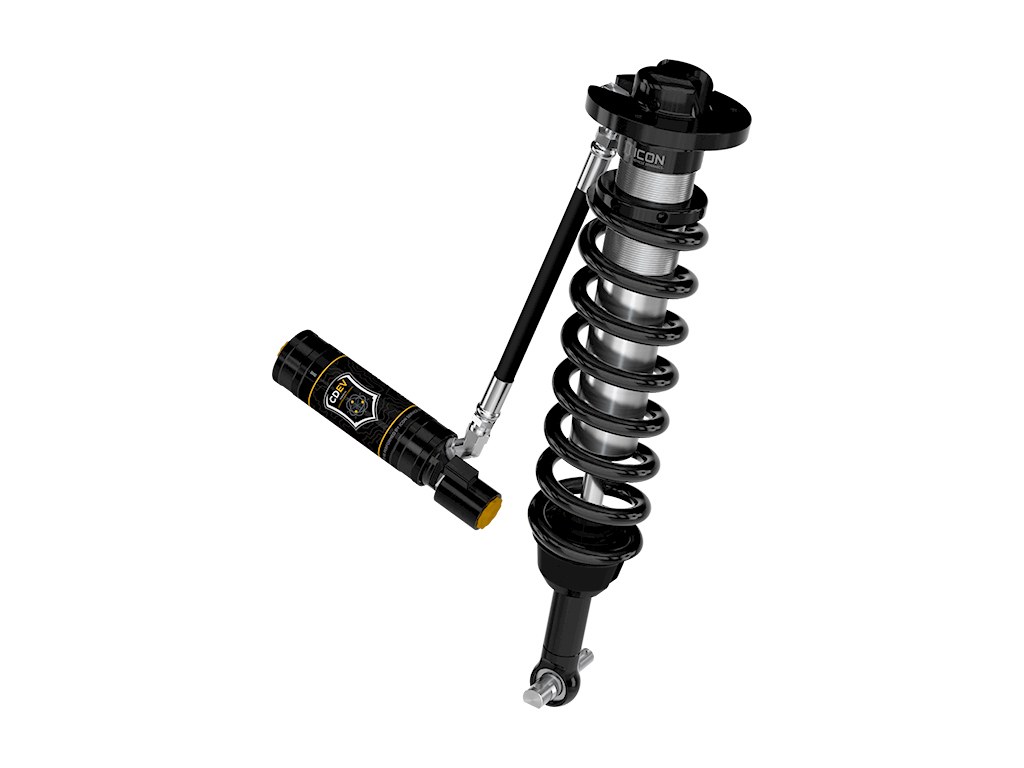

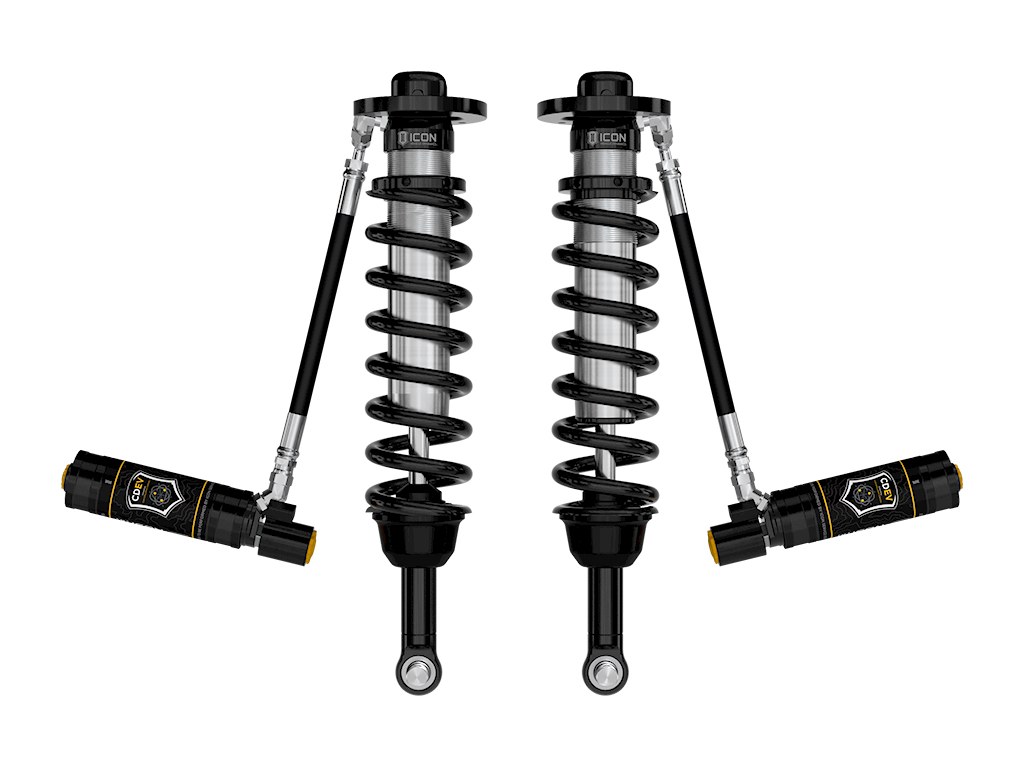

ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series – 91825E
Description
Coil Over Shock Absorber; 2.5 Series; Electronic Adjustable Valving; 2-3/4 To 3-1/2 Inch Lift; Pigtail Spring; Black/ Silver; With Remote Reservoir; Set Of 2
Attributes:
- Adjustable: Yes
- Valving Type: Electronic Adjustable Valving
- Shock Type: Gas Charged
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 2-3/4 To 3-1/2 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Shock Body Color: Black/ Silver
- Shock Body Material: Aluminum
- Quantity: Set Of 2
- Spring Style: Pigtail Spring
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: No
Features & Benefits:
- 6061 Aircraft Grade Aluminum CNC Machined Components
- Increased Wheel Travel And Ride Quality Over Stock
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- Vehicle Specific Tuned For Superior Shock Damping And Control
- Remote Reservoir To Attain Cooler Operating Temperatures During Extended Off-Road Use
- ICON CDCV Equipped For 10 Settings Of External Compression Damping Adjustment
- Corrosion Resistant CAD Plated Shock Bodies With 7/8 Inch Diameter Shaft
- High Strength Alloy CNC Machined Lower Bar Pin
- 100 Percent Bolt-On: No Drilling, Cutting Or Welding Necessary For Installation
- Limited 1 Year Warranty
About Product:

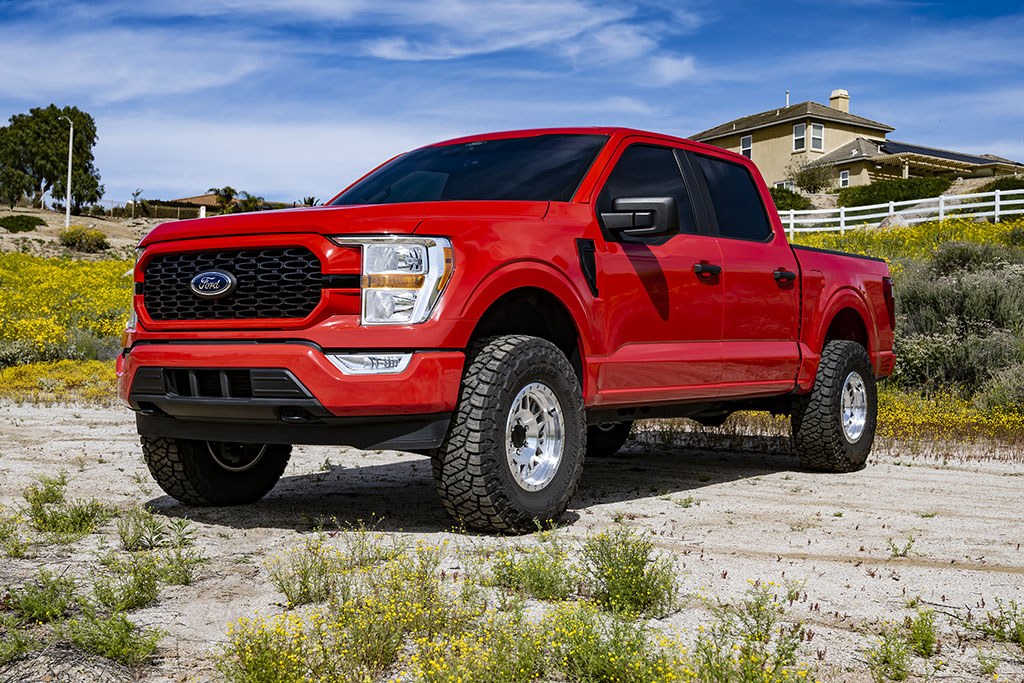

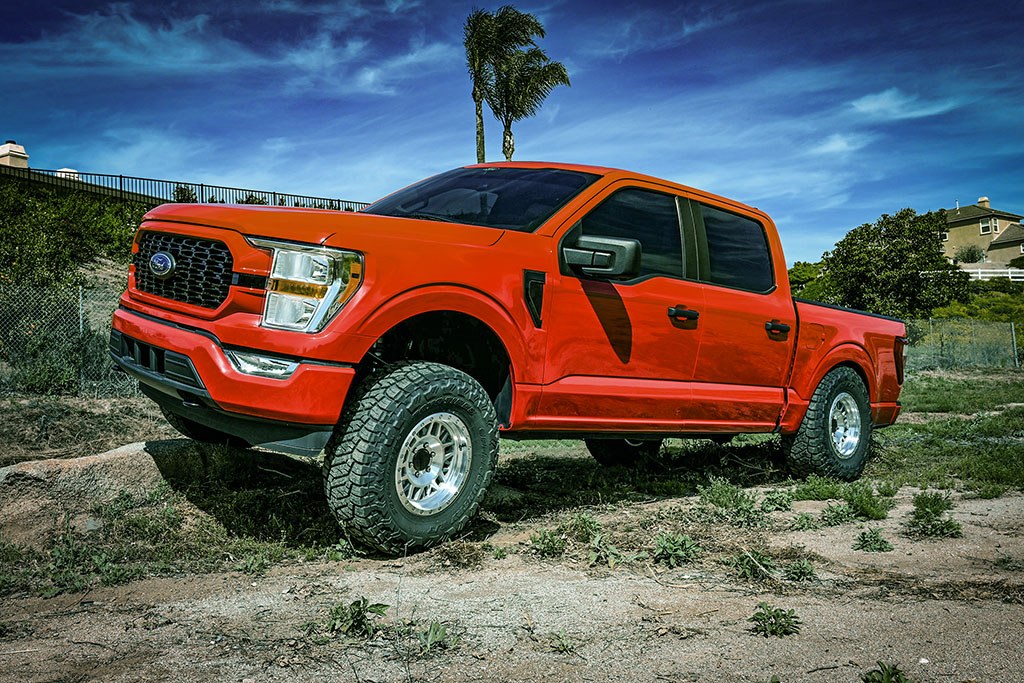

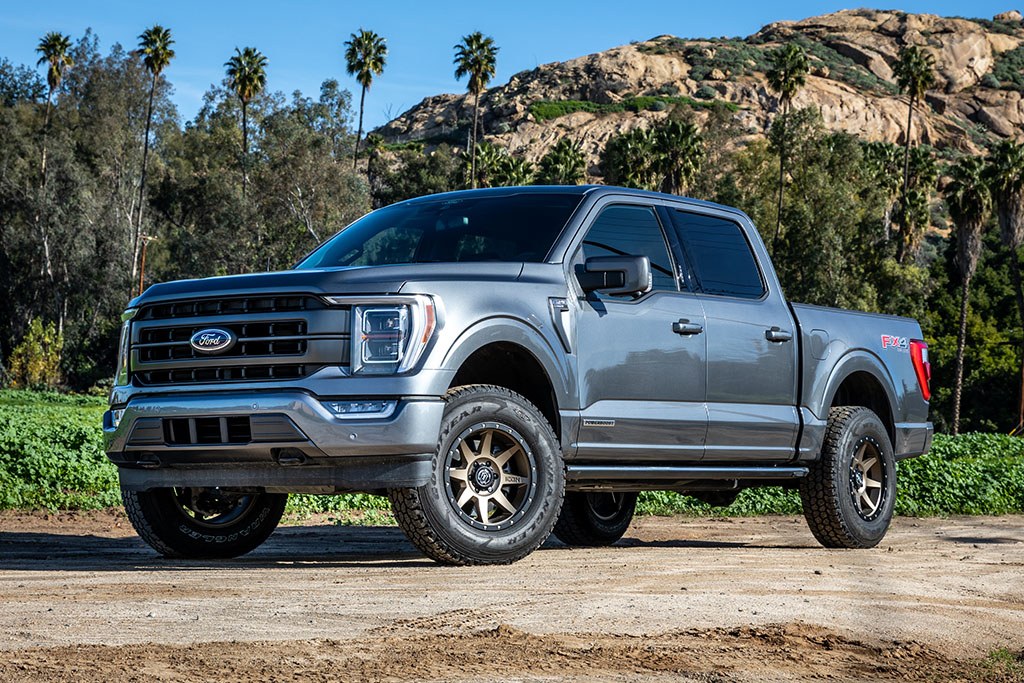

ICON Vehicle Dynamics V.S. Series 2-1/2 Inch coilover shocks are an incredible upgrade for the front end of 2021 to 2023 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3/4 to 3-1/2 Inch of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2-1/2 Inch shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is provided for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON rear 2.5 Aluminum Series CDEV shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.
Additional information
| Weight | 67 lbs |
|---|---|
| Dimensions | 31 × 17 × 7 in |
| Brand | ICON |
| Manufacturer Part Number | 91825E |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 127 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
