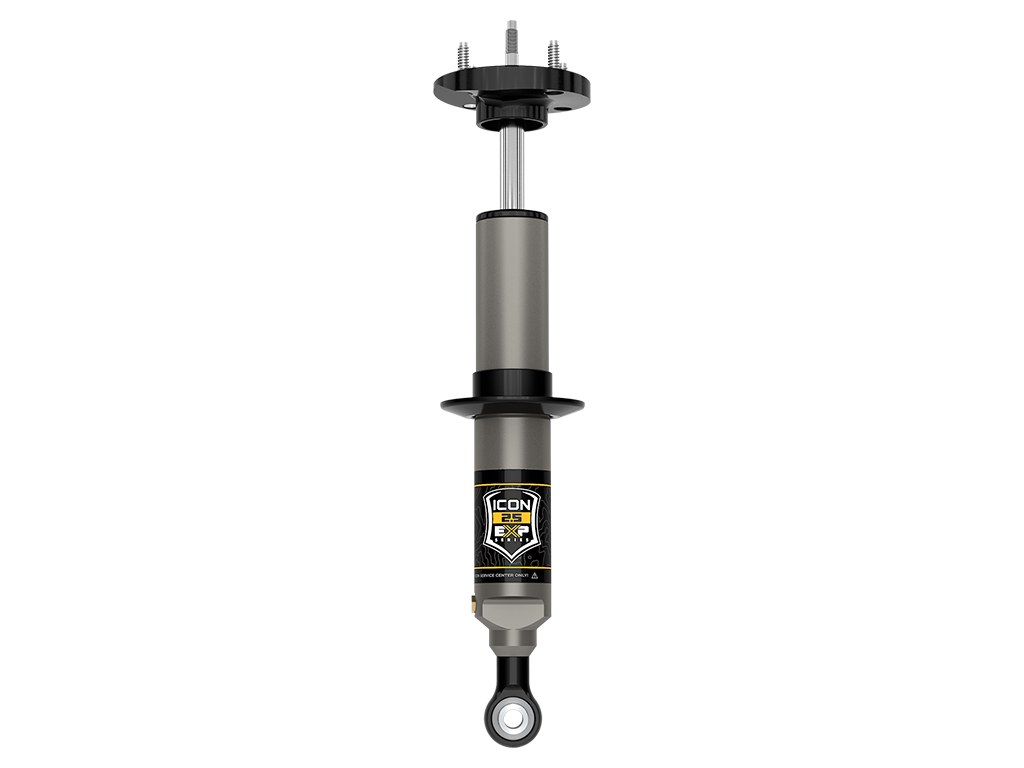

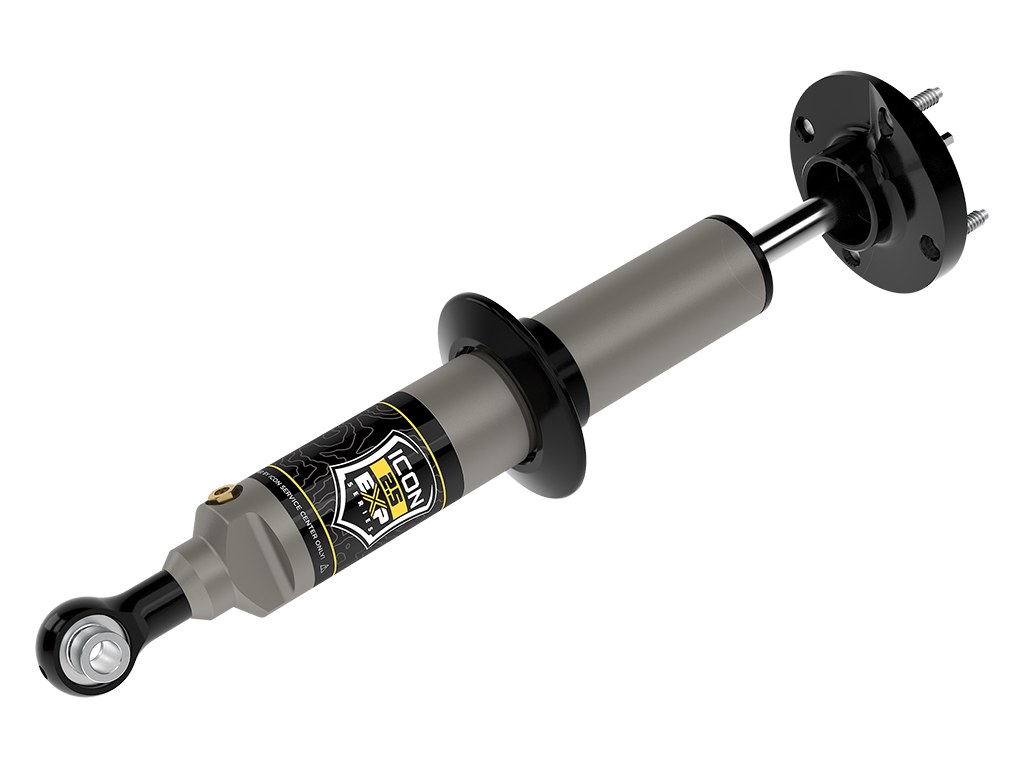

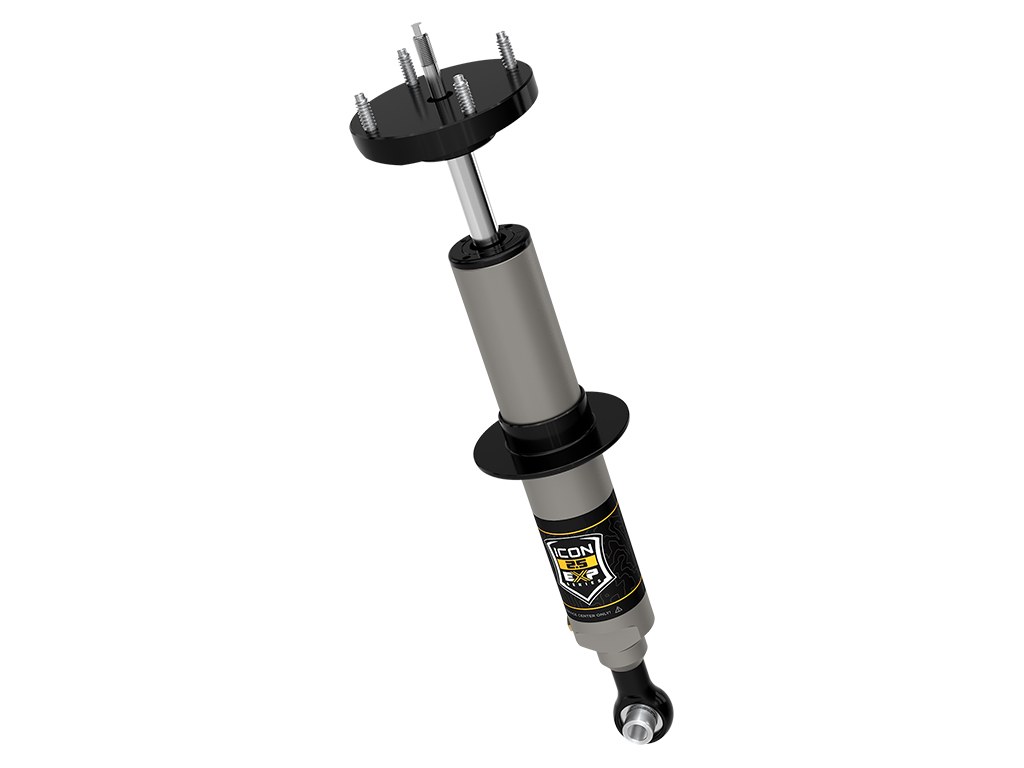

ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series, Non Adjustable Valving, 0 to 2-1/4 Inch Lift, Must Re-Use OE Coil Spring – 58655
$525.70
ICON Vehicle Dynamics Coil Over Shock Absorber, 2.5 Series – 58655
Description
Coil Over Shock Absorber; 2.5 Series; Non Adjustable Valving; 0 To 2-1/4 Inch Lift; Must Re-Use OE Coil Spring; Black/ Silver; Without Remote Reservoir; Single
Attributes:
- Adjustable: No
- Valving Type: Non Adjustable Valving
- Shock Type: Hydraulic
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 0 To 2-1/4 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Shock Body Color: Silver
- Shock Body Material: Aluminum
- Quantity: Single
- Includes Mounting Hardware: No
Features & Benefits:
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- Vehicle Specific Tuned For Superior Shock Damping And Control
- 2-1/2 Aluminum Series Shock With Internal Reservoir
- Adjustable Ride Heights From 0 To 2-1/4 Inch Of Front Lift Over Stock With The Use Of Snap Ring
- Utilizes Factory Coil And Coil Hardware
- Inverted Shaft Up Design Featuring 7/8 Inch Diameter, Induction Hardened, Chrome Plated Shaft
- Impact Extruded, Hard Anodized Aluminum Cylinder Offer Excellent Corrosion Resistance And Consistent Finish
- PTFE Lined Spherical Bearing For Extended Longevity And Minimal Deflection
- Fully Rebuildable And Re-Tunable
- Limited Lifetime Warranty
About Product:
EXP Series is based on ICON’s proven 2-1/2 Inch diameter Aluminum Series shock absorber, featuring a one-piece impact-extruded aluminum shock body. Hard anodizing provides a great-looking, consistent finish with superior resistance to abrasion and corrosion. The massive 7/8 Inch diameter shaft is induction hardened and chrome plated. 2007 to 2021 Toyota Tundra EXP shocks mount in a shaft-up orientation and include the upper shock mount and spring seat. The 6061-billet aluminum coil spring seat is CNC machined to fit the Tundra’s OE coil springs. A series of snap-ring grooves machined into the shock body provide easily-selectable front-end ride height adjustment from 0 Inch to 2.25 Inch of lift over stock. EXP Series shocks utilize a one-piece digressive piston design and are custom tuned for the Tundra in conjunction with their stock front coil springs to maximize damping performance and provide unsurpassed ride quality, on and off-road. The increased piston size and shock oil volume provided by the 2-1/2 Inch diameter aluminum body also provide superior heat dissipation compared to the smaller, steel bodied OE shocks, resulting in longer-lasting shock performance over prolonged use at higher speeds and through rougher terrain. For those who would like to further tune their suspension, EXP shocks are fully re-valvable (and rebuildable) by any qualified shock technician, with parts available from ICON.
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 32 × 6 × 5 in |
| Brand | ICON |
| Manufacturer Part Number | 58655 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 466 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
