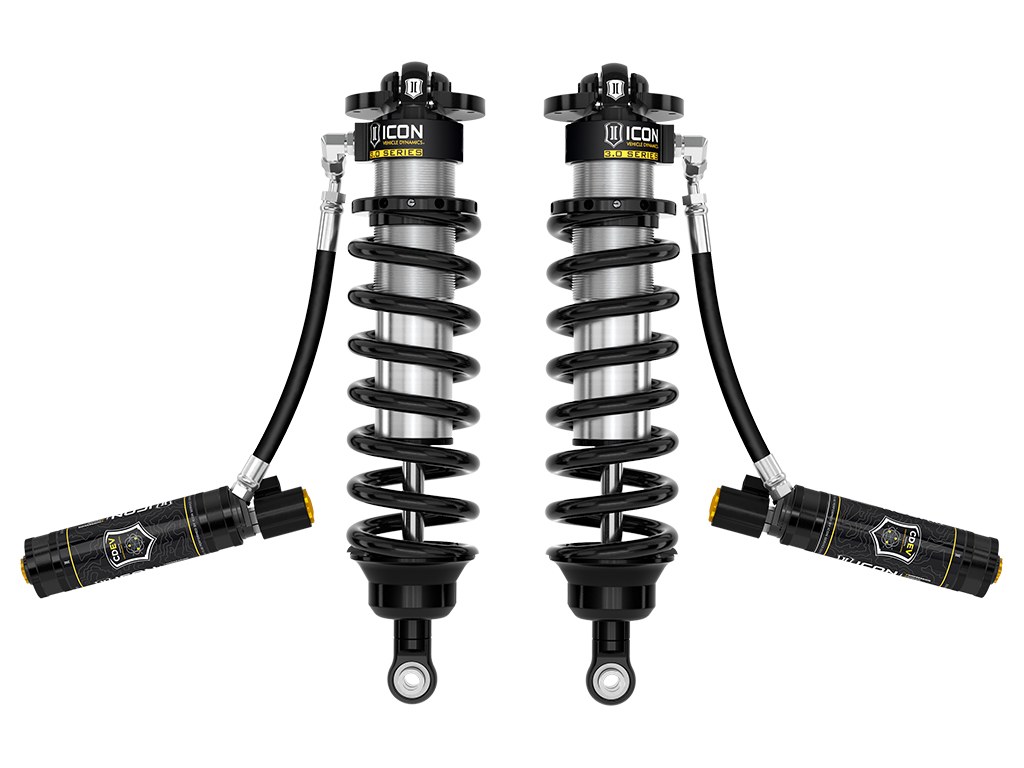

ICON Vehicle Dynamics Coil Over Shock Absorber, 3.0 Performance, Electronic Adjustable Valving, 1-1/4 to 3-1/2 Inch Lift, Pigtail Spring – 58775E
$3,890.65
ICON Vehicle Dynamics Coil Over Shock Absorber, 3.0 Performance – 58775E
Description
Coil Over Shock Absorber; 3.0 Performance; Electronic Adjustable Valving; 1-1/4 To 3-1/2 Inch Lift; Pigtail Spring; Black/ Gray; With Remote Reservoir; Set Of 2
Attributes:
- Adjustable: Yes
- Valving Type: Electronic Adjustable Valving
- Shock Type: Gas Charged
- Upper Mounting Type: Strut
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 1-1/4 To 4-1/2 Inch Lift
- Extended Height (IN): OEM
- Compressed Height (IN): OEM
- Shock Body Color: Black/ Gray
- Shock Body Material: Aluminum
- Quantity: Set Of 2
- Spring Style: Standard
- Spring Color: Black
- Spring Material: Steel
- Includes Mounting Hardware: Yes
Features & Benefits:
- Icon’s CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The Icon Intelligent Control
- 40 Percent Increase In Front Wheel Travel Over Stock
- Vehicle Specific Design And Tuning For Superior Shock Damping And Control
- 3 Inch Body Diameter For Increased Oil Volume And Larger Piston Area

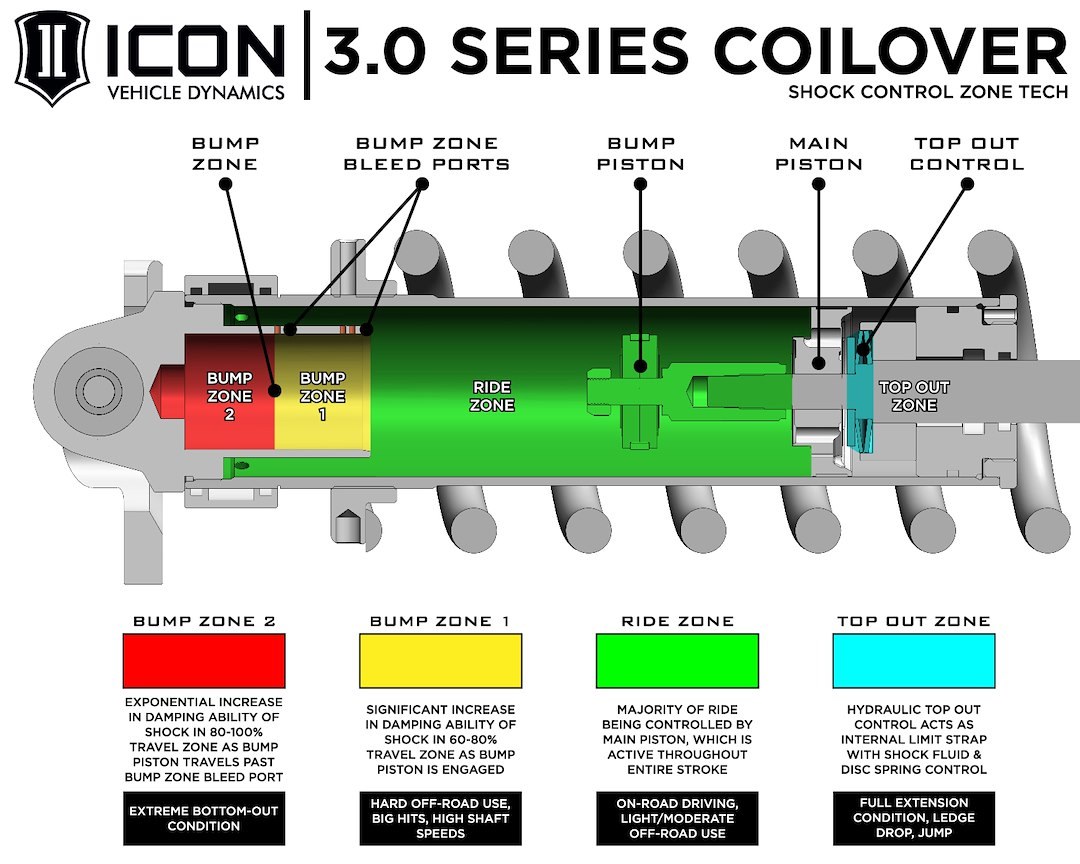

- Icon’s Multi-Stage, Tunable Hydraulic “Bump Zone” Exponentially Increases Bottom-Out Resistance In The Last 40 Percent Of Compression Travel
- CNC Machined 6061 Aluminum Components With A Black Anodized Finish
- PTFE Lined Spherical Bearings For Extended Longevity And Minimal Deflection
- 7/8 Inch Diameter Induction Hardened, Chrome Plated Shock Shafts
- Fully Rebuildable And Re-Tunable
- Limited 1 Year Warranty
About Product:
ICON’s 3.0 Series Coilovers with CDEV are designed to take the off-road capability of the truck to new levels by increasing wheel travel by up to 40 Percent and significantly improving the damping ability of the front shocks. 3.0 Series shocks boast 50 Percent more piston surface area in the ride zone of the shock’s travel and 100 Percent in the “Bump Zone”, compared to 2.5 Series shocks. This translates into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions. The multi-stage hydraulic Bump Zone featured in these 3.0 Series shocks exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. ICON’s exclusive Compression Damping Electronic Valves are included for actively dialing in your suspension performance. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. These 3.0 Series coilovers are designed as an OEM shock replacement, making installation a simple and straightforward bolt-on affair. First class ICON manufacturing processes and quality components are used to ensure these shocks function to their maximum potential without issue.
Additional information
| Weight | 78 lbs |
|---|---|
| Dimensions | 33 × 15 × 10 in |
| Brand | ICON |
| Manufacturer Part Number | 58775E |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 74 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
