ICON Vehicle Dynamics Leveling Kit Suspension, Stage 1, 2-1/2 to 3 Inch Lift, Coil Over Shock Absorber – K93161
$3,247.06
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 1 – K93161
Description

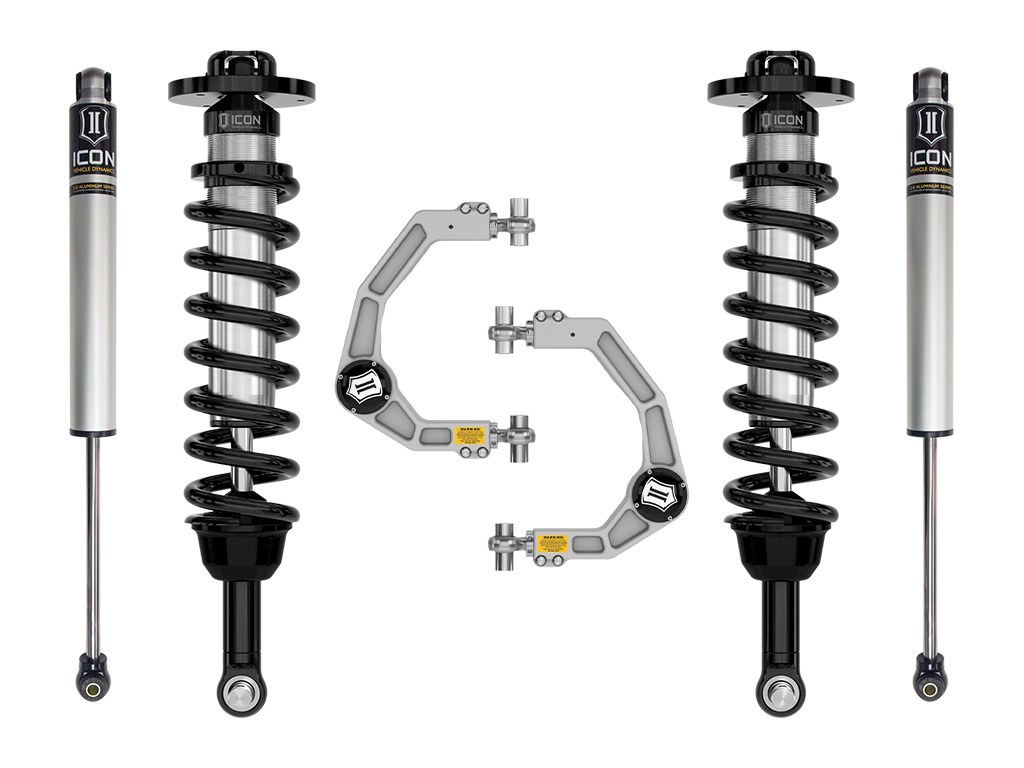

Leveling Kit Suspension; Stage 1; 2-1/2 To 3 Inch Lift; Coil Over Shock Absorber; With Coil Over Mounts/ Front Billet Upper Control Arms/ Rear Shock Absorbers/ Installation Hardware
Attributes:
- Lift Height: 2-1/2 To 3 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 34 x 12.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5
- Wheel Offset (MM): 6
- Color: Black Components/ Silver Shocks
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Adjustable Coilovers In Specific Length Offer 2-1/2 To 3 Inch Of Front Lift Height Over Stock
- Billet Upper Control Arms With Delta Joint Pro Ball Joints For Added Strength, Durability, And Alignment Spec Range With On-Vehicle Adjustability
- 20 Percent Increase In Wheel Travel And Improved Ride Quality Over Stock With No Change In Towing Capacity
- Vehicle Specific Tuned Front And Rear Shocks For Superior Damping And Vehicle Control
- Corrosion Resistant CAD Plated Coilover Shock Bodies With 7/8 Inch Shafts
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- High Strength Alloy CNC Machined Lower Bar Pins
- 2.0 Aluminum Body Rear IFP Shocks With 5/8 Inch Hardened Chromed Steel Shafts
- 100 Percent Bolt-On System, No-Drilling, Cutting, Or Welding Necessary For Install
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 1 system features vehicle-specific tuned 2-1/2 Inch coilover shocks in a specific length for a 20 Percent increase in front wheel travel over stock. These coilovers feature internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 2-1/2 To 3 Inch of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Billet aluminum Delta Joint PRO upper control arms not only add strength and durability, but help retain factory alignment spec range, offer caster/camber adjustment, and allow for the extra lift height this system provides. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 88 lbs |
|---|---|
| Dimensions | 40 × 15 × 7 in |
| Brand | ICON |
| Manufacturer Part Number | K93161 |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 6 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
