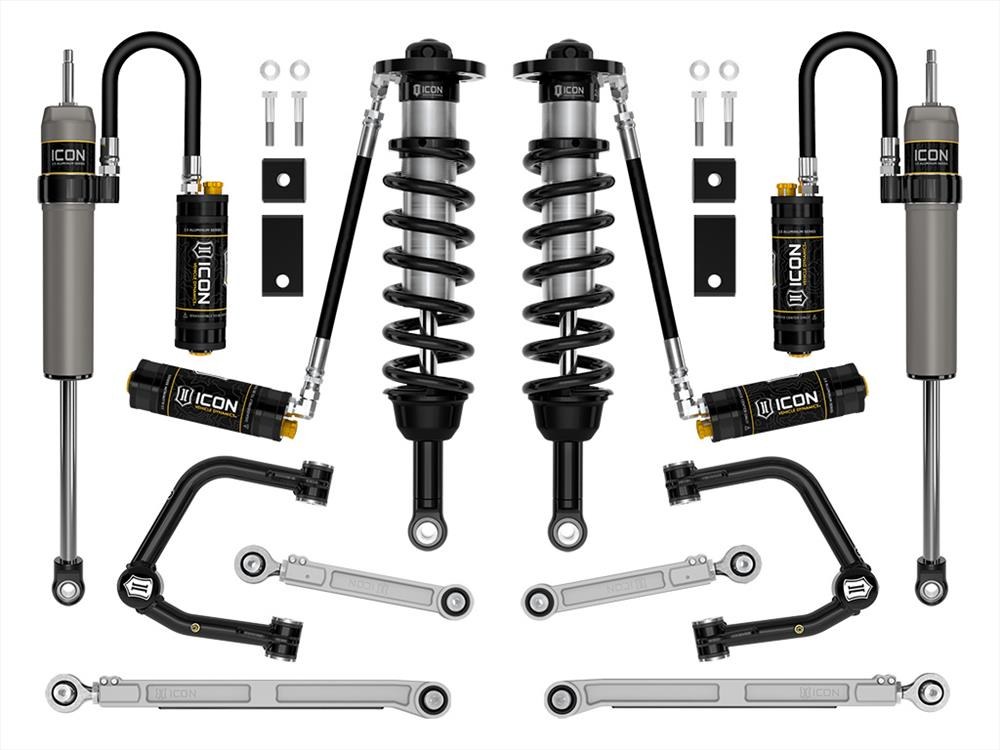

ICON Vehicle Dynamics Leveling Kit Suspension, Stage 10, 2 to 3-1/2 Inch Lift, Remote Reservoir Coil Over Shock Absorber – K53200T
$7,277.64
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 10 – K53200T
Description
Leveling Kit Suspension; Stage 10; 2 To 3-1/2 Inch Lift; Remote Reservoir Coil Over Shock Absorber; With Front Upper Tubular Control Arms/ Rear Upper And Lower Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 2 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35×12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- Adjustable Front Ride Heights From 2 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- All Shock Absorbers Equipped With CDC Valves For 10 Settings Of Compression Damping Adjustment, From Soft To Hard
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- Billet Rear Upper And Lower Links Improve Rear End Articulation And Allow For On-Vehicle Pinion Angle Adjustment
- 2-1/2 Aluminum Series Rear Remote Reservoir Shocks Provide Increased Performance, 20 Percent Increase In Wheel Travel, And Balanced Tune With Coilovers
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 10 complete suspension system for the 2022 to 2023 Toyota Tundra builds upon the Stage 9 system with the addition of billet aluminum adjustable upper and lower rear links. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. To compliment the billet aluminum rear links, a 2.5 Series CDCV remote reservoir front coilover shock and billet aluminum front upper control arm combo is provided along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks. This Stage 10 system features the 2022 to 2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 2 to 3-1/2 Inch of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2-1/2 Inch shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The provided ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
Additional information
| Weight | 159 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K53200T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 54 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
