ICON Vehicle Dynamics Leveling Kit Suspension, Stage 13, 2 to 3-1/2 Inch Lift, Remote Reservoir Coil Over Shock Absorber – K53203T
$9,491.36
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 13 – K53203T
Description

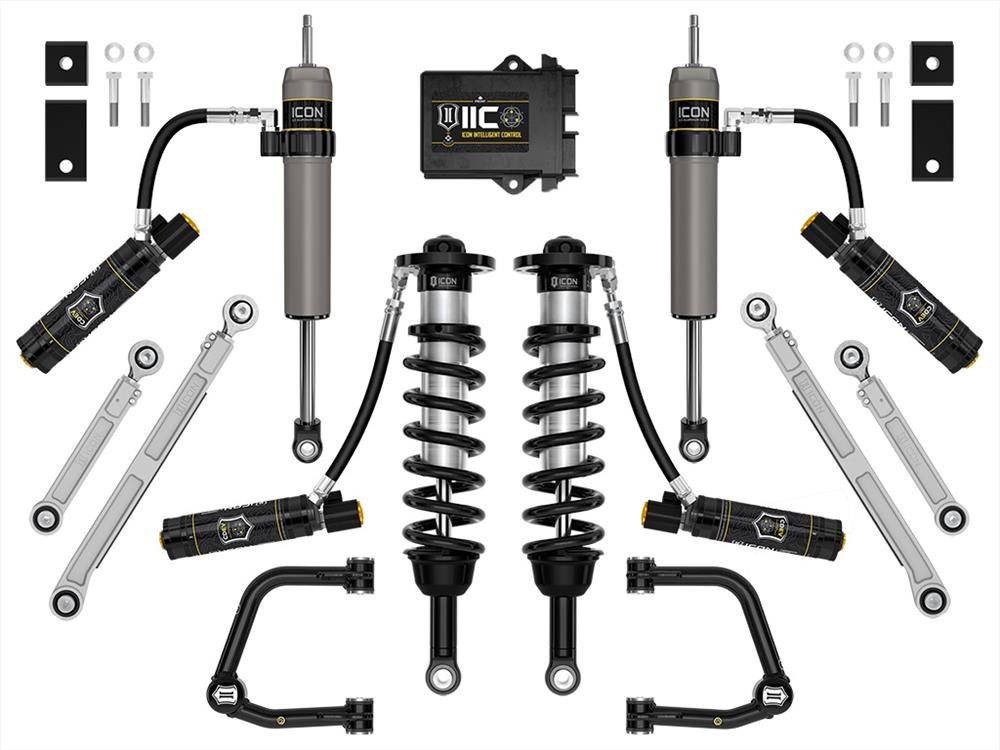

Leveling Kit Suspension; Stage 13; 2 To 3-1/2 Inch Lift; Remote Reservoir Coil Over Shock Absorber; With Front Upper Tubular Control Arms/ Rear Upper And Lower Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Electronic Dampening Control Computer/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 2 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35×12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Billet Aluminum UCAs For Added Strength, Durability, And On-Vehicle Caster And Camber Adjustment For Optimum Drivability
- Vehicle Specific Design For 2022 To 2023 Toyota Tundra
- 2.5 Series Front Coilovers With Remote Reservoirs For Superior Damping And Vehicle Control Along With Improved Shock Cooling
- ICON’s CDE Valve Technology Allows For In Vehicle Adjustment Of Compression Damping Settings And Active Adjustment Via The ICON Intelligent Control
- ICON Intelligent Control Uses Onboard Sensors To Monitor G-Forces And Movement Of Vehicle Chassis Along With User Defined Settings To Actively Make Near Instantaneous Compression Damping Changes
- UCAs Feature The Patented Delta Joint Pro With 90 Degree Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- 2.5 Aluminum Series Rear Remote Reservoir Shocks Provide Increased Performance And Balanced Tune With Coilovers
- Limited Lifetime Warranty
About Product:
The ICON Vehicle Dynamics Stage 13 complete suspension system for the 2022 to 2023 Toyota Tundra builds upon the Stage 12 system with the addition of billet aluminum adjustable upper and lower rear links. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. To compliment the billet aluminum rear links, a 2.5 Series CDEV remote reservoir front coilover shock and billet aluminum front upper control arm combo is provided along with a front sway bar drop kit and 2.5 Aluminum Series CDEV rear remote reservoir shocks. This Stage 13 system features the 2022 to 2023 Toyota Tundra VS 2.5 Series remote reservoir front coilovers equipped with CDE Valves. These adjustable coilovers allow up to 1-1/4 to 3-1/2 of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2-1/2 Inch shock body and increased piston area over stock components yield the maximum travel possible (up to 40 Percent increase over stock) along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.
Additional information
| Weight | 167 lbs |
|---|---|
| Dimensions | 39 × 15 × 9 in |
| Brand | ICON |
| Manufacturer Part Number | K53203T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 70 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
