ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2, 0 to 2 Inch Lift, Coil Over Shock Absorbers – K93092T
$3,113.73
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2 – K93092T
Description

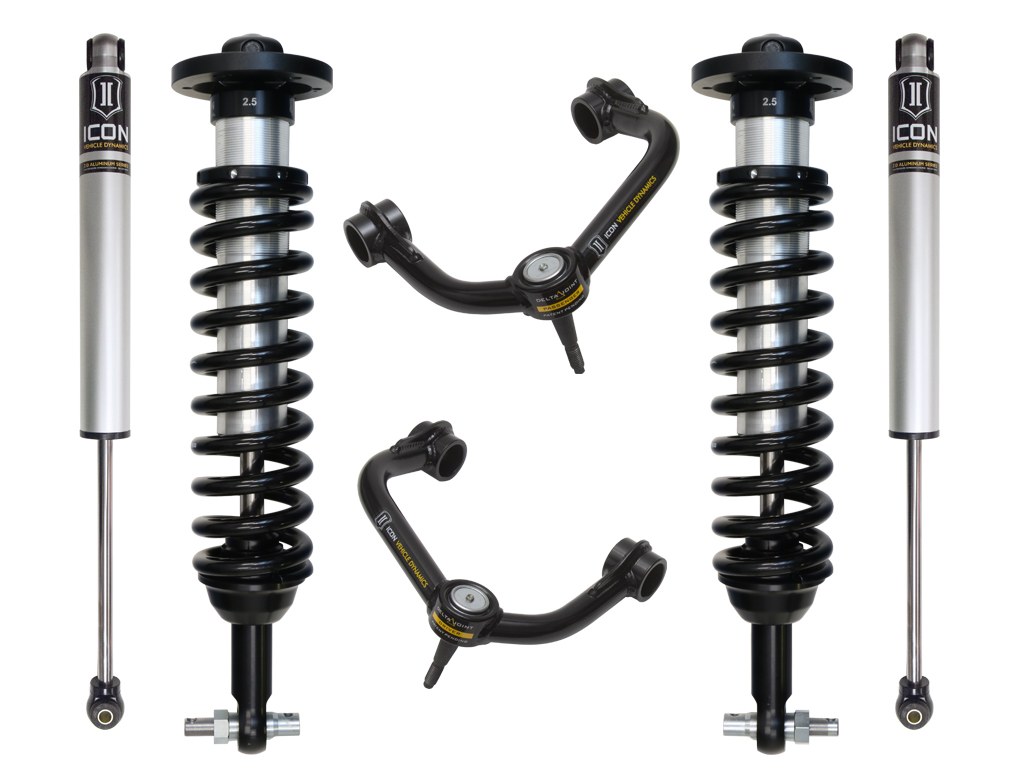

Leveling Kit Suspension; Stage 2; 0 To 2 Inch Lift; Coil Over Shock Absorbers; With Coil Over Mounts/ Front Upper Control Arms/ Rear Shock Absorbers/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 0 To 3 Inch Lift
- Type: Coil Over Shock Absorbers
- Maximum Tire Size: 33 x 11.50
- Includes Shock/Struts: Yes
- Minimum Wheel Diameter: 17
- Wheel Backspacing (IN): 5
- Wheel Offset (MM): 6
- Color: Black/ Silver
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Increased Wheel Travel And Ride Quality
- Decreased Body Roll
- Vehicle Specific Tuned Front And Rear Shocks For Superior Damping And Vehicle Control
- Coilovers Are Adjustable From 0-3 Inch Of Lift Height
- Shocks Are Fully Rebuildable And Revalveable
- Corrosion Resistant CAD Plated Shock Body With 7/8 Inch Shaft
- FK Rod End Bearings For Extended Longevity And Minimal Deflection
- CNC Machined 6061 Aircraft-Grade Aluminum Components
- Tubular Steel Upper Control Arm Features 1 Inch PTFE-Lined Stainless Uniballs And Greasable Bushings
- Limited Lifetime Warranty
About Product:
Icon vehicle dynamics suspension systems are designed to dramatically increase the on and off-road ride quality. Icon engineers primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, icon engineers researched each component of the new ranger platform’s suspension and addressed any areas where performance could be extracted. The stage 2 (billet) system includes vehicle-specific tuned, extended travel 2.5 series coilover shocks featuring an internal reservoir for exceptional cooling properties and icon-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0 To 2 Inch allowing the use of larger, more aggressive wheel and tire combinations. Icon 2.0 aluminum series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The icon vehicle dynamics stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 87 lbs |
|---|---|
| Dimensions | 40 × 12 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K93092T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 221 vehicles.
