ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2, 0 to 3-1/2 Inch Lift, Coil Over Shock Absorber – K93202T
$2,496.94
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2 – K93202T
Description

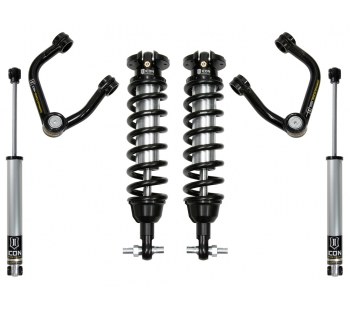

Leveling Kit Suspension; Stage 2; 0 To 3-1/2 Inch Lift; Coil Over Shock Absorber; With Coil Over Mounts/ Rear Shock Absorbers/ Front Tubular Upper Control Arms/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 0 To 3-1/2 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 285/70
- Includes Shock/Struts: Yes
- Wheel Backspacing (IN): 6
- Wheel Offset (MM): 31.75
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:
- Height-Adjustable Coilovers Provide A Range Of 0-3.5 Inch Of Front Lift Height
- Increased Lift Height Allows For Fitment Of Larger And More Aggressive Tires
- 35 Percentage Increase In Front Wheel Travel
- Shocks Are Fully Rebuildable And Revalvable
- Corrosion Resistant CAD Plated Coilover Shock Body With 7/8 Inch Shaft
- Upper Control Arms Allow For Additional Wheel Travel (When Paired With Extended Travel Coilovers) While Improving Suspension Geometry For Predictable Handling
- CNC Machined 6061 Billet Aluminum Upper Control Arms Allow For On-Vehicle Camber And Caster Adjustment
- Direct Bolt-In Design Makes For A Simple And Straightforward Installation
- Limited Lifetime Warranty
About Product:
ICON Vehicle Dynamics 2019-UP Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 2 (Tubular) system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5 Inch allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-UP Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Additional information
| Weight | 78 lbs |
|---|---|
| Dimensions | 40 × 12 × 8 in |
| Brand | ICON |
| Manufacturer Part Number | K93202T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 60 vehicles.
| Year | Make | Model | Trim | Engine | Notes |
|---|---|---|---|---|---|
| Loading fitment... | |||||
