ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2, 2 to 3-1/4 Inch Lift, Remote Reservoir Coil Over Shock Absorber – K53212T
$9,489.54
ICON Vehicle Dynamics Leveling Kit Suspension, Stage 2 – K53212T
Description

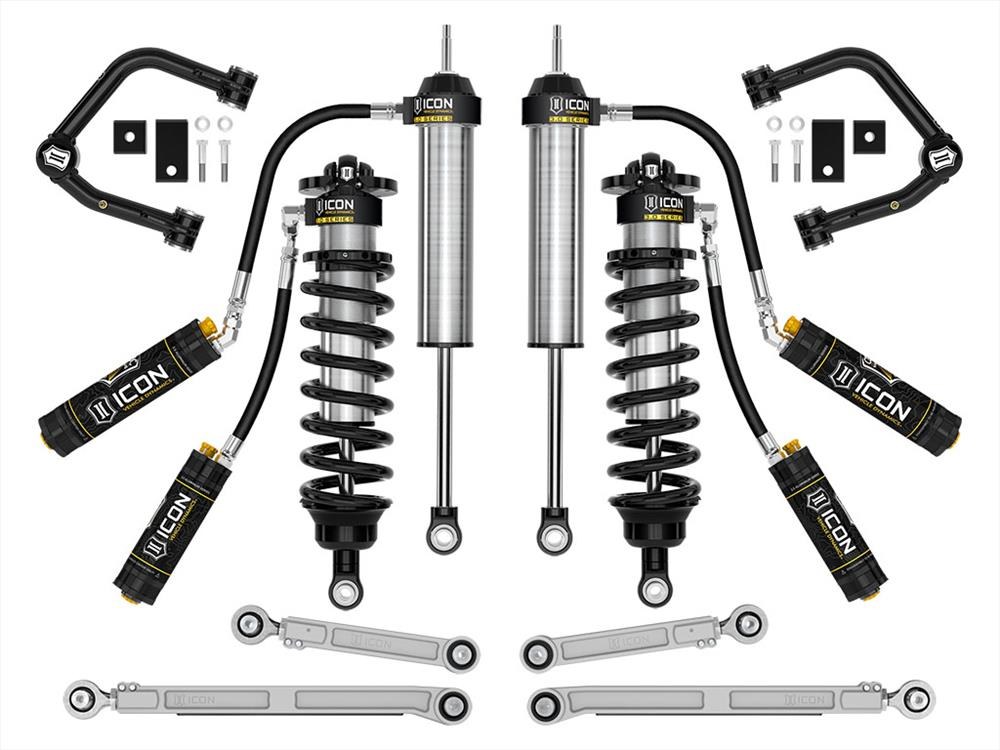

Leveling Kit Suspension; Stage 2; 2 To 3-1/4 Inch Lift; Remote Reservoir Coil Over Shock Absorber; With Front Upper Tubular Control Arms/ Rear Upper And Lower Control Arms/ Coil Over Mounts/ Springs/ Rear Remote Reservoir Shock Absorbers/ Stabilizer Bar Drop/ Installation Hardware
Attributes:
- Amount Raised Or Lowered: 2 To 3-1/4 Inch Lift
- Type: Coil Over Shock Absorber
- Maximum Tire Size: 35×12.50
- Includes Shock/Struts: Yes
- Material: Aluminum
- Estimated Install Time (Hours): 2
Features & Benefits:

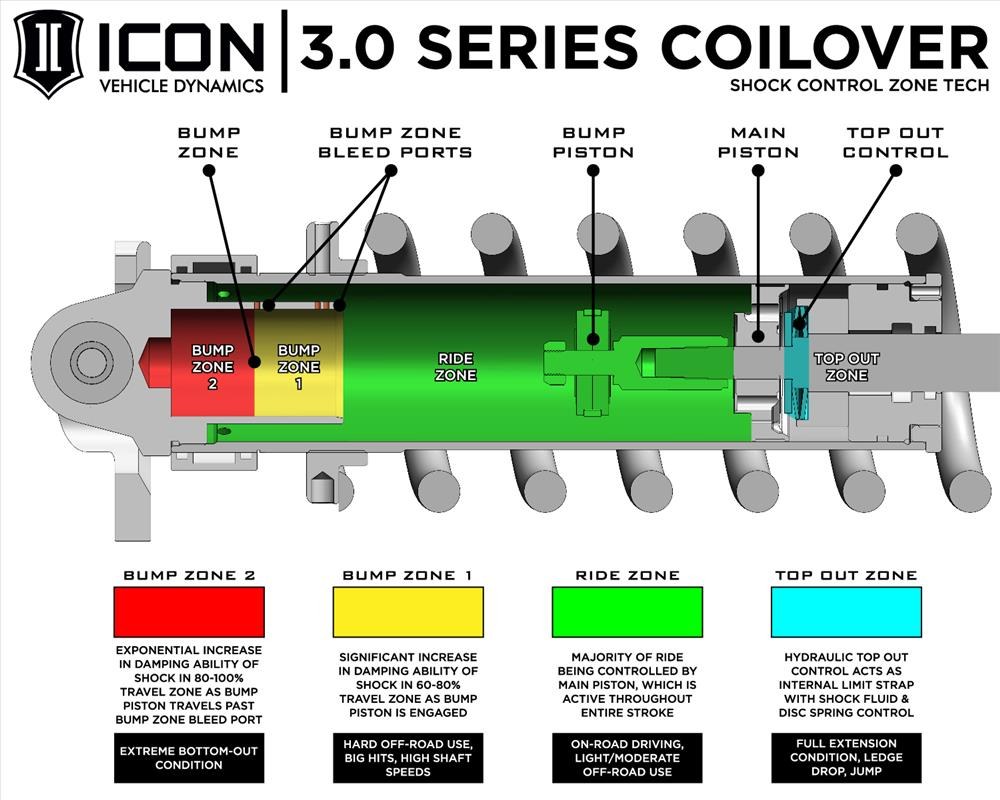

- 3.0 Series Front Coilovers With ICON’s Multi-Stage, Tunable Hydraulic “Bump Zone”
- Adjustable Front Ride Heights From 1-1/4 To 3-1/2 Inch Of Front Lift Over Stock When Used With Provided Billet Aluminum UCAs
- All Shock Absorbers Equipped With CDC Valves For 10 Settings Of Compression Damping Adjustment, From Soft To Hard
- Tubular UCAs For Added Strength, Durability, And Alignment Correction For Better Drivability
- UCAs Feature The Patented Delta Joint Pro With 90 Degrees Of Total Articulation
- Provided Sway Bar Drop Brackets Reduce Bind In OE Sway Bar Links
- Allows For Up To 40 Percent Increase In Front Wheel Travel Over Stock Without Overstressing OE Components
- Billet Rear Upper And Lower Links Improve Rear End Articulation And Allow For On-Vehicle Pinion Angle Adjustment
- 2-1/2 Aluminum Series Rear Remote Reservoir Shocks Provide Increased Performance, 20 Percent Increase In Wheel Travel, And Balanced Tune With Coilovers
- Limited Lifetime Warranty
About Product:

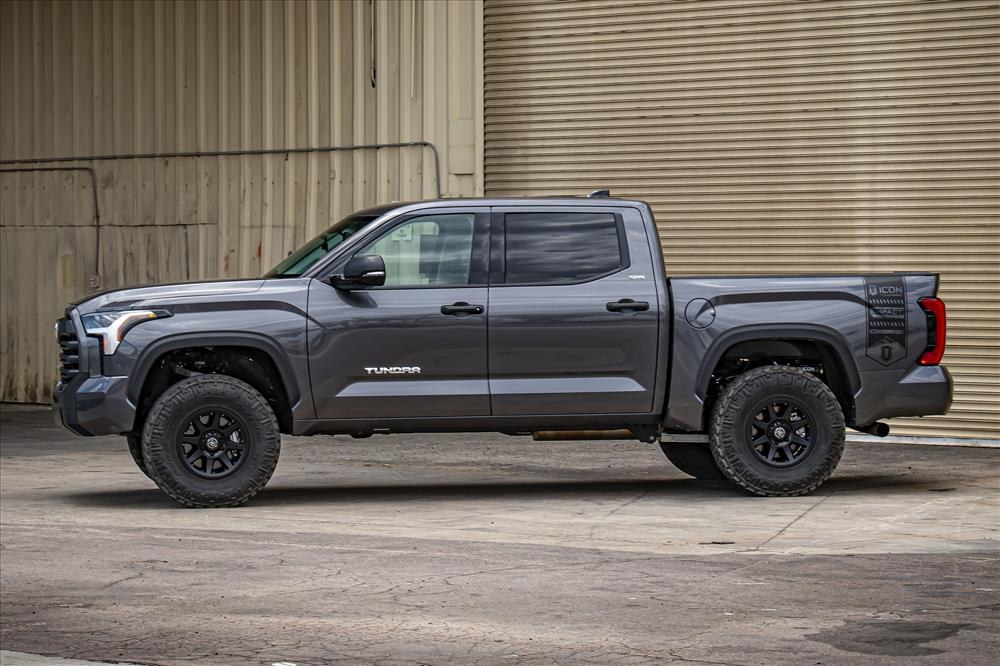

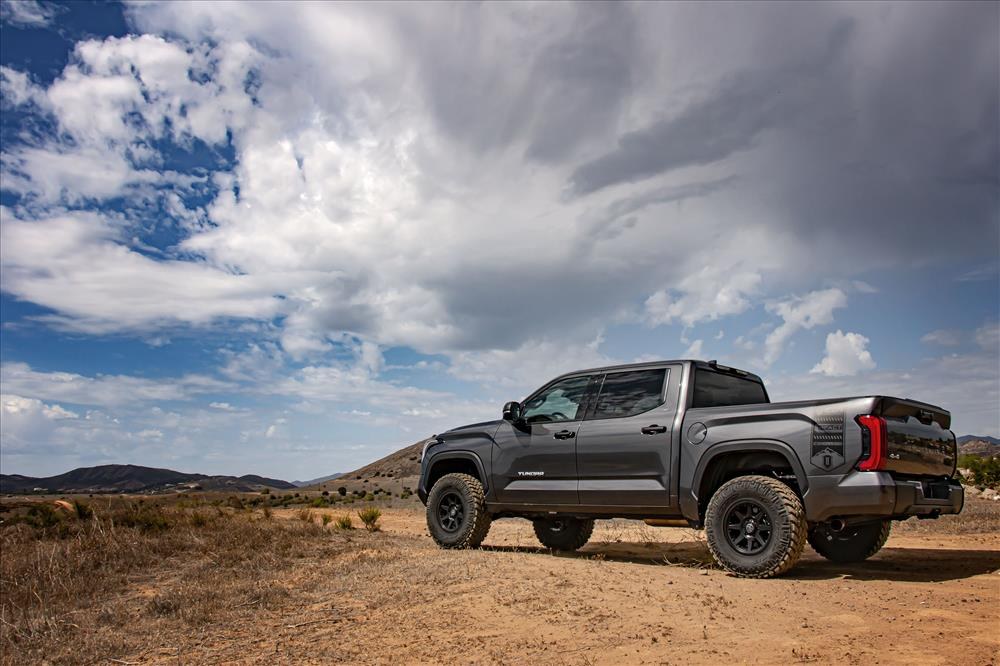

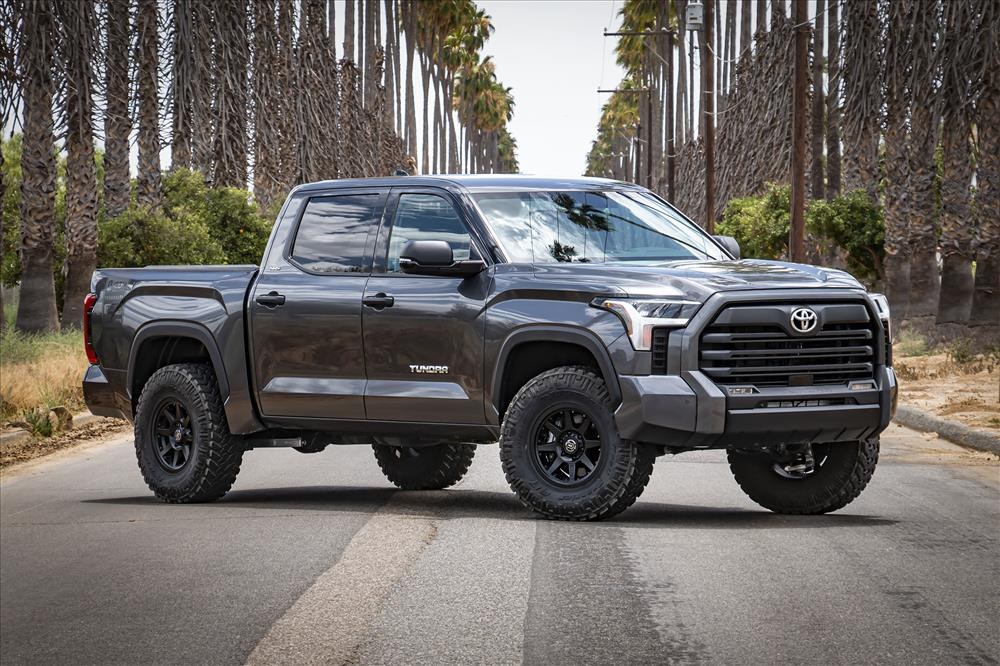

The ICON Vehicle Dynamics Stage 2 3.0 complete suspension system for the 2022 to 2023 Toyota Tundra builds upon the Stage 1 3.0 suspension system with the upgrade to 3.0 Series rear remote reservoir shocks with CDCV. To compliment the 3.0 Series rear remote reservoir shocks, 3.0 Series CDCV front coilovers are provided along with billet front upper control arms, a billet rear upper/lower link combo, and a front sway bar drop kit. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35 Inch tires. This Stage 2 system features the 2022 to 2023 Toyota Tundra VS 3.0 Series remote reservoir front coilovers equipped with CDC Valves. These adjustable coilovers allow up to 2 to 3-1/4 Inch of lift height adjustability over stock when using the ICON billet front upper control arms, allowing the use of larger, more aggressive wheel and tire combinations. The larger 3.0 Series shocks offer 50 Percent more piston surface area in the ride zone of the shock’s travel, and 100 Percent in the “Bump Zone”, compared to 2.5 Series shocks. The multi-stage hydraulic Bump Zone exponentially increases bottom-out resistance as the shock travels through the last 40 Percent of travel, keeping vehicle dynamics in check during those hard hits or unexpected obstacles. The provided ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Additionally, ICON’s Vehicle-specific shock length yields the maximum travel possible (up to 40 Percent increase over stock), all translating into increased stability and vehicle control at the extremes of off-road use, with benefits also making themselves apparent in on-road driving conditions.
Additional information
| Weight | 152 lbs |
|---|---|
| Dimensions | 36 × 31 × 13 in |
| Brand | ICON |
| Manufacturer Part Number | K53212T |
Vehicle Fitment
This part fits the vehicles listed below. Always confirm fitment for your exact vehicle before ordering.
This part is compatible with 54 vehicles.
| Year | Make | Model | Trim | Engine |
|---|---|---|---|---|
| Loading fitment... | ||||
